DAEWOO M-150 BL2
HEATING AND VENTILATION SYSTEM 7A – 25
Installation Procedure

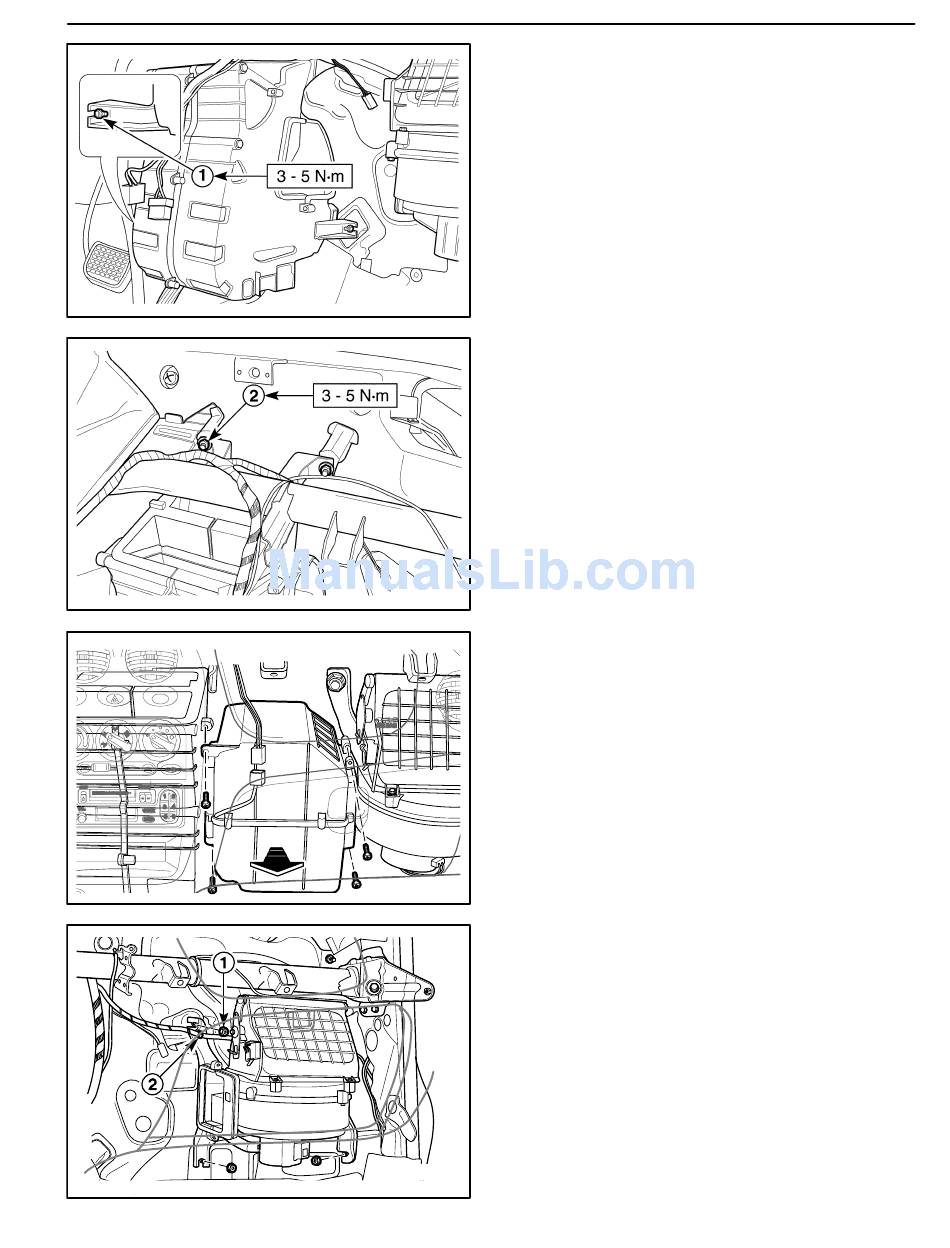

1. Install the heater module with the nuts.
Tighten
Tighten the heater module lower nuts to 3–5 NSm
(27–44 lb-in) (1).
Tighten the heater module upper nuts to 3–5 NSm
(27–44 lb-in) (2).
2. Install the evaporator on the vehicle equipped with
A/C. Refer to Section 7B, Manual Control Heating,
Ventilation, and Air Conditioning System.
3. Install the heater module–to–blower module connec-
tion tube on the vehicle not equipped with A/C with
D18A527B
the screw.
4. Install the instrument panel and the lower tie bar. Re-
fer to Section 9E, Instrumentation/Driver Information.
5. Connect the heater hoses to the heater module. Re-
fer to "Heater Hoses" in this section.
D18A528B

BLOWER MODULE

(Left–Hand Drive Shown, Right–Hand
Drive Similar)
Removal Procedure
1. Remove the glove box from the instrument panel. Re-
fer to Section 9E, Instrumentation/Driver Information.
2. Remove the heater module–to–blower module con-
nection tube on the vehicle not equipped with A/C.
Refer to "Heater Module" in this section.
3. Remove the evaporator on the vehicle equipped with
A/C. Refer to Section 7B, Manual Control Heating,
D108A529
Ventilation, and Air Conditioning System.
4. Remove the blower resistor. Refer to "Blower Resis-
tor" in this section.
5. Disconnect the blower motor connector. Refer to
"Blower Motor and Cooling Hose" in this section.
6. Remove the blower module.
D Remove the nuts (1).
D Disconnect the wiring harness (2).
D108A530
