Figure 33-15: Miscellaneous Buffer Polarity
DAI System Interrupt Controller (SIC)
The DAI module incorporates a system interrupt controller (SIC) which is connected to the SEC and GIC as seen
in the DAI System Interrupt Controller figure.

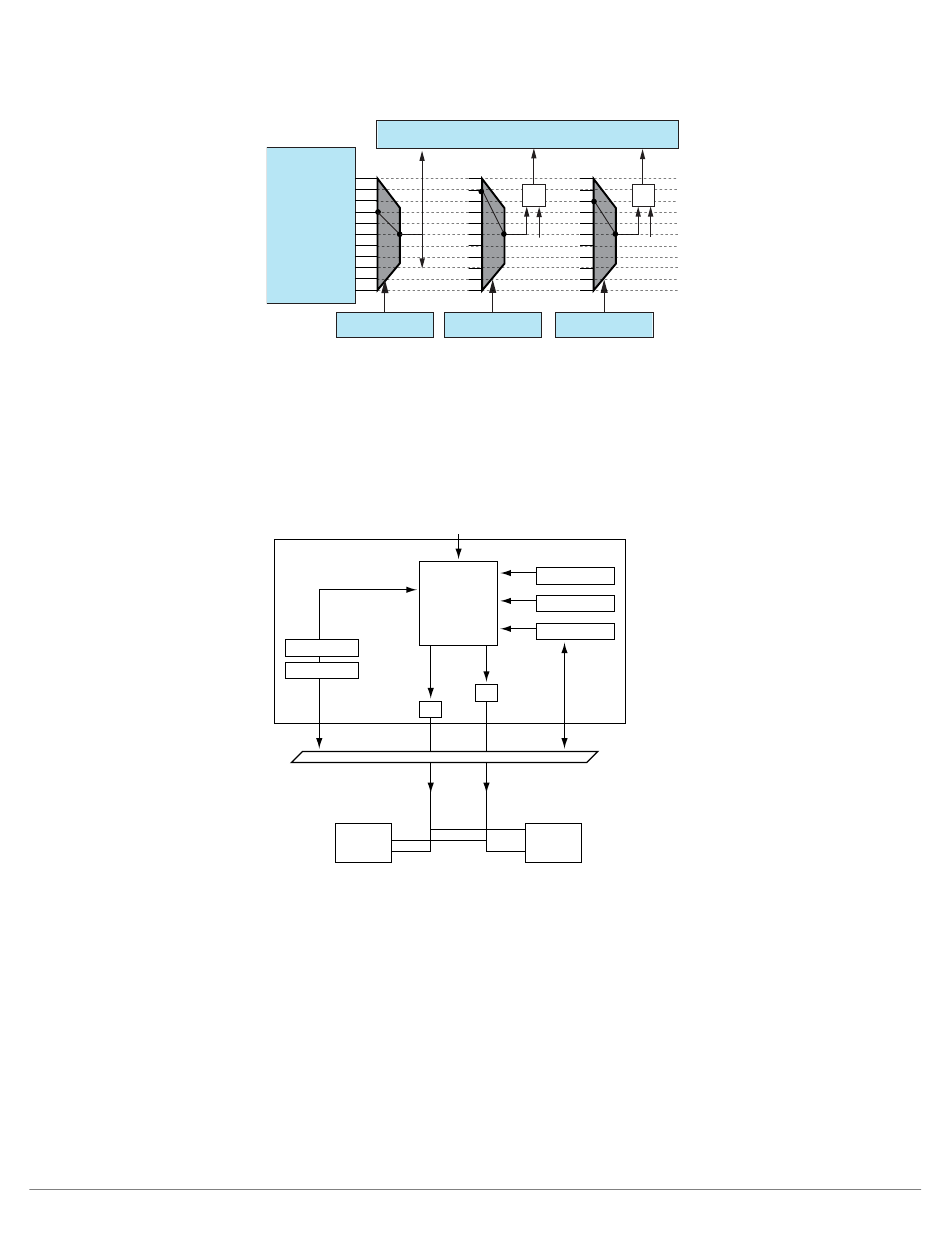

Figure 33-16: DAI System Interrupt Controller
The DAI has its own system interrupt controllers that indicate to the core when DAI audio peripheral-related events
have occurred. Since audio events generally occur infrequently relative to the SHARC core, the DAI interrupt con-
troller reduces all of its interrupts onto two interrupt signals within the core's primary interrupt systems. One inter-
rupt is mapped with DAI low priority. The second interrupt is mapped with DAI high priority. This configuration
allows programs to broadly indicate priority. In this way, the DAI SIC provides 32 independently configurable sour-
ces or channels. The output bus interrupt signals are logically OR'ed into one interrupt line and fed to the interrupt
controller logic of the core.
Three registers are used to configure the DAI interrupt controller. Each of the 32 interrupt sources can be independ-
ently configured to trigger on a rising edge, falling edge, both edges, or neither edge of an incoming signal. All DAI
interrupt control registers are memory-mapped registers and are accessed through the peripheral bus.
