ADSP-SC58x SINC Register Descriptions
Status Register
The register indicates status for SINC output saturation, amplitude and duration limits, overload
SINC_STAT
conditions, and data transfer errors.
GLIM0 (R)
Group 0 Limit Status
GSAT0 (R)
Group 0 Saturation Status
PCNT0 (R/W1C)
Primary (Filter) Count for Group 0 Status
FOVF0 (R/W1C)
FIFO Overflow for Group 0 Status
PFAB0 (R/W1C)
Primary (Filter) Fabric Error for Group
0 Status
GLIM1 (R)
Group 1 Limit Status
GSAT1 (R)
Group 1 Saturation Status
PCNT1 (R/W1C)
Primary (Filter) Count for Group 1 Status
FOVF1 (R/W1C)
FIFO Overflow for Group 1 Status
PFAB1 (R/W1C)
Primary (Filter) Fabric Error for Group
1 Status
PSAT3 (R/W1C)
Primary (Filter) 3 Saturation Status
PSAT2 (R/W1C)
Primary (Filter) 2 Saturation Status

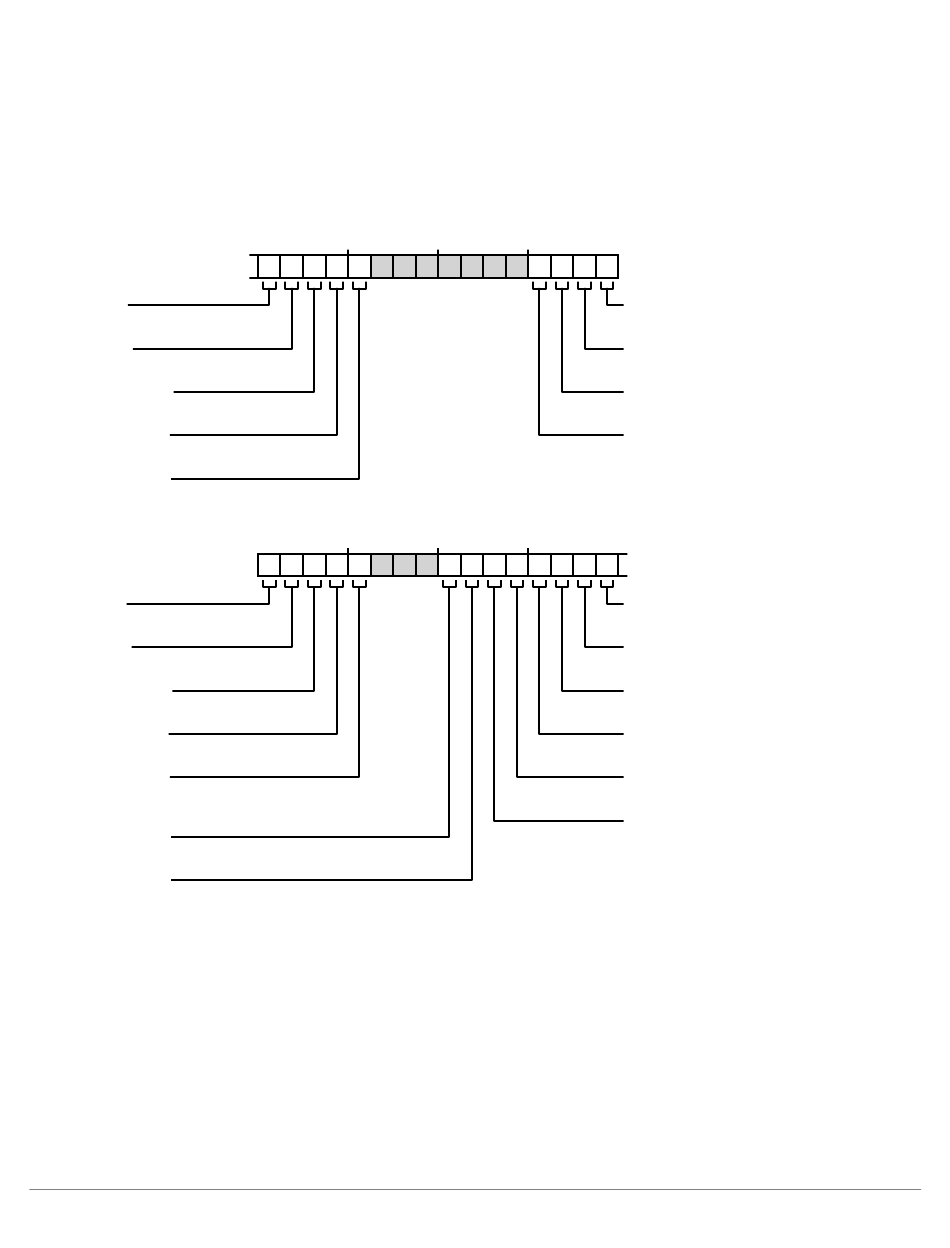

Figure 32-29: SINC_STAT Register Diagram
32–52
15 14 13 12 11 10 9 8
0 0 0 0 0 0 0 0
31 30 29 28 27 26 25 24
0 0 0 0 0 0 0 0
ADSP-SC58x/ADSP-2158x SHARC+ Processor Hardware Reference
7 6 5 4 3 2 1 0
0 0 0 0 0 0 0 0
23 22 21 20 19 18 17 16
0 0 0 0 0 0 0 0
MIN0 (R/W1C)
Minimum for Secondary Filter 0 Status
MIN1 (R/W1C)
Minimum for Secondary Filter 1 Status
MIN2 (R/W1C)
Minimum for Secondary Filter 2 Status
MIN3 (R/W1C)
Minimum for Secondary Filter 3 Status
MAX0 (R/W1C)
Maximum for Secondary Filter 0 Status
MAX1 (R/W1C)
Maximum for Secondary Filter 1 Status
MAX2 (R/W1C)
Maximum for Secondary Filter 2 Status
MAX3 (R/W1C)
Maximum for Secondary Filter 3 Status
PSAT0 (R/W1C)
Primary (Filter) 0 Saturation Status
PSAT1 (R/W1C)
Primary (Filter) 1 Saturation Status
