Pre-Set The Raven Control Module (Rcm) - Goldacres G6 Crop Cruiser 2 Series Operator's Manual

Optional Raven Control screen (CR7) fitted in the cabin.
Pre-Set the Raven Control
Module (RCM)
The Raven Control Module (RCM) (Spray Rate
Controller) is pre-set and tested for spraying
applications prior to delivery.
However, it is recommended that all settings
and operation be checked and tested for the
accuracy prior to spraying applications.
It is the operator's responsibility to correctly
operate all controller and sprayer functions at
all times.
GA8701177 REV 2 APRIL 2022

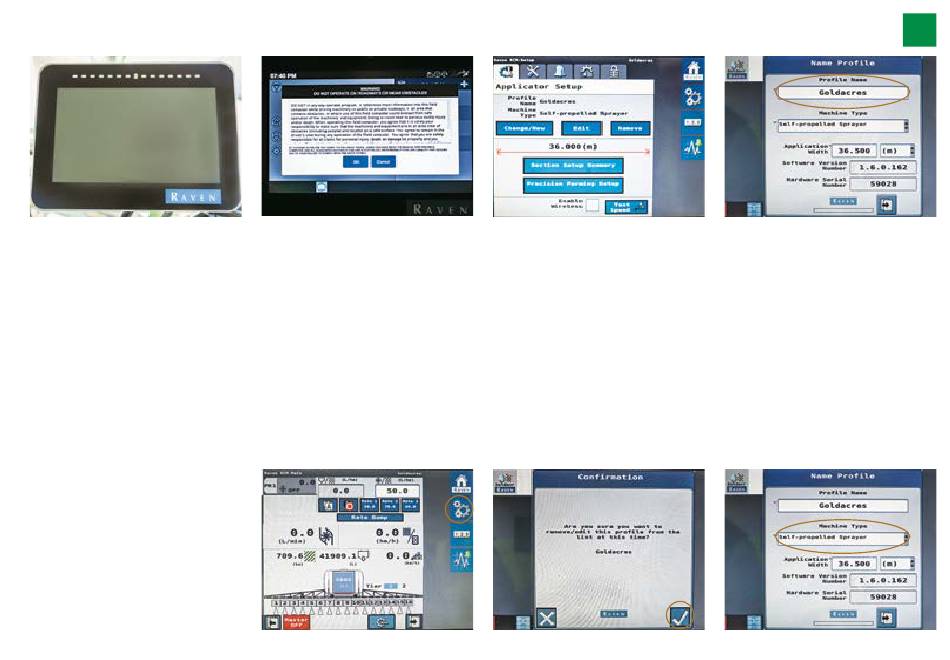

Opening Warning screen of the optional Raven CR7.
To Pre-Set the RCM:
1 Start the engine.
2
"WARNING DO NOT OPERATE ON
appears
ROADWAYS OR NEAR OBSTACLES"
on the optional Raven CR7 screen.
Press the OK touch button and the home
screen appears.
3 Press the 'Set-Up' touch button on the
home screen, and the 'Applicator Setup'
screen appears.
Press the Set-Up touch button on the home screen.
Setting Up – Preparation for Use
Press the 'Edit' touch button.
4 Press the 'Edit' touch button or 'Change/
New' touch button and a 'Confirmation'
screen appears.
5 Press the 'Tick' (Next) touch button and
the 'Name Profile' screen appears.
Press the 'Tick' (Next) touch button.
Select & press 'Self-Propelled Sprayer'
6 Press the 'Profile Name' touch button and
an alphabetical keypad appears.
Press the touch buttons to create a profile
name. eg. 'Goldacres', then press the
Next touch button.
The screen returns to the Name Profile
screen with "Goldacres' displayed.
7 Press the 'Machine Type' touch button
and a machine type menu appears.
Press the 'Machine Type' touch button.
