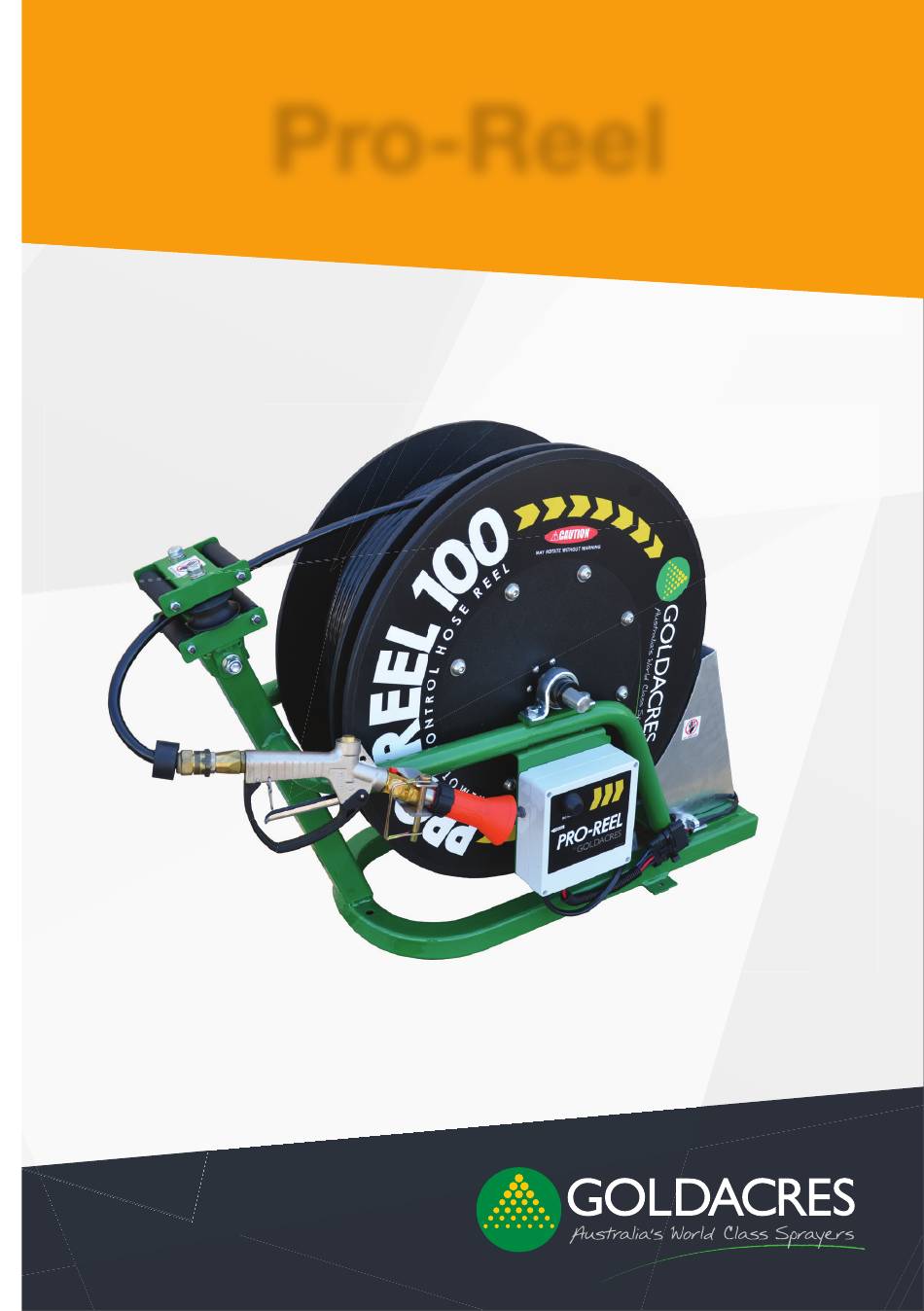

- Page 1 Pro-Reel Operator’s & Parts Manual 50m - GA4904585 100m - GA4904584 150m - GA4906985 GA8700158 REV 6 MAY 17...
-
Page 2: Table Of Contents
Pro-Reel Assembly . . . . . . . . . . . . . . . . . . .13... -
Page 3: General Information
See page 11 General Hose size 10mm Hose length 50,100,150 metres The Pro-Reel hose reel is electrically driven Pump Min 20 l/min with 12V from the vehicle battery. Up to requirements 150 metres of hose can be fitted and a gunjet provides for even and accurate spray application. -
Page 4: Key Features
Key Features No Part No Function Hose Feeder GA5063500 Electrical Control Box, Antenna, Remote and loom (complete assly) GA5052970 Electrical motor GA5023475 Spray Gun V Belt Adjusters GA5061710 Remote Aerial Anderson Plug GA 5061715 Remote Control Black GA5061720 Remote Control Grey GA5072390 PCB Board (457PN3-1000) GA5072380... -
Page 5: Set Up
Reel. 3. Check all bolts and nuts to make sure they are tight and secure. 4. The Pro-Reel hose reel is operated by remote control and when fitted should be in a location which is easily accessible with clearance between the reel and all... -
Page 6: Instructions
Instructions CAUTION: Keep hands, feet,hair and clothing away from all moving parts to prevent injury. NOTE: Hose will un-wind with a small amount of restriction when pulled out by hand Operation 1. While connected to a power source, the unit is always powered. 2. -
Page 7: Goldacres Pro-Reel ® Single Reel Controller
Figure 2: On the left is an inside view of the Pro-Reel® Control Box showing the parts relevant to Figure 2: On the left is an inside view of the Pro-Reel® Control Box showing the parts relevant to setup. -
Page 8: Supplying Power To The Remote Unit And The Pro-Reel ® Control Box
SW2, in the The Pro-Reel® control box should already control box until the control box’s red light be suitably confi gured with 12V DC vehicle turns off , then release the push-button battery power. -
Page 9: Restoring A Control Box To Factory Default
This list is only intended as a basic This completes the setup and test of a hand- guide to resolve any minor issues or to simply held remote unit with a Pro-Reel® control box. locate potentially major issues that may result If there are problems from wear of the equipment. -
Page 10: Contact
Pro-Reel® control box. refitting the control box cover. Each remote unit button must control a... -
Page 11: Maintenance
Maintenance To ensure that you get the most from your hose reel, it is important to regularly maintain and service. Always use quality multipurpose lubricants. Daily Weekly Monthly Yearly Check hose and filters Check battery condition Check guards ... -
Page 12: Troubleshooting
To ensure that you receive the best possible service, it is recommended that you exhaust all applicable troubleshooting solutions shown prior to calling your dealer, or Goldacres, for service advice. Problem Possible Cause Possible Remedy... -
Page 13: Pro-Reel Assembly
Pro-Reel Assembly Plate, Bearing Mount, Pro Reel External compression Fitting inc olive 1/2Tx1/2BSPF C073 There is mounting holes drilled in the frame of the Pro-Reel to help in securing the unit to a customers setup. TITLE: 2015 1 Material Drawn By: UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE UNTOL. -
Page 14: Hose Guide Assembly
Bolt M10 x 65 ZP GR8.8 GA5000117 Washer 10mm SS Heavy duty GA5011139 Bolt M10 x 100 Gr4.6 ZP GA5023280 Shoulder Bolt Ø8 x 100 x M6 Thread GA5048115 Nut M6 Nyloc ZP 1-3 MO GOLDACRES MITCH PH: 03 FAX: 0... -
Page 15: Control Box, Antenna & Gun Mount
Drawing Chec GA5049465 Nut M3 Nyloc SS ONE DEC. PL. ± 0.10 THIS DRAWING REMAINS THE PROPERTY TWO DEC. PL. ± 0.05 OF GOLDACRES TRADING PTY LTD AND IS GA5004085 Bolt M8 x 20 Approved E/DATE ECN NO. ANGULAR ± 0.50°... -
Page 16: 100M Electric Motor & Guard Mounting
Drawing Checked: ONE DEC. PL. ± 0.10 THIS DRAWING REMAINS THE PROPERTY GA5004029 Bolt M6 x 10 TWO DEC. PL. ± 0.05 OF GOLDACRES TRADING PTY LTD AND IS Approved ANGULAR ± 0.50° DRG. STANDARD SUBJECT OF COPYRIGHT GA4660515 Adjuster Bracket, Pro Reel Motor 2014... -
Page 17: Hose Reel 100M
Hose Reel 100m Item No Part No Description PART Parts ITEM NO. DESCRIPTION NUMBER books/QTY. GA4600085 Pro Reel, Shaft Assembly GA4600085 Pro Reel, Shaft Assembly Side Plate, Hose Reel Remote GA4583425 Side Plate, Hose Reel Remote Control GA4583425 Control GA5048120 M10x30 BHCS GA5048120 BHCS M10 x 30... -
Page 18: 150M Electric Motor & Guard Mounting
150m Electric Motor & Guard Mounting Item No Part No Description 1-3 MO GOLDACRES MITCH GA4660510 2015, 150m Hose Reel Frame PH: 03 FAX: 0 GA5052970 DC series 4 electric motor for hose reel TITLE: GA5072120 Pulley, PCD 1½", 16mm bore, 5mm keyway, Pro Reel... -
Page 19: Hose Reel 150M
Hose Reel 150m Item No Part No Description GA4583426 Side Plate large, Uniboard Poly suit hose reel MY13 GA4583125 Spacer Hose Reel Remote Control Long GA5006061 BHCS M10 x 40mm GA0500005 BHCS M10 x 70 SS GA5000117 Washer 10mm SS Heavy duty GA5069975 BHCS M5 x 16mm SS GA4600085... -
Page 20: Electrical Schematic
Electrical Schematic TO MOTOR (motor loom) 5mm2 RED WIRE BATT GND (batt loom) 5mm2 BLACK WIRES AUX GND (motor loom) MOTOR GND (motor loom) WIRED TO REWIND SWITCH 5mm2 RED WIRES +12V AUX OUT (motor loom) +12V BATT IN (batt loom) PUMP CUT-OFF (motor loom) BLUE WIRE... -
Page 21: Turbo 400 Spray Gun
Turbo 400 spray gun. The standard nozzle supplied with the Turbo 400 spray gun is a 2.5mm, please check chart as shown below for other nozzle options. The Turbo 400 spray gun is ideally suited to the pro reel range as it can handle up to 700 psi pressure and a 70 l/min fl ow rate. -
Page 22: Safety Decals
Replacement safety decals can be ordered from all Goldacres dealers. Item No Part No Description GA8700006 Decal, Pro-Reel Autowind, Remote Control GA5015991 Sticker KEEP HANDS CLEAR GA5064610 Decal 50 mt Pro Reel Decal GA5064615 Decal 100 mt Pro Reel Decal kit... -
Page 23: Safety
The following pages outline important safety • Water weighs 1kg per litre, however information. At Goldacres safety is a high conversion factors must be used when priority. These safety and warning instructions spraying liquids that are heavier or lighter MUST be followed to ensure the safe than water. -
Page 24: Personal Protective Equipment (Ppe)
Pump check valves • Any spray drift is dangerous and may be • Pump o-rings hazardous to humans. • Filters and filter screens Goldacres also suggest that you read and • Filter o-rings understand the following Australian standards: • Chemical Hoses •... -
Page 25: Goldacres Warranty Statement
Goldacres brand products will not be covered by Goldacres warrants its authorized Dealers who in Goldacres Warranty. Only labour and parts directly attributable to the repair of the Goldacres unit is turn warrants the original purchaser (Owner) that covered. each new Goldacres Product will be free from proven defect in materials and workmanship for twelve (12) •... -
Page 26: Terms And Conditions
The warranties provided under these terms and conditions do not extend to second hand from the use of the Goods. Goldacres shall be under no liability for damages arising out of or used Goods that may be sold by Goldacres. - Page 27 Goods (section 130); for Goldacres by way of bona fide sale at full market value and in the ordinary course of its to receive a statement of account following disposal of Goods (section 132(2));...
