Operating Guide | VLT® Multiaxis Servo Drive MSD 510 System

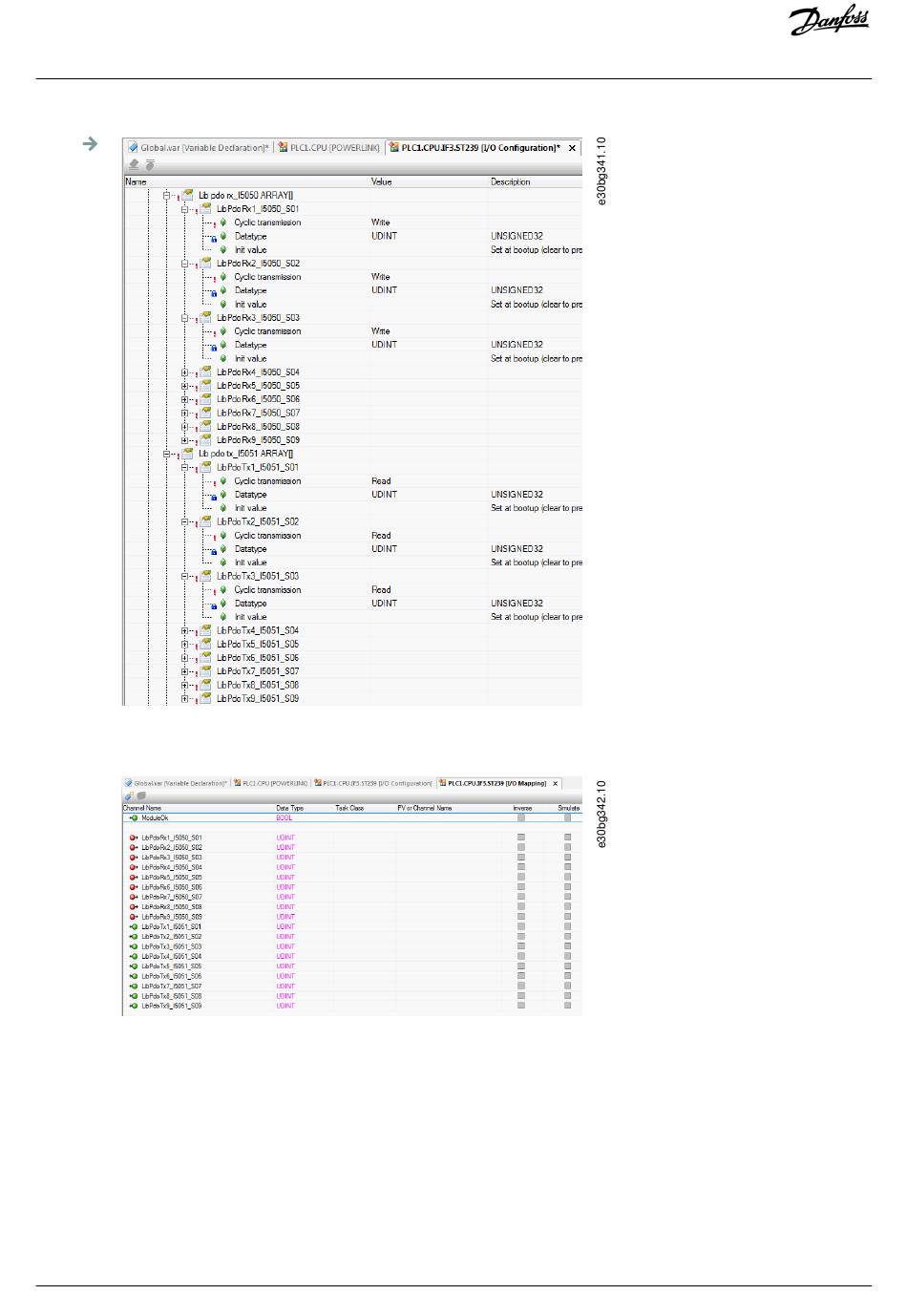

Illustration 68:
Illustration 69:
4. Map the inputs and outputs of the instance of the AXIS_REF_DDS function block and the physical data points of the ISD 510 servo
drive (here myAxis is an instance of AXIS_REF_DDS):
Danfoss A/S © 2019.10
I/O Configuration of an ISD 510 Device
I/O Mapping after Successful Configuration
Commissioning
