Operating Guide | VLT® Multiaxis Servo Drive MSD 510 System
The MSD 510 system is designed for use within a control cabinet. If the STO function is used, the cabinet must be rated at
-
least IP54.
The SDMs have a protection rating of IP20 according to IEC/EN 60529 (except connectors, which are IP00).
-
The SDMs may be damaged if exposed to fluids.
-

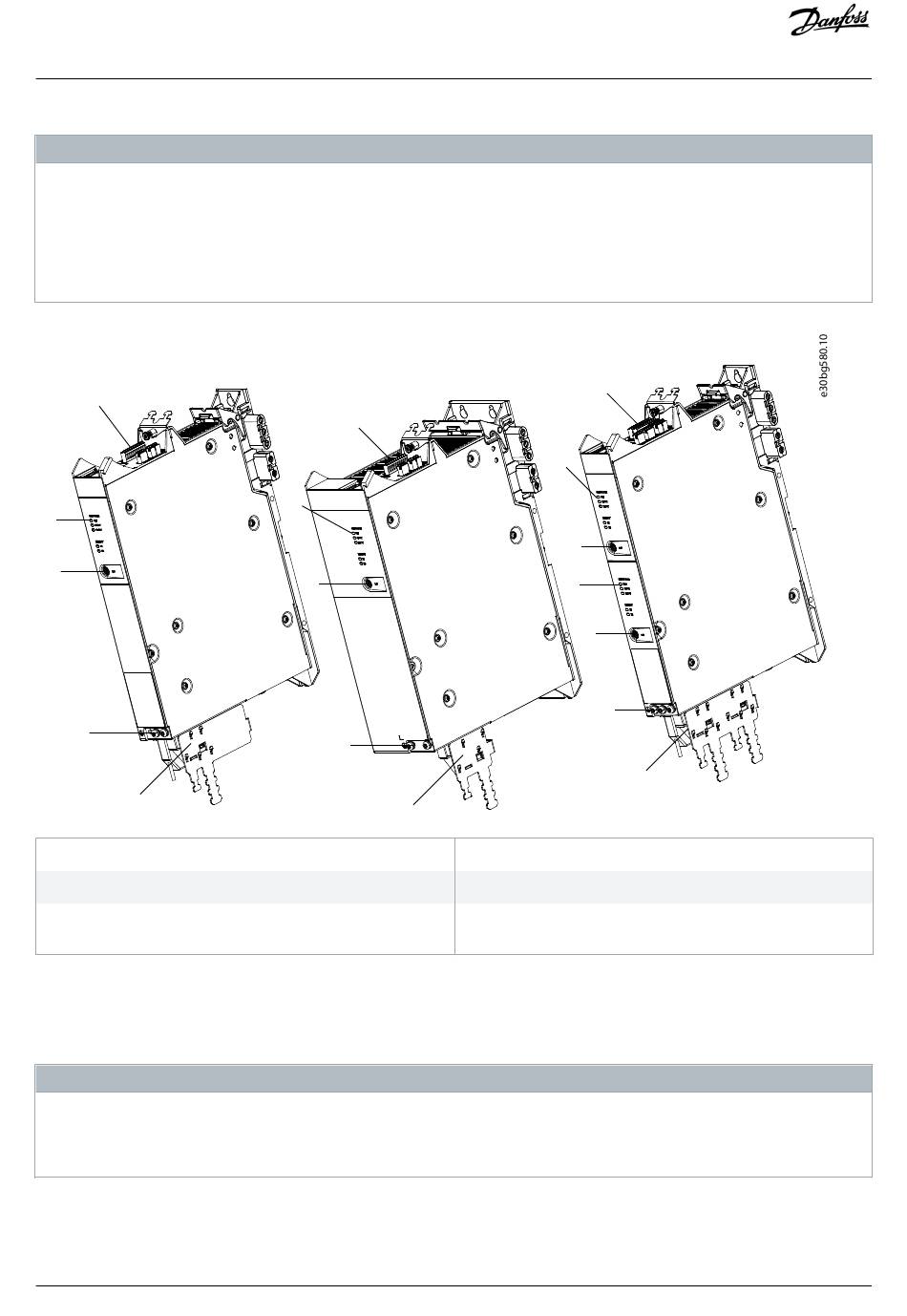

SDM 511 Frame Size 1
1
2
3
4
5
1 Connectors: I/O, STO, relay, Ethernet, and external encoder
3 LCP Connector
5 Connectors: Motor, motor feedback, thermistor, brake,
shielding, and cable relief
Illustration 7: SDM 511/SDM 512 Modules

3.3.2 SDM 511/SDM 512 Types

The Drive Configurator shows the valid configuration of servo drive variants. Only valid combinations are shown. Therefore,
-
not all variants detailed in the type code are visible.
28 | Danfoss A/S © 2019.10
N O T I C E
SDM 511 Frame Size 2
1
2
3
4
5
2 Operating LEDs
4 PE screws
N O T I C E
System Description
SDM 512 Frame Size 1
1
2
3
2
3
4
5
