Operating Guide | VLT® Multiaxis Servo Drive MSD 510 System
An example type code for the PSM 510 is: MSD510PSM510F2P10C0D6E20PLSXXXXXXXXXXXXX.
2
3
4
5
6
7
1 Backplate
3 Cable relief and shielding
5 Operating LEDs
7 PE screw
9 Internal/external brake resistor connector

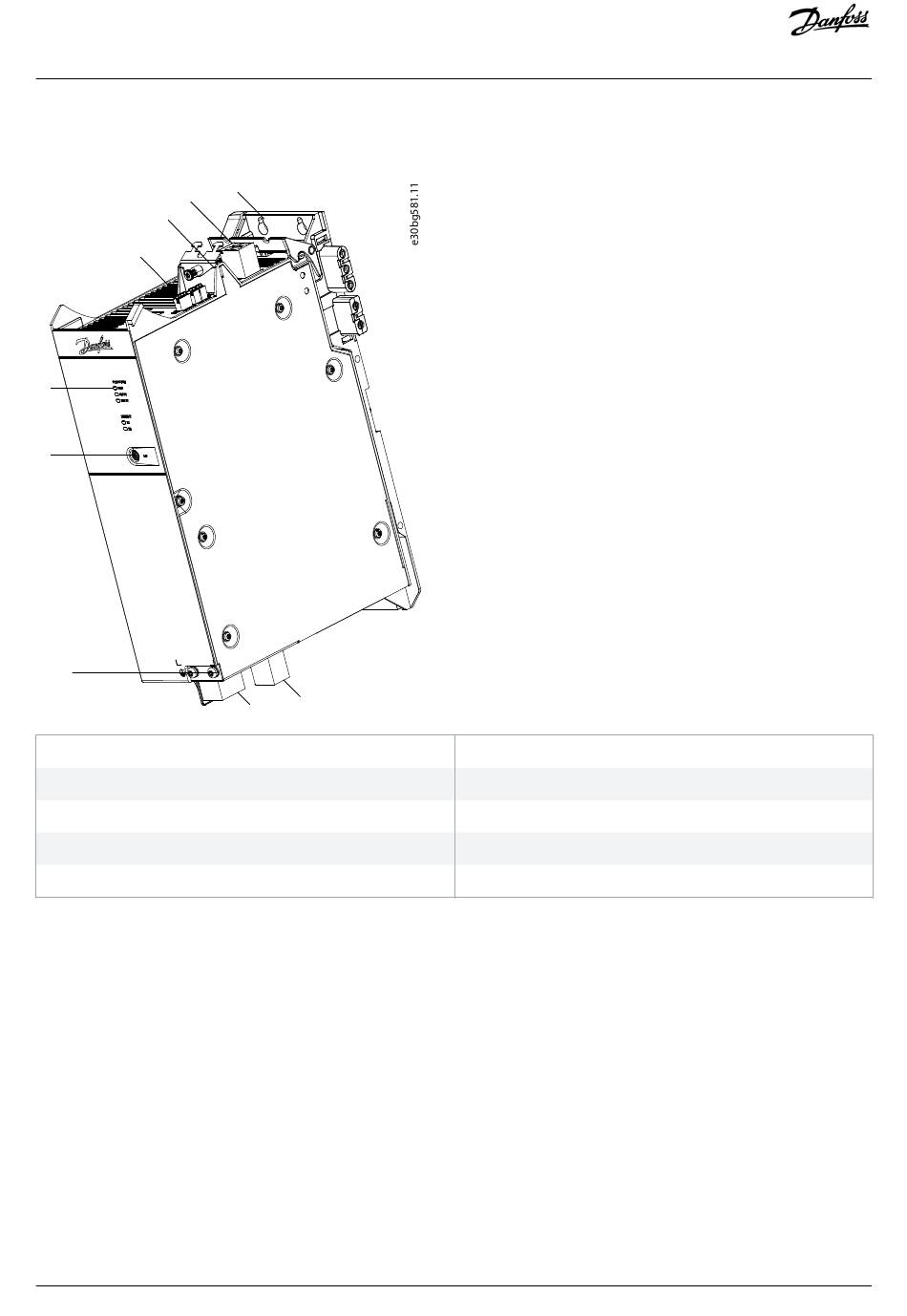

Illustration 4: PSM 510
26 | Danfoss A/S © 2019.10
1
9
8
2 24/48 V input connector
4 Connectors: I/O, STO, relay, and Ethernet
6 LCP connector
8 AC mains supply connector
