Operating Guide | VLT® Multiaxis Servo Drive MSD 510 System
STATUS PSM STATUS DAM STATUS DAM
DEV
STO DEV DEV
STO STO
NET ST NET ST NET ST
AUX AUX
LINK/ACT LINK/ACT LINK/ACT
X1 X1 X1
X2 X2 X2
X3 X3
1
LCP LCP LCP
PSM DAM DAM
510 510 510

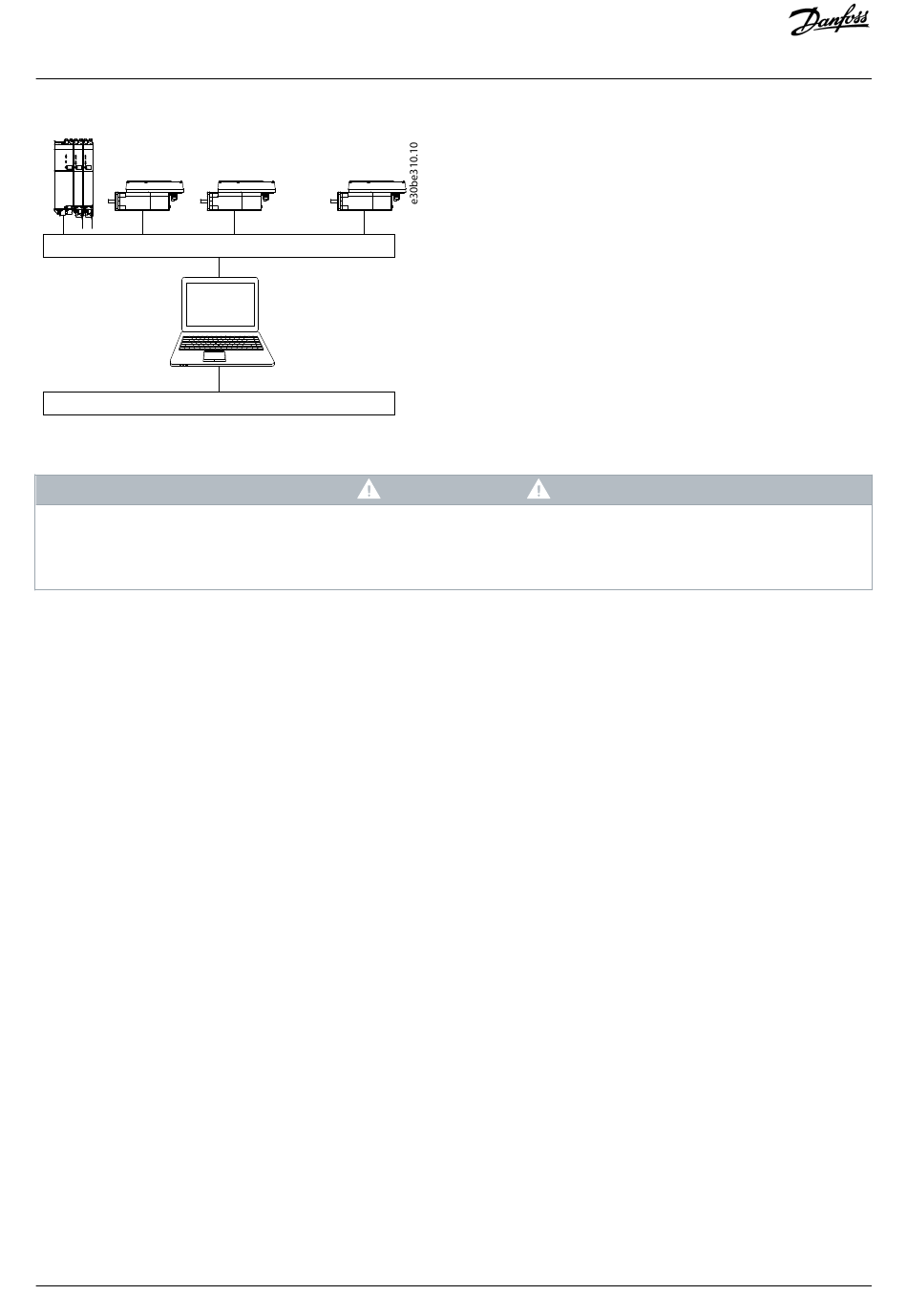

Illustration 104: Logical View of Direct Ethernet-based Fieldbus Communication
The logical view only shows the connectivity from a high-level software perspective and does not reflect the actual physical
-
topology of the network.
6.16.4.4.2 Network Settings for Direct Communication with Ethernet POWERLINK®
Disable all network protocols except TCP/IPv4 on the network interface used for direct Ethernet POWERLINK
prevents other PC software or the operating system using this network interface for other tasks, such as file and printer sharing and
network discovery. Disabling these protocols reduces the number of non-relevant packets sent over the network interface and thus
reduces the overall network load.
140 | Danfoss A/S © 2019.10
2 n
. . .
A
B
W A R N I N G
Commissioning
®
communication. This
AQ262450196490en-000101 / 175R1170
