Operating Guide | VLT® Multiaxis Servo Drive MSD 510 System
STATUS PSM STATUS SDM
DEV DEV
STO STO
NET ST NET ST
LINK/ACT LINK/ACT
X1 X1
X2 X2
LCP LCP

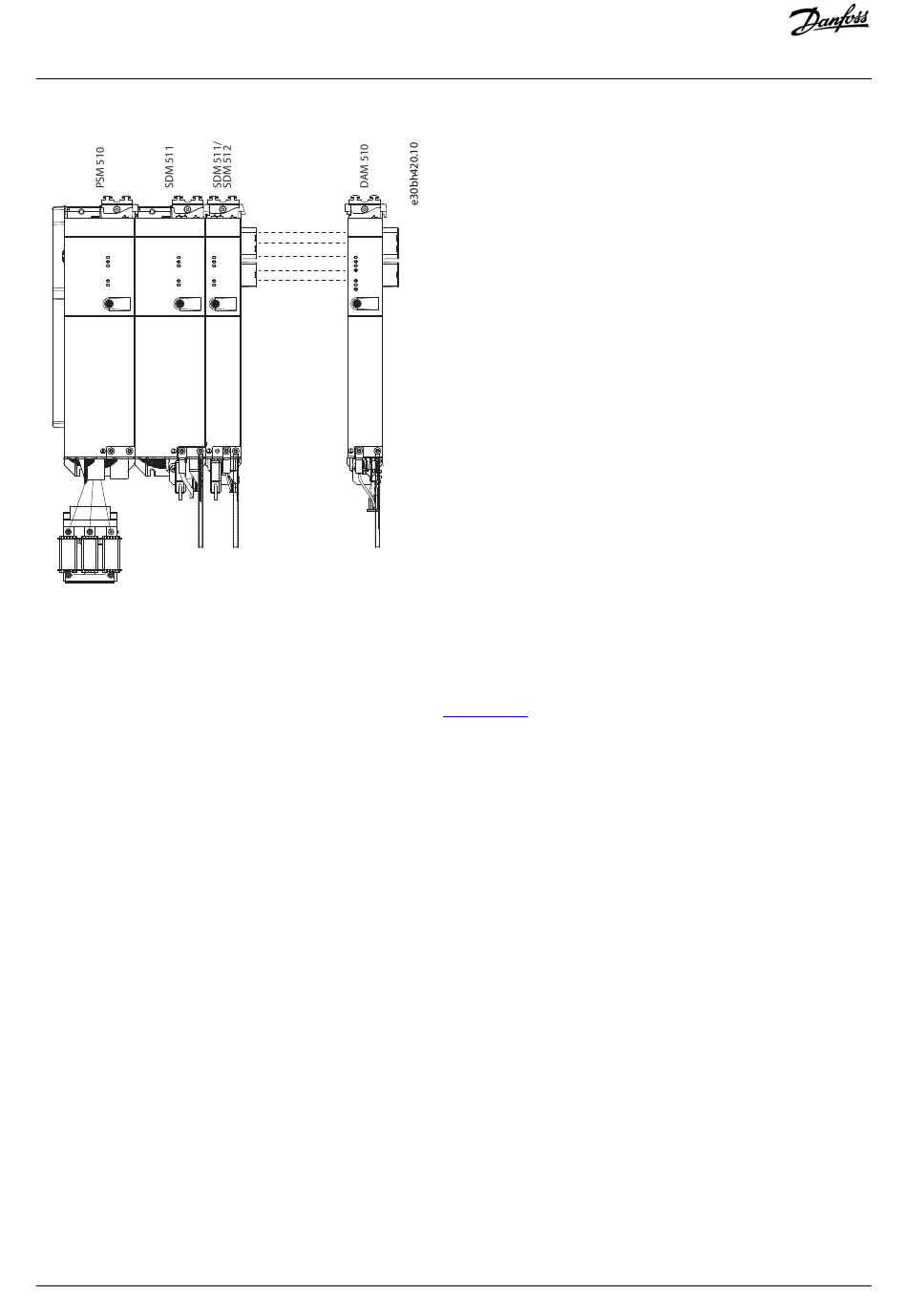

Illustration 47: Connecting 1 PSM 510 to the AC Choke

5.9.1.2 Connecting 2 PSM 510 Modules to the AC Choke

Connect the PSM 510 modules to the same AC choke as shown in
Ensure the choke used is the correct size based on the combined power of the PSM 510 modules.
When 2 PSM 510 modules are used, the wiring between the AC line choke and each PSM 510 must be the same length within a
tolerance of 0.5 m.
Connect each PSM 510 to the AC choke directly. Parallel wiring is not permitted.
Danfoss A/S © 2019.10
STATUS SDM STATUS DAM
DEV DEV
STO STO
NET ST NET ST
AUX
LINK/ACT LINK/ACT
X1 X1
X2 X2
X3
LCP
LCP
illustration 48.
Electrical Installation
AQ262450196490en-000101 / 175R1170| 69
