6.11.9.2 Version V4.x
Procedure
1. Select the menu entry [Tools → Import Fieldbus Device...].
2. Select the XDD file (for example, 0x0300008D_ISD510_S.xdd or 0x0300008D_ISD510_A.xdd) from its location on the hard drive. The
device is then known to Automation Studio™.
3. Now add the SDM 511/SDM 512 drive module or servo drive to the Ethernet POWERLINK
View:
Select the menu entry [Open → System Designer] to show the System Designer.
To add a hardware module to the Physical View or System Designer, select the servo drive in the group POWERLINK in the Hardware
Catalog toolbox.
Drag the selected module to the desired position to connect it to the selected hardware module, network interface, or slot.
To change the node number, right-click on the device and select [Node Number → Change Node Number].

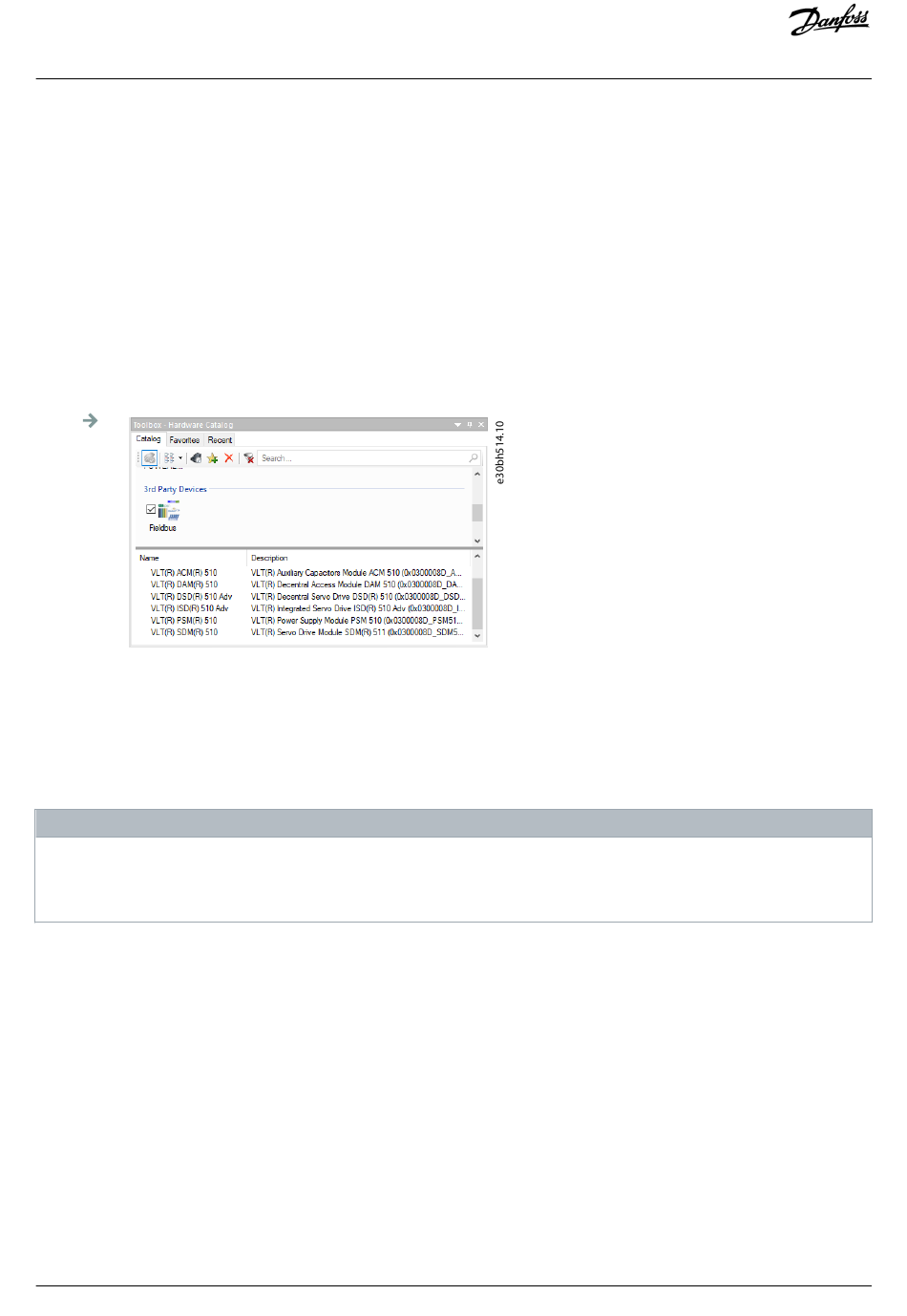

Illustration 65:

6.11.10 Importing PSM 510, DAM 510 and ACM 510 into Automation Studio™

Context:
For each physical Power Supply Module (PSM 510), Decentral Access Module (DAM 510), and Auxiliary Capacitors Module
-
(ACM 510), add 1 entry to the Physical View of Automation Studio™.
Danfoss A/S © 2019.10
Adding a Servo Drive to the Project in V4.x
N O T I C E
Commissioning
®
interface of the controller in the Physical
