Operating Guide | VLT® Multiaxis Servo Drive MSD 510 System
1
1 Internal brake resistor

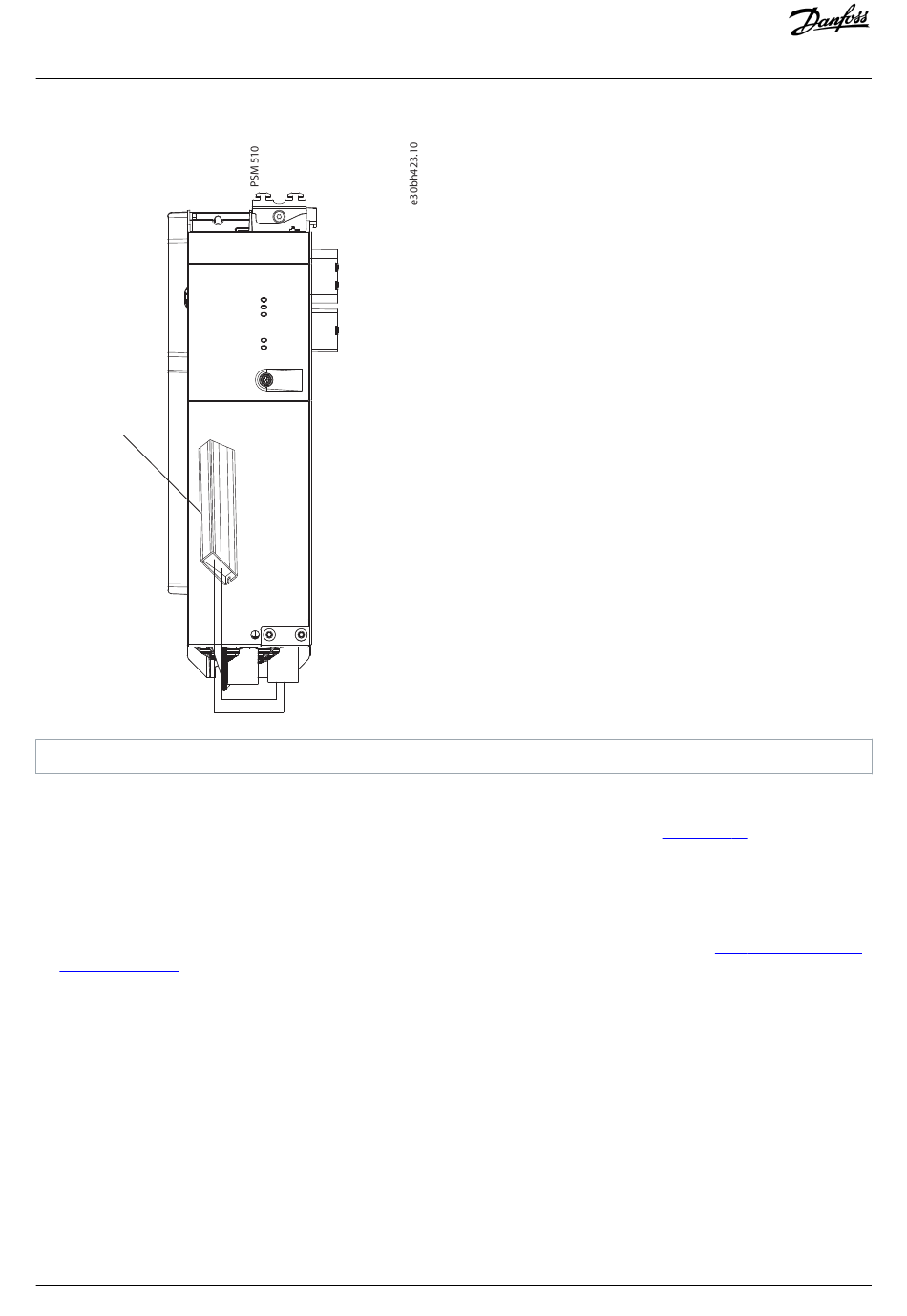

Illustration 59: Connection of Internal Brake Resistor on 1 PSM 510
When using 2 PSM 510 modules, connect each PSM 510 to its own internal brake resistor as shown in
Alternative permitted configurations for 2 PSM 510 modules:
• 1 PSM 510 is connected to the internal brake resistor and the other is connected to an external brake resistor.
• Both PSM 510 modules are connected to an external brake resistor. In this case, the internal brake resistor on the PSM 510 must
remain unconnected and the connector can be placed in the internal brake resistor connector holder (see
Bottom of PSM 510).
Paralleling or series of brake resistors is not permitted.
