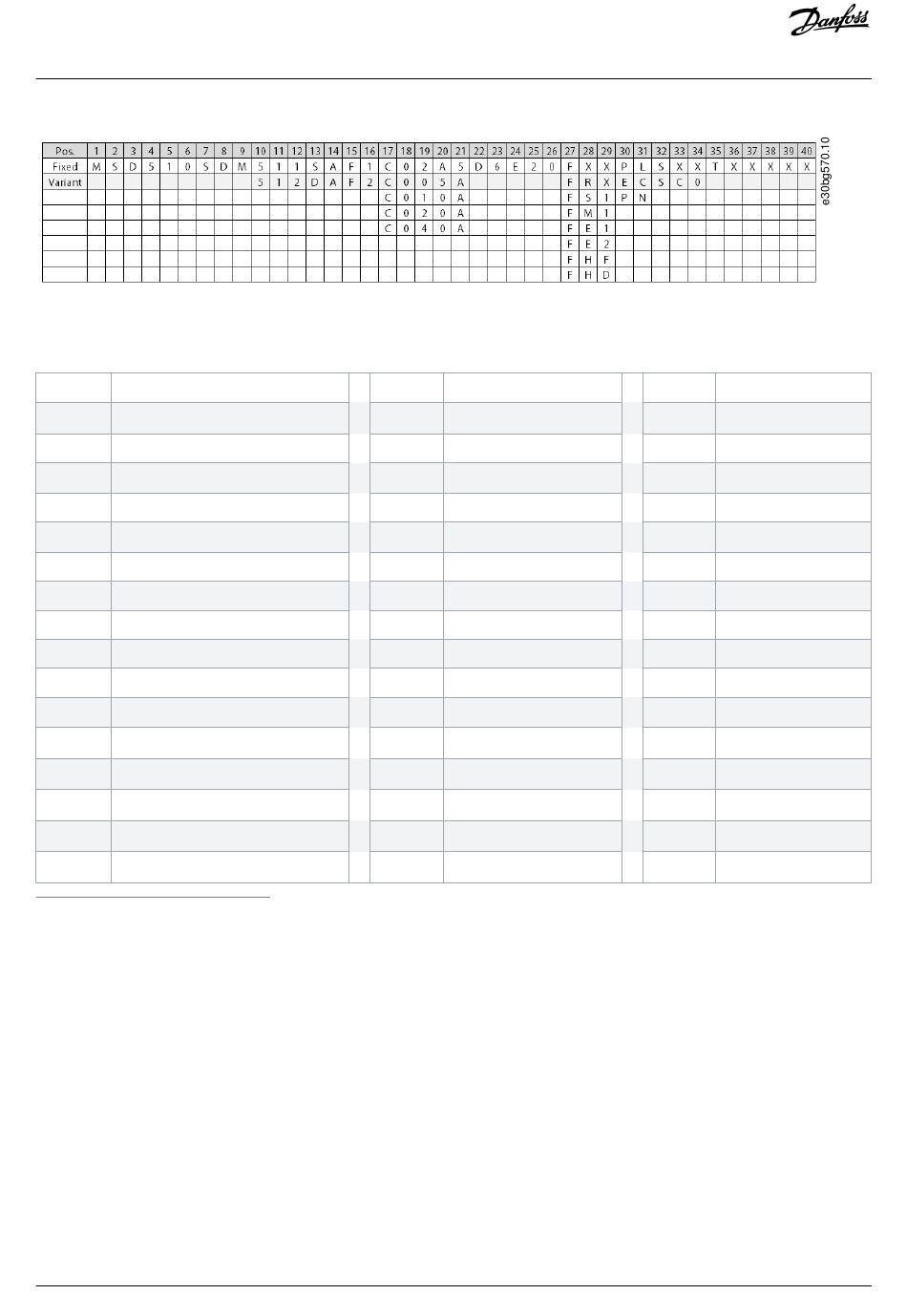

Illustration 8: Type Code
Table 4: Legend to Type Code
[01–06] Product group
MSD510
®
VLT Multiaxis Servo Drive
[07–12] Product variant
SDM511 MSD 510 Servo Drive Module 511
SDM512 MSD 510 Servo Drive Module 512
[13–14] Drive variant
SA Single axis servo drive
DA Double axis servo drive
[15–16] Enclosure (frame) size
F1 Enclosure (frame) size 1, 50 mm
F2 Enclosure (frame) size 2, 100 mm
[17–21] Current rating
C02A5 2.5 A
rms
C005A 5 A
rms
C010A 10 A
rms
C020A 20 A
rms
C040A 40 A
rms
1
IP20 according to IEC/EN 60529 (except connectors, which are IP00)
2
In preparation

3.3.3 Components

3.3.3.1 Cooling

The Servo Drive Modules SDM 511 and SDM 512 are cooled by a speed-controlled internal fan.

3.3.4 Connectors on SDM 511

This section details all connectors on the SDM 511 in enclosure sizes 1 (FS1, 50 mm) and 2 (FS2, 100 mm).
Danfoss A/S © 2019.10
[22–23] DC voltage
D6 600 V DC-link voltage
[24–26] Drive enclosure
E20
IP20 (1)
[27–29] Bus system
FXX
Without feedback
FRX Resolver
FS1 BiSS ST feedback, 17 bit
FM1 BiSS MT feedback, 17 bit
FE1 EnDat 2.1
FE2 EnDat 2.2
FHF
HIPERFACE® (2)
FHD
HIPERFACE® DSL
[30–31] Bus system
PL POWERLINK
EC EtherCAT
PN PROFINET
[32–34] Firmware
SXX Standard
SC0 Customized
[35] Safety
T Safe torque off (STO)
[36–40] Reserved
(2)
XXXXX Reserved
(2)
