11.7.11 UDC Connector

The UDC connector is located on the bottom of the Decentral Access Module (DAM 510).

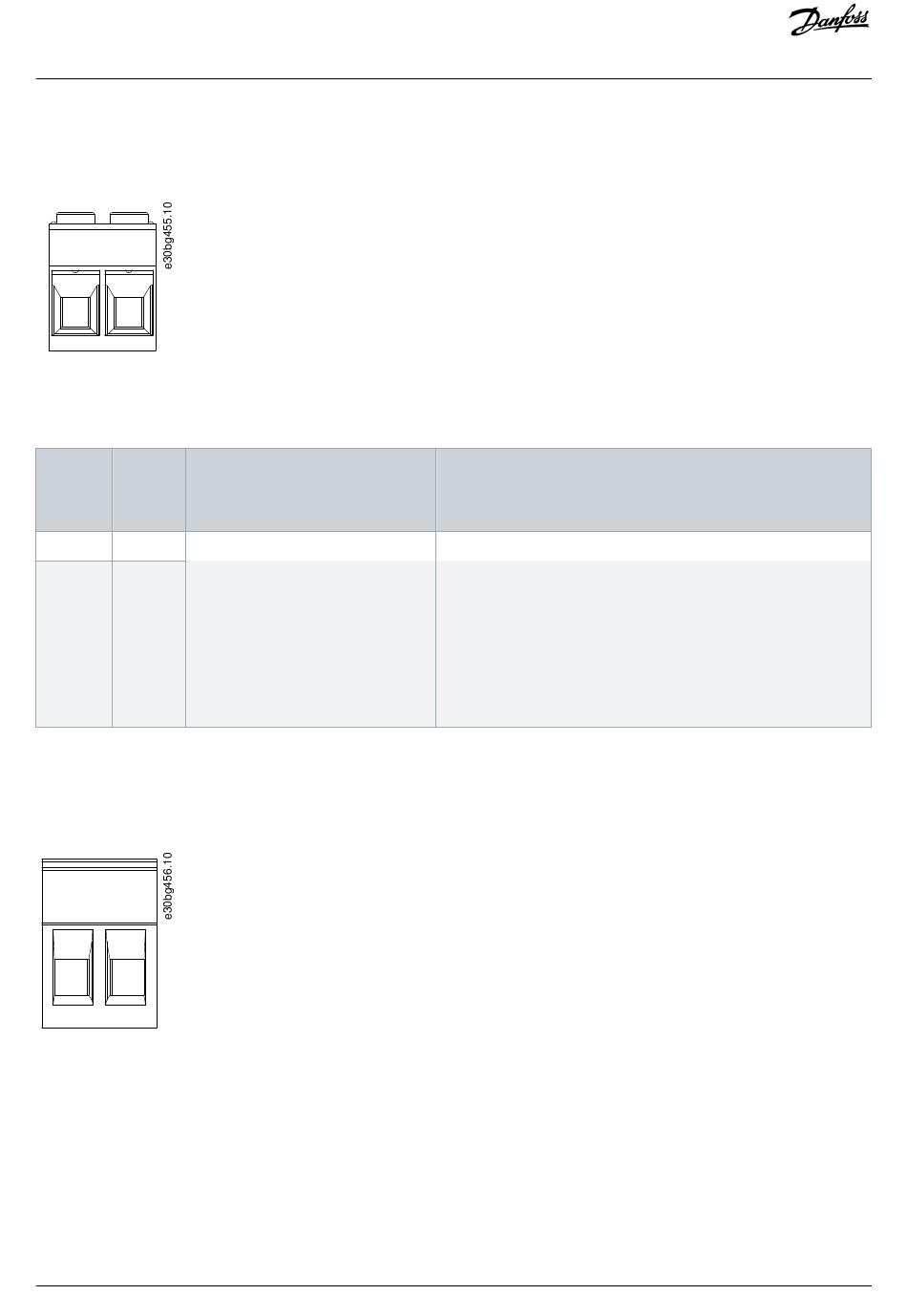

Illustration 150: UDC Connector
Table 151: Pin Assignment of UDC Connector
Pins De‐ Notes
scrip‐
(left to tion
right)
1 UDC+ Used to connect the DC-link voltage
from the Decentral access Module
2 UDC–
(DAM 510) to the hybrid cable for the
ISD line.

11.7.12 AUX Connector

The AUX connector is located on the bottom of the Decentral Access Module (DAM 510).
Illustration 151: AUX Connector
232 | Danfoss A/S © 2019.10
Rating/parameter
Nominal voltage: 560–800 V DC
Nominal current: Depends on the number of servo drives in the ap-
plication.
Maximum current: 25 A
Conductor cross-section range: 0.2–6 mm
Plug terminal tightening torque: 0.5–0.8 Nm
Specifications
2
(AWG 24–AWG 10)
