Operating Guide | VLT® Multiaxis Servo Drive MSD 510 System

4.6.2 Drilling Templates

50
[1.97] [1.97]
M5
UNF 10-32
Ø10,6
[0.42]
FS2
M5
UNF 10-32
50
[1.97] [1.97]
(100 x number of FS2 + 50 x number of FS1) - 50

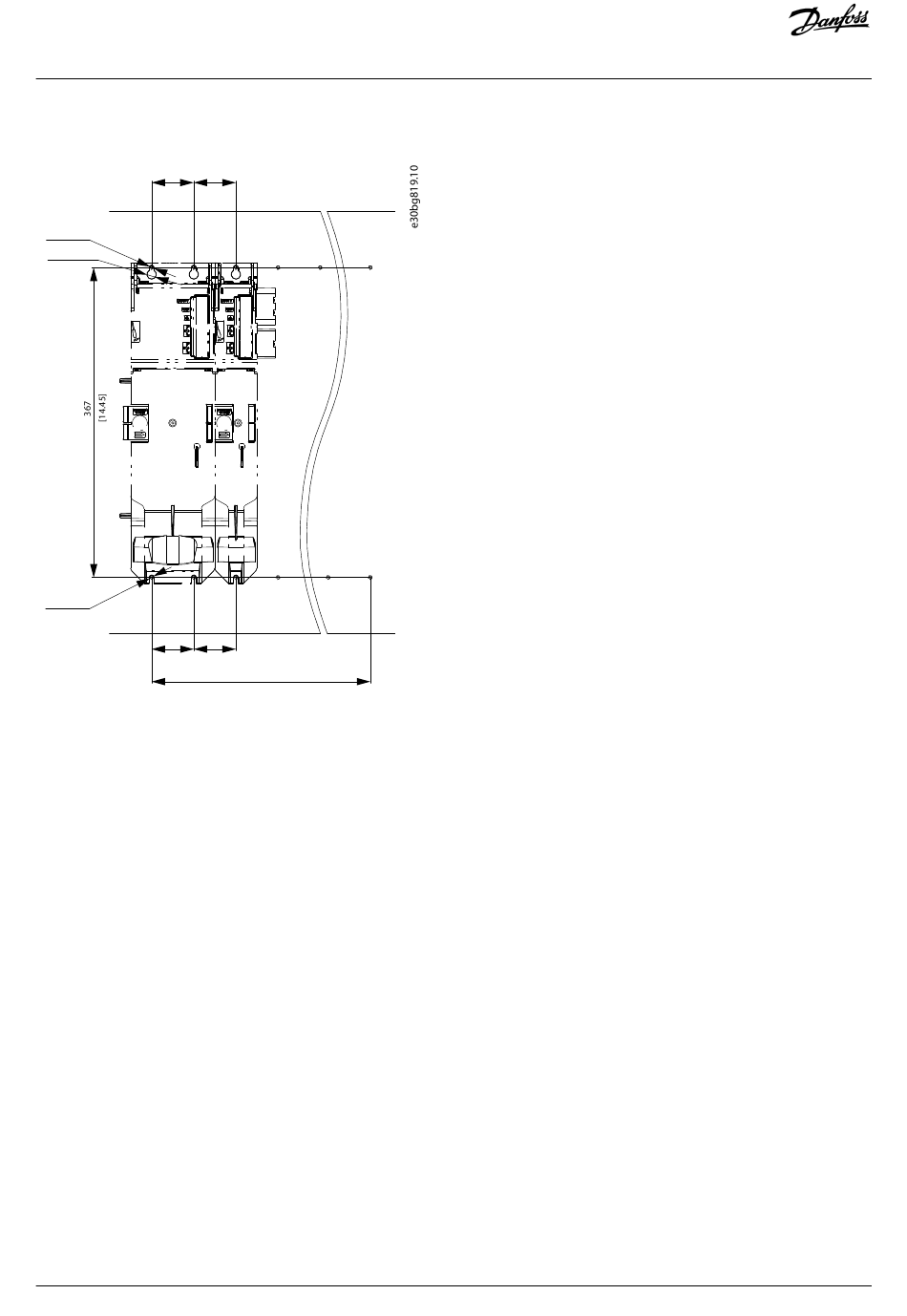

Illustration 29: Drilling templates for 50 mm and 100 mm System Modules

4.7 Installation Procedure

4.7.1 Space Requirements for System Modules

The modules can be mounted next to each other but require a minimum space at the top and bottom for cooling.
50 | Danfoss A/S © 2019.10
50
FS1
50
Mechanical Installation
AQ262450196490en-000101 / 175R1170
