11.7.3.3 Ethernet Connectors on SDM 511/SDM 512
Table 134: Ethernet Connectors
Connector name
SDM1 X1 IN
SDM1 X2 OUT
(1)
SDM2 X1 IN
SDM2 X2 OUT
(1)
1
Only on SDM 512
11.7.4 I/O Connectors
11.7.4.1 I/O Connector on PSM 510/ACM 510
1
2
3
4

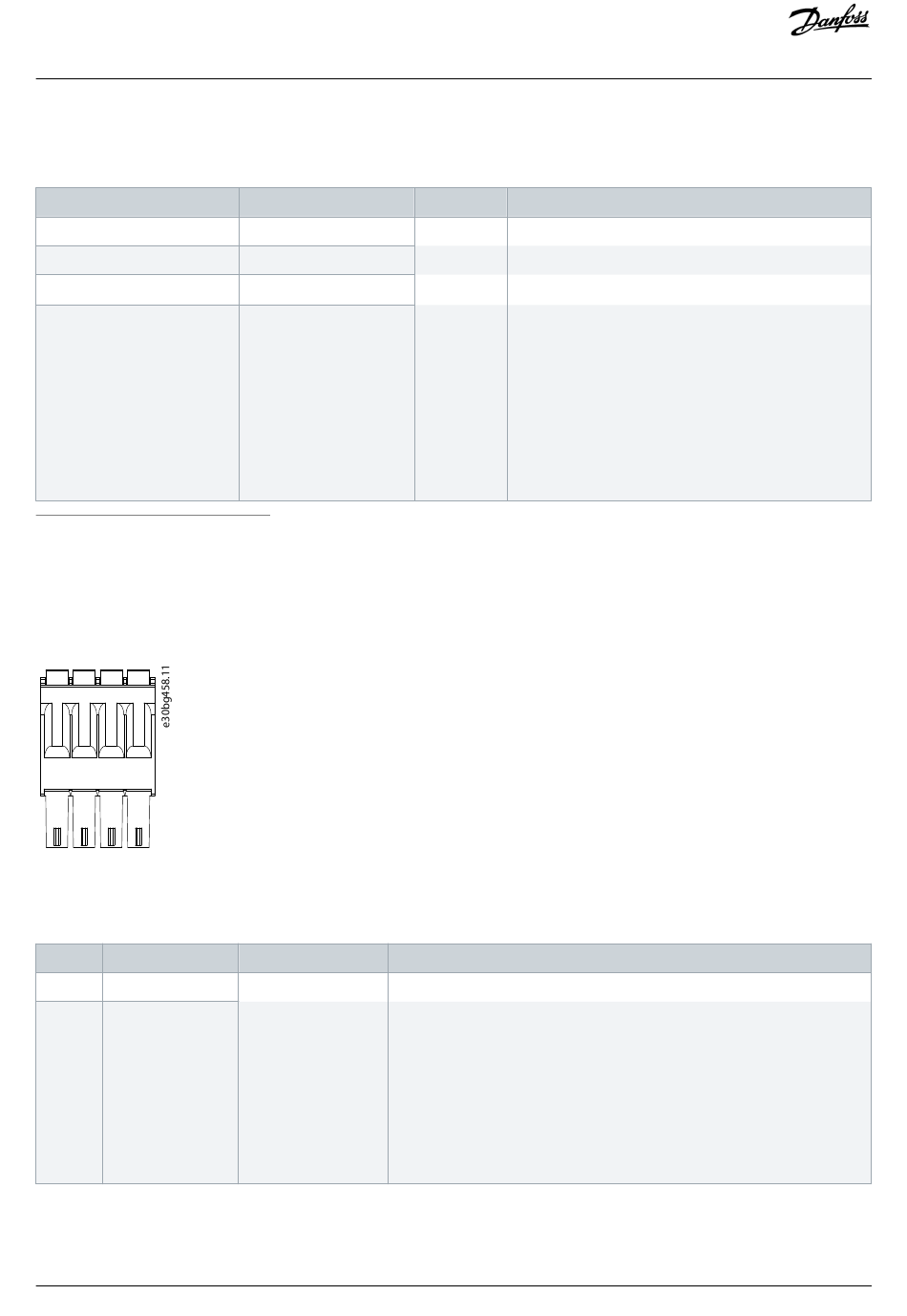

Illustration 135:
I/O Connector on PSM 510 (I/O PSM) and ACM 510 (I/O ACM)
Table 135: Pin Assignment of I/O Connector on PSM 510/ACM 510
Pins
Description
1
DIN1–
2
DIN1+
Danfoss A/S © 2019.10
Description
Ethernet IN1
Ethernet OUT1
Ethernet IN2
Ethernet OUT2
Notes
Rating/parameter
Digital input
Input voltage: 0–48 V DC
High (logic "1") voltage: 15–48 V DC
Low (logic "0") voltage: <5 V DC
Maximum input signal frequency: 50 Hz
Maximum input current at 48 V: 11 mA
Maximum input resistance: 4.5 KΩ
Pins
Ratings
1: Tx+
According to standard 100BASE-T.
2: TX–
3: RX+
4: –
5: –
6: RX–
7: –
8: –
Specifications
AQ262450196490en-000101 / 175R1170| 219
