Operating Guide | VLT® Multiaxis Servo Drive MSD 510 System

11.6 Expansion Module (EXM 510)

11.6.1 Dimensions

87.3
[3.4]
50
16 21.3
[0.6] [0.8]
[2]

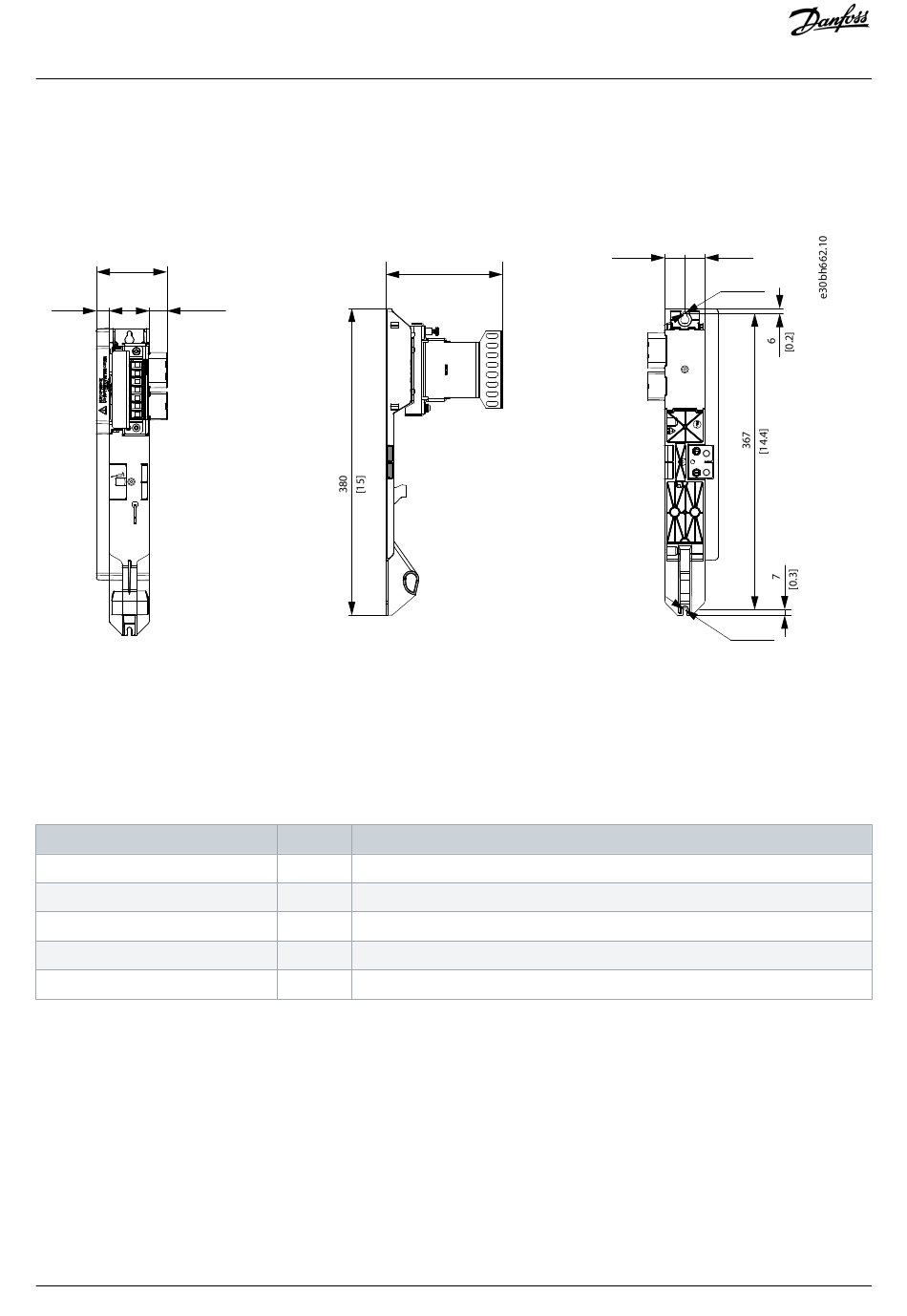

Illustration 130: Dimensions of EXM 510
11.6.2 Characteristic Data for EXM 510
Table 127: Expansion Module (EXM 510) Characteristic Data
Definition
DC-link
Maximum current
Mounting
Weight
Dimensions (W x H x D)

11.7 Connectors on the System Modules

11.7.1 Backlink Connector

The backlink connector is located at the top of the backside of all the MSD 510 system modules.
Danfoss A/S © 2019.10
144.75
[5.7]
Unit Value
V DC 565–680 ±10%
A DC 62
– Wall-mounted on backplate using backlink connector
kg 0.6
mm 87 x 380 x 145
Specifications
25 25
[1] [1]
Ø5.2
[0.2]
Ø5.2
[0.2]
AQ262450196490en-000101 / 175R1170| 213
