Operating Guide | VLT® Multiaxis Servo Drive MSD 510 System

3.2.2 Connectors on the Top of PSM 510

1
7
1 Ethernet connector IN
3 24/48 V IN connector
5 STO connector OUT
7 Relay connector

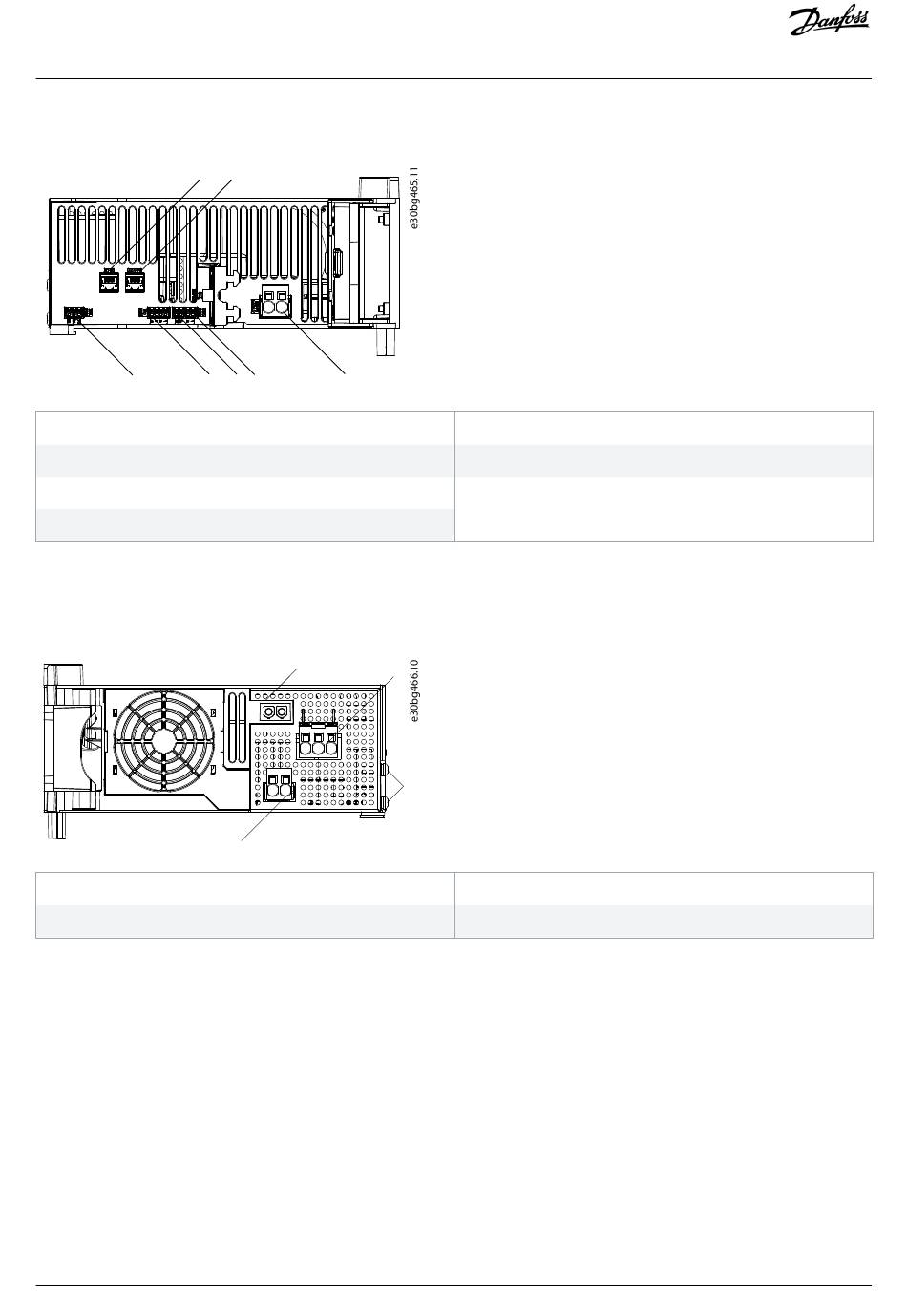

Illustration 5: Connectors on the Top of PSM 510

3.2.3 Connectors on the Bottom of PSM 510

1 Holder for internal brake resistor connector when not in use
3 PE screws
Illustration 6: Connectors on the Bottom of PSM 510

3.3 Servo Drive Module SDM 511/SDM 512

3.3.1 Overview

SDM is the abbreviation for Servo Drive Module. The SDM 511 is a single axis servo drive available in 5 power sizes and 2 enclosure
sizes (FS1 is 50 mm and FS2 is 100 mm). The SDM 512 is a double axis servo drive available in 3 power sizes and 1 enclosure size (FS1,
50 mm). A double axis module operates 2 servo motors independently. Several feedback options are available. The SDMs are equipped
with digital I/Os and Safe Torque Off (STO) and support several motor feedback encoders.
Danfoss A/S © 2019.10
2
6
5 4 3
1
4
2 Ethernet connector OUT
4 STO connector IN
6 I/O connector
2
3
2 AC mains supply connector
4 Internal/external brake resistor connector
System Description
AQ262450196490en-000101 / 175R1170| 27
