Operating Guide | VLT® Multiaxis Servo Drive MSD 510 System
6.16.4.4.4 Setting the Correct Ethernet POWERLINK® Master IP Address
Procedure
1. Open the Network and Sharing Center.
2. On the left, click on Change adapter settings.
3. Right-click on the network interface used for fieldbus communication and select Properties.
4. Click on Internet Protocol Version 4 (TCP/IPv4) (the checkbox must be checked) and then click on Properties.
5. Select Use the following IP address and use 192.168.100.240 as the IP address and 255.255.255.0 as the subnet mask. Leave all other
fields empty.
Illustration 106: Internet Protocol Version 4 (TCP/IPv4) Properties
6.16.4.4.5 Network Settings for Direct Communication with EtherCAT®

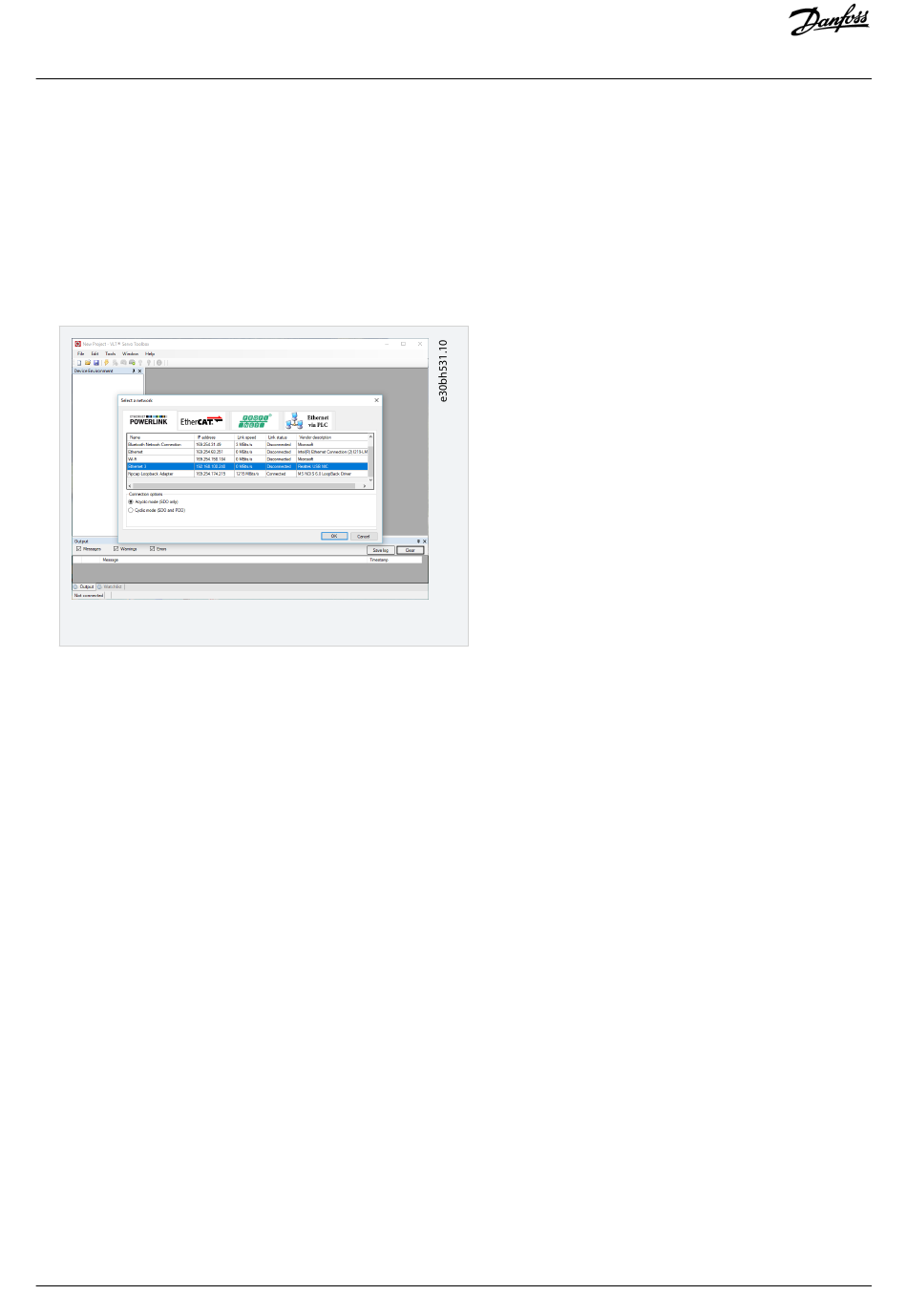

Configuration of the EtherCAT
6.17 VLT® Servo Toolbox Commissioning

6.17.1 Step 1: Opening the Main Window

The Main Window is the basis for all VLT
142 | Danfoss A/S © 2019.10
®
-specific network interface on the VLT
®
Servo Toolbox functionalities. It consists of the following components:
®
Servo Toolbox host PC is not required.
Commissioning
AQ262450196490en-000101 / 175R1170
