Operating Guide | VLT® Multiaxis Servo Drive MSD 510 System

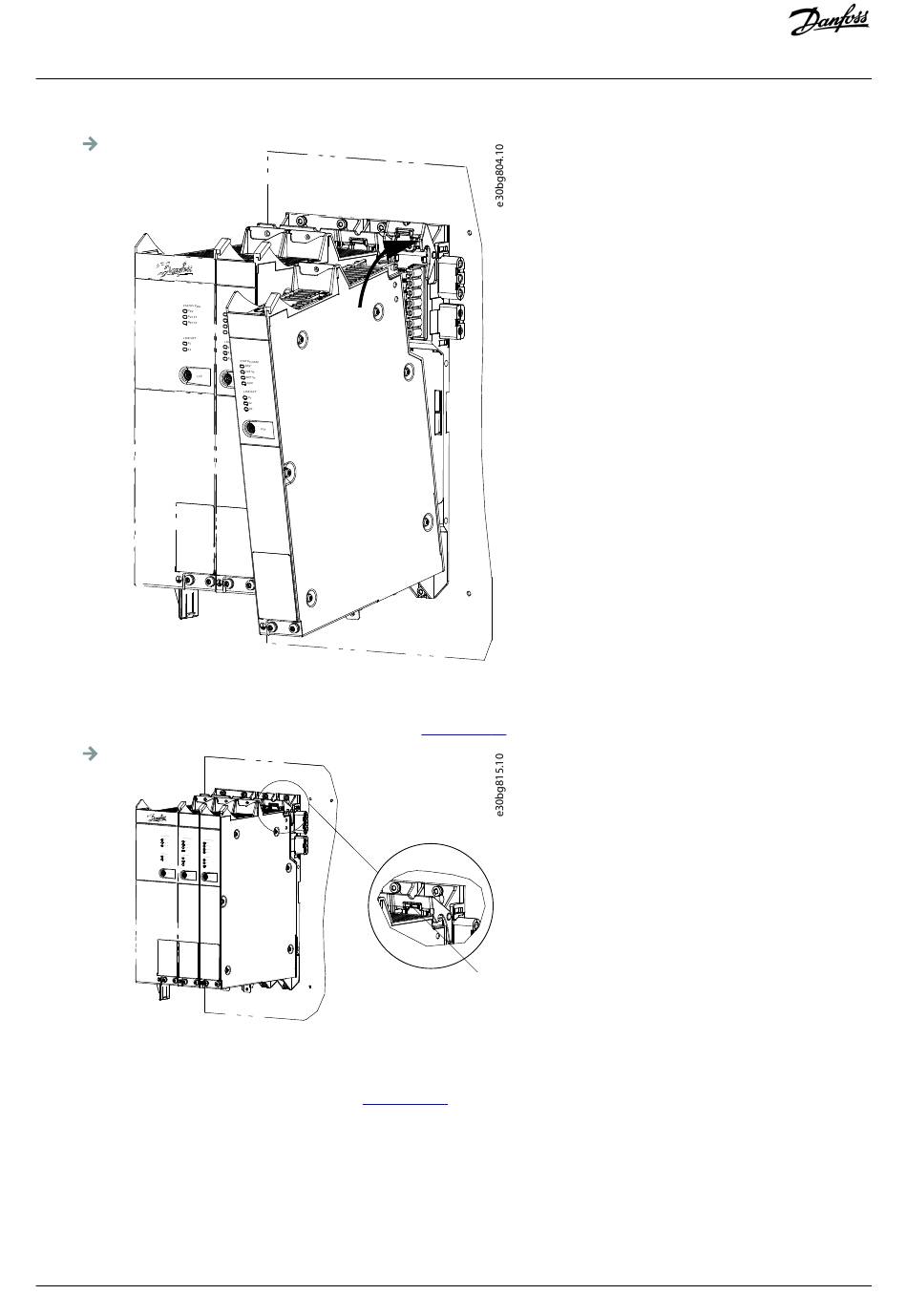

Illustration 34:
6. To secure the module, pull down the holding clamp ([1] in
Illustration 35:
7. Repeat steps 4, 5, and 6 for the remaining modules, ensuring that the lip at the left side of the 2nd module is inside the guiding
groove at the right side of the 1st module (([1] in
Danfoss A/S © 2019.10
S
Pressing the Module onto the Backlink Connector
Pulling Down the Holding Clamp at the Top of the Backplate
illustration
illustration
35) at the top of the backplate.
1
36).
Mechanical Installation
AQ262450196490en-000101 / 175R1170| 55
