Operating Guide | VLT® Multiaxis Servo Drive MSD 510 System
5.3.2 Grounding for EMC-Compliant Installation
•
Establish electrical contact between the cable shield and the enclosure using the I/O shielding plate on each module.
1 Cable
3 I/O shielding plate

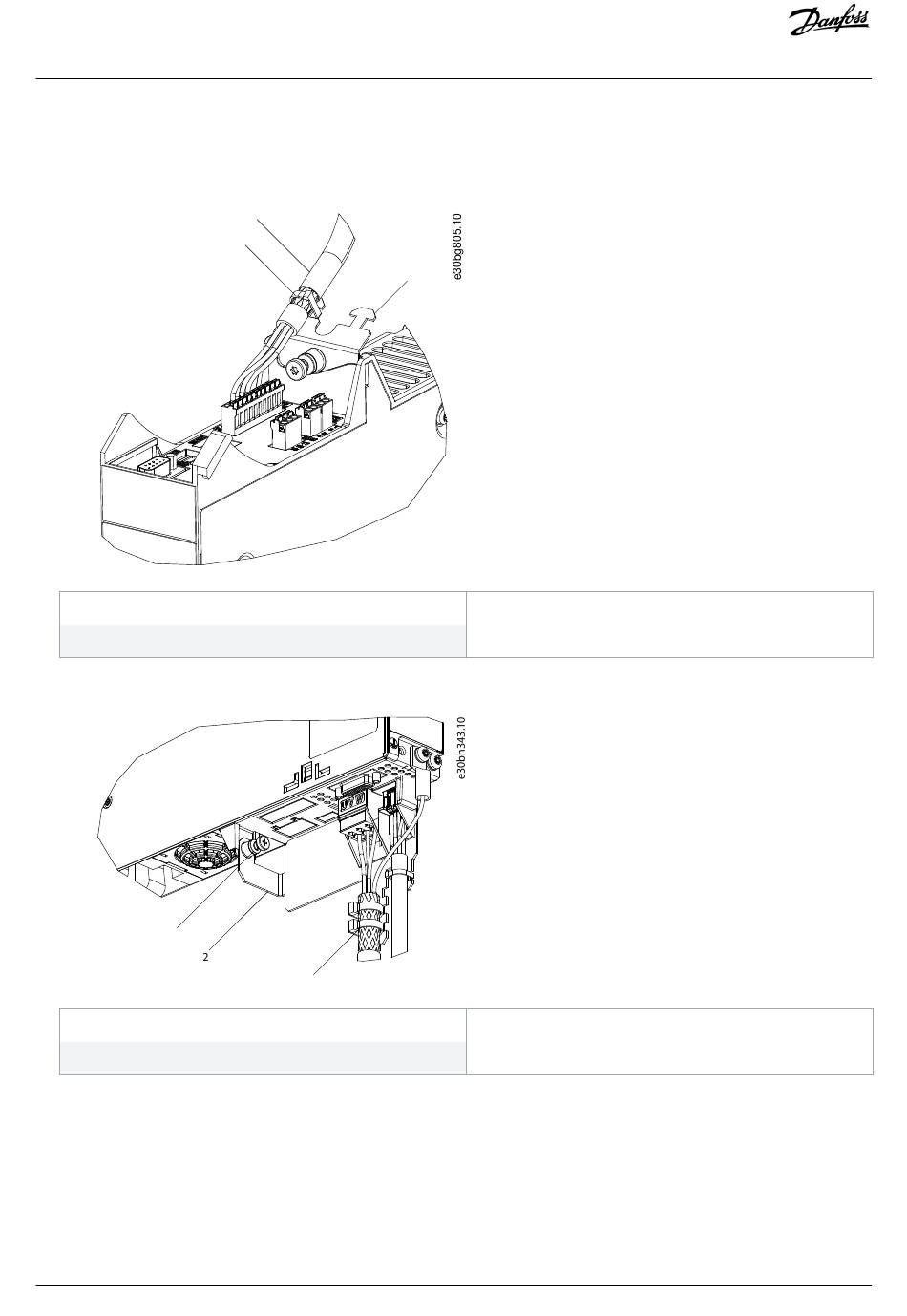

Illustration 38:
Cable Shielding on the Top of the System Components
3
1 Cable tie
3 PE screw
Illustration 39:
Cable Shielding on the Bottom of the System Components
•
Use a cable with a shielding that has a high-coverage to reduce electrical interference.
•
Do not use pigtails to connect the shielding. A 360° wire connection is recommended.
60 | Danfoss A/S © 2019.10
1
2
3
1
2 Cable tie
2 EMC metal shielding plate
Electrical Installation
AQ262450196490en-000101 / 175R1170
