3 Cable tie for feed-in cable
5 EMC plate
Illustration 55: Connecting the Feed-In Cable
Procedure
1. Insert the wires into the UDC, AUX, and STO connectors.
2. Secure the feed-in cable using the cable ties [3], ensuring that the shielded area is positioned exactly under the cable tie.
3. Secure the STO cable using the cable tie [4], ensuring that the shielded area is positioned exactly under the cable tie.
4. Insert the connectors on the feed-in cable into their corresponding terminal block on the DAM 510.
5. Tighten the screw on the EMC plate [6]. The tightening torque is 3 Nm.
6. Insert the RJ45 bus connector [2].
7. Connect the DAM 510 to the PE screw on the front side [1] using a PE wire. The tightening torque is 3 Nm.

5.11 Connecting the Auxiliary Capacitors Module ACM 510

Context:
1
2
4 3
1 Ethernet connector IN (X1 IN)
3 I/O connector (I/O ACM)

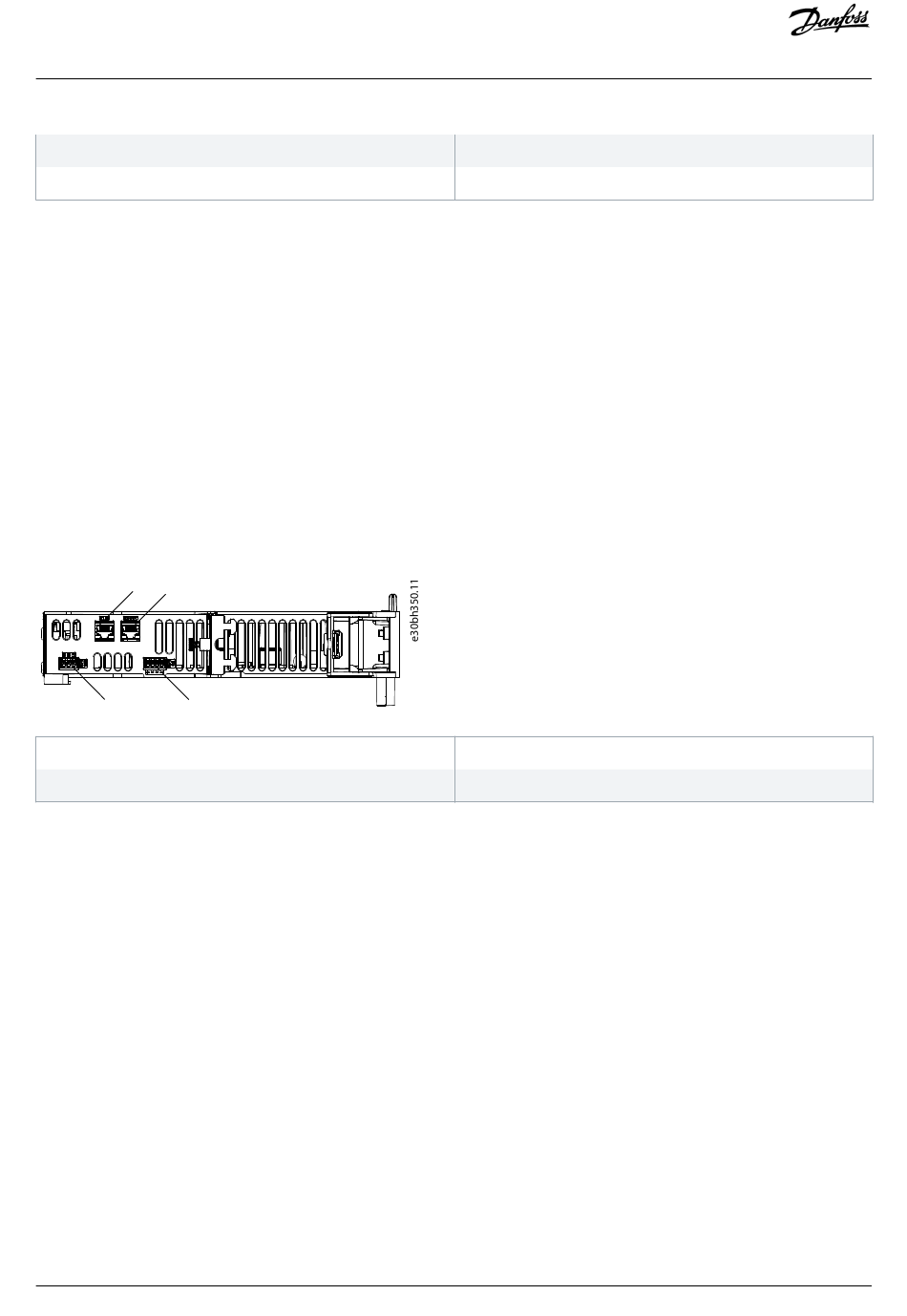

Illustration 56: Connectors on the Top of ACM 510
Procedure
1. Connect the Ethernet cable from the output of the previous system module to the input connector (X1 IN) [1].
2. If I/Os are required, insert the wires into the I/O connector (I/O ACM) and insert the connector [3].
3. If a relay is required, insert the wires into the relay connector (REL ACM) and insert the connector [4].
4. Connect the ACM 510 to the PE screw on the front side using a PE wire. The tightening torque is 3 Nm.
Danfoss A/S © 2019.10
4 Cable tie for STO cable
6 EMC plate screw
2 Ethernet connector OUT (X2 OUT)
4 Relay connector (REL ACM)
