Operating Guide | VLT® Multiaxis Servo Drive MSD 510 System
Procedure
1. Drill the holes for mounting the backplate as per the drilling template (see
2. Connect the backplates via the click and lock method.

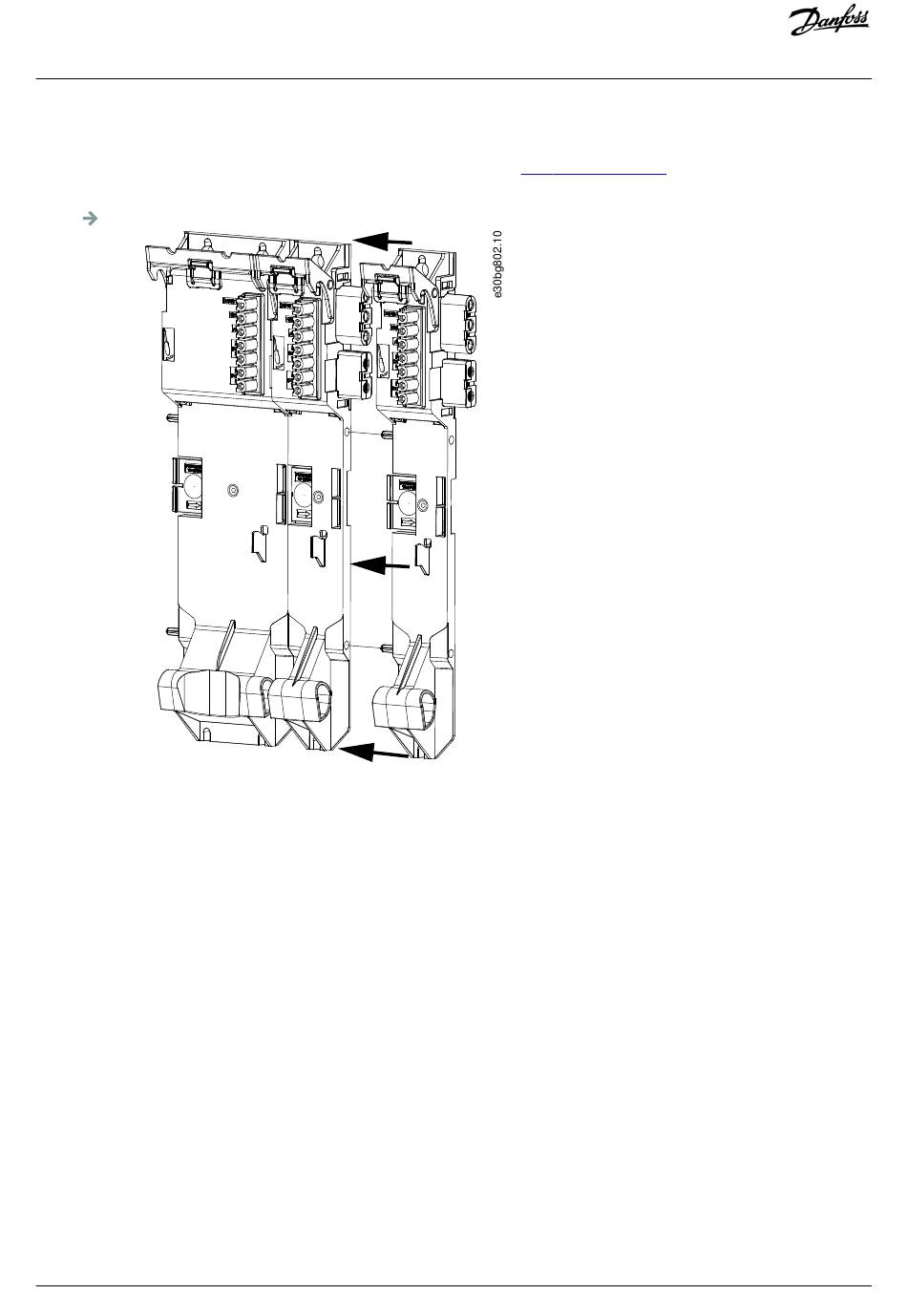

Illustration 32:
3. Mount the backplates to the mounting plate in the control cabinet using M5 screws with a minimum head diameter or washer
diameter of 9.5 mm. The tightening torque is 3 Nm.
