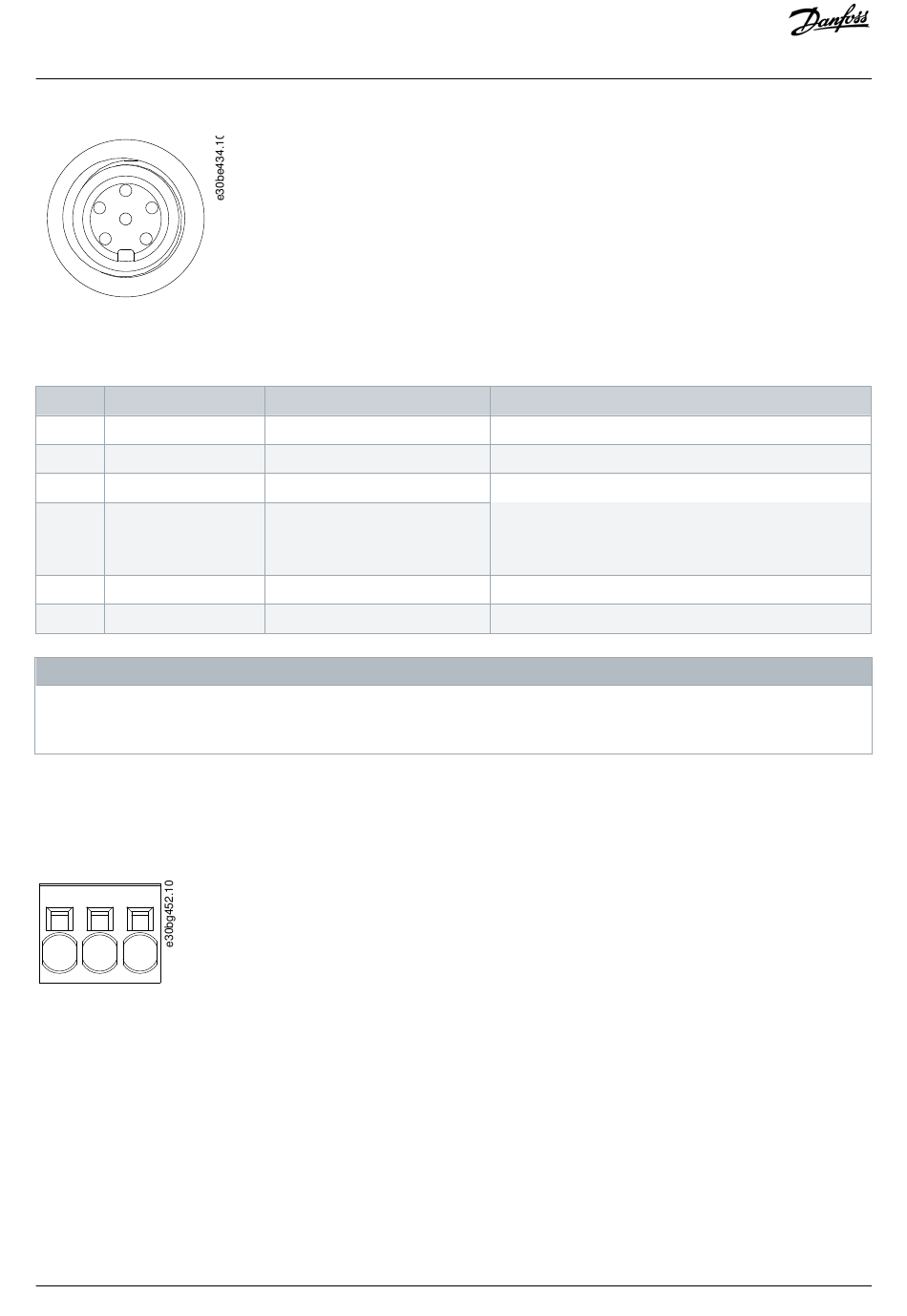

Illustration 138:
LCP Connector (M8, 6 pole)
Table 139: Pin Assignment of LCP Connector
Pins
Description
1
Not connected
2
/LCP RST
3
LCP RS485
4
/LCP RS485
5
GND
6
VCC
Only PELV potential can be connected to the LCP input.
-
11.7.7 AC Mains Connector
The AC mains connector is located on the bottom of the Power Supply Module (PSM 510).
Illustration 139:
AC Mains Connector
Danfoss A/S © 2019.10
Notes
–
Reset
Positive RS485 signal
Negative RS485 signal
GND
5 V supply for LCP
N O T I C E
Rating/parameter
–
Active at ≦0.5 V
Speed:
38.4 kBd
The levels fulfill the RS485 specification.
–
5 V ±10% at 120 mA maximum load
AQ262450196490en-000101 / 175R1170| 223
Specifications
