Operating Guide | VLT® Multiaxis Servo Drive MSD 510 System
1 2 3
1 Save/Save as button
3 Write configuration to device button

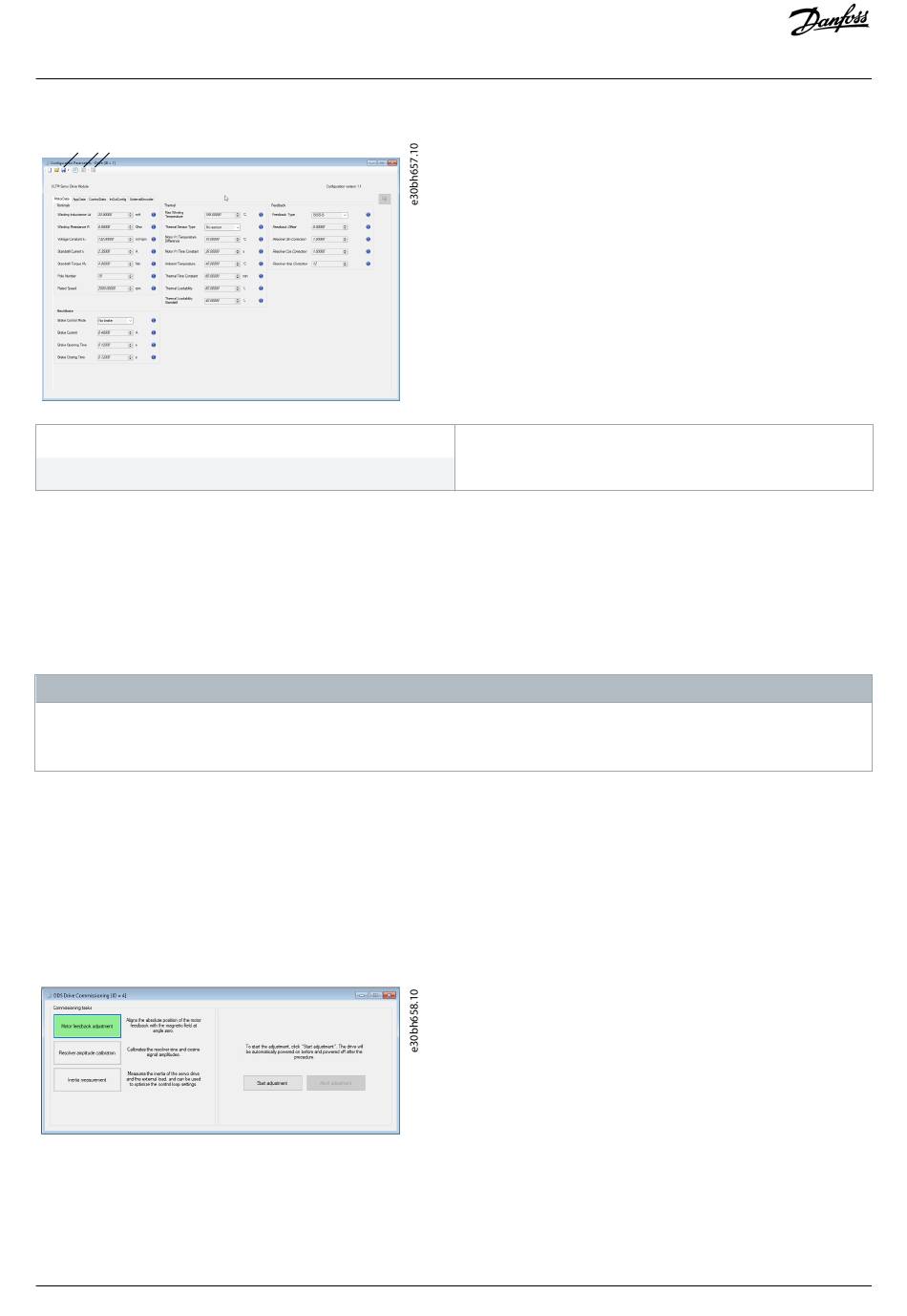

Illustration 61: Configuration Parameter Subtool
The configuration parameters are stored in a file.
• Click on the Read configuration from device button [2] to load the file.
• Click on the Save/Save as button [1] to save the file locally.
• Click on the Write configuration to device button [3] to transfer the file to a device. Power cycle the device to activate the transferred
configuration.
Refer to the subtool for a detailed description of each parameter.
-

6.3.2 Drive Commissioning Subtool

The Drive Commissioning subtool is the VLT
• Motor feedback adjustment
• Resolver amplitude calibration
• Inertia measurement
Illustration 62: Drive Commissioning Subtool
Danfoss A/S © 2019.10
2 Read configuration from device button
N O T I C E
®
Servo Toolbox subtool for carrying out commissioning tasks, such as:
Commissioning
AQ262450196490en-000101 / 175R1170| 81
