Operating Guide | VLT® Multiaxis Servo Drive MSD 510 System

10.5 System Component Replacement

10.5.1 Dismounting the System Components

1. Disconnect the mains and all auxiliary supplies from the PSM 510 and wait for the discharge time to elapse.
2. Unplug the motor feedback connectors (only on SDM511/SDM512).
3. Disconnect the EMC plate on the bottom of the system components. Do not dismount the connectors from the EMC plate.
4

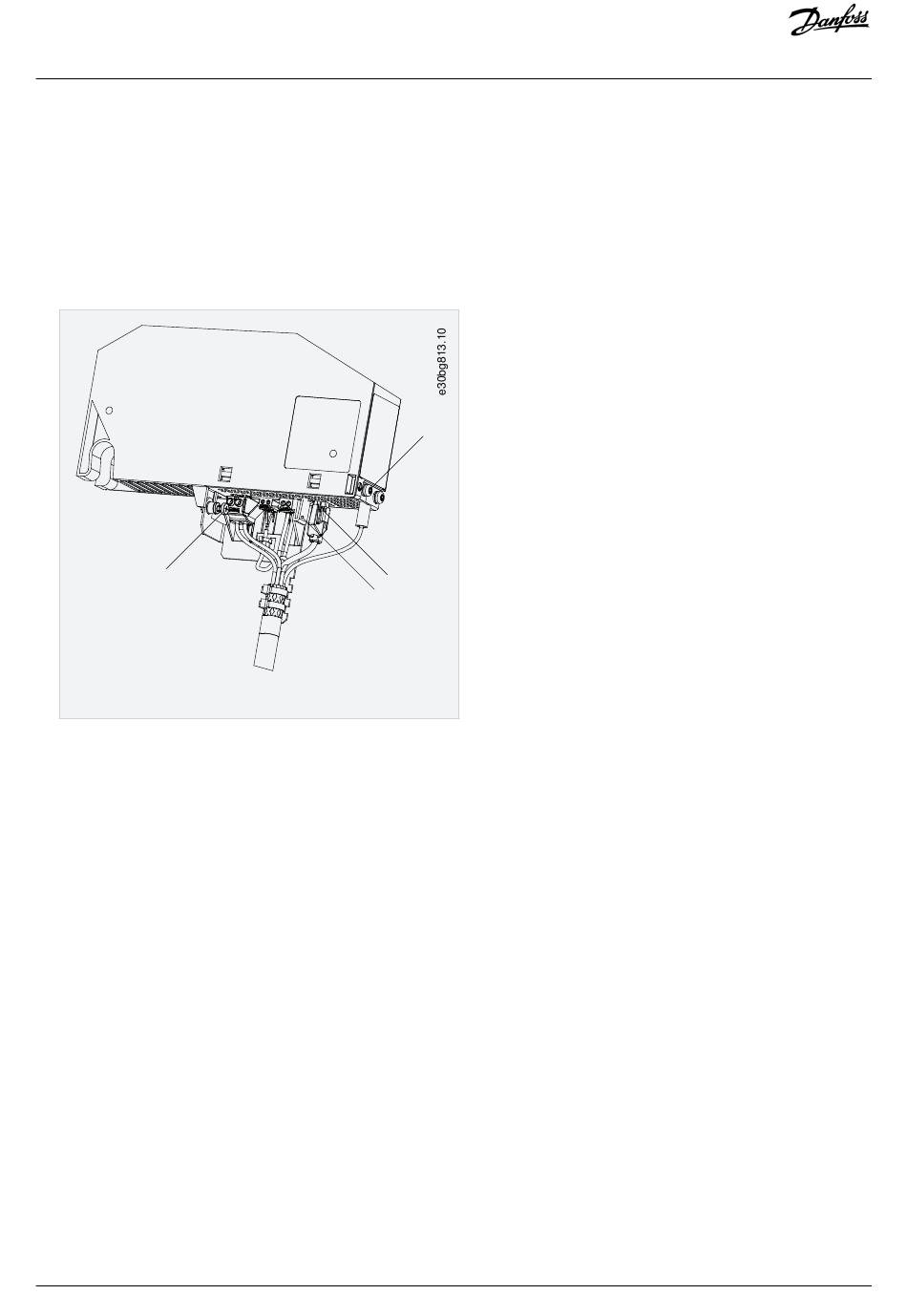

Illustration 115: Disconnecting the EMC Plate
Unplug the RJ45 connector [2] (only on DAM 510).
Unscrew the screw [4] on the EMC plate.
Release the EMC plate by pressing the clip [3].
Unscrew the PE screw [1].
4. Disconnect the I/O shielding plate on the top of the system components:
194 | Danfoss A/S © 2019.10
1
2
3
Maintenance, Decommissioning, and
AQ262450196490en-000101 / 175R1170
Disposal
