Operating Guide | VLT® Multiaxis Servo Drive MSD 510 System
1 2 3 4

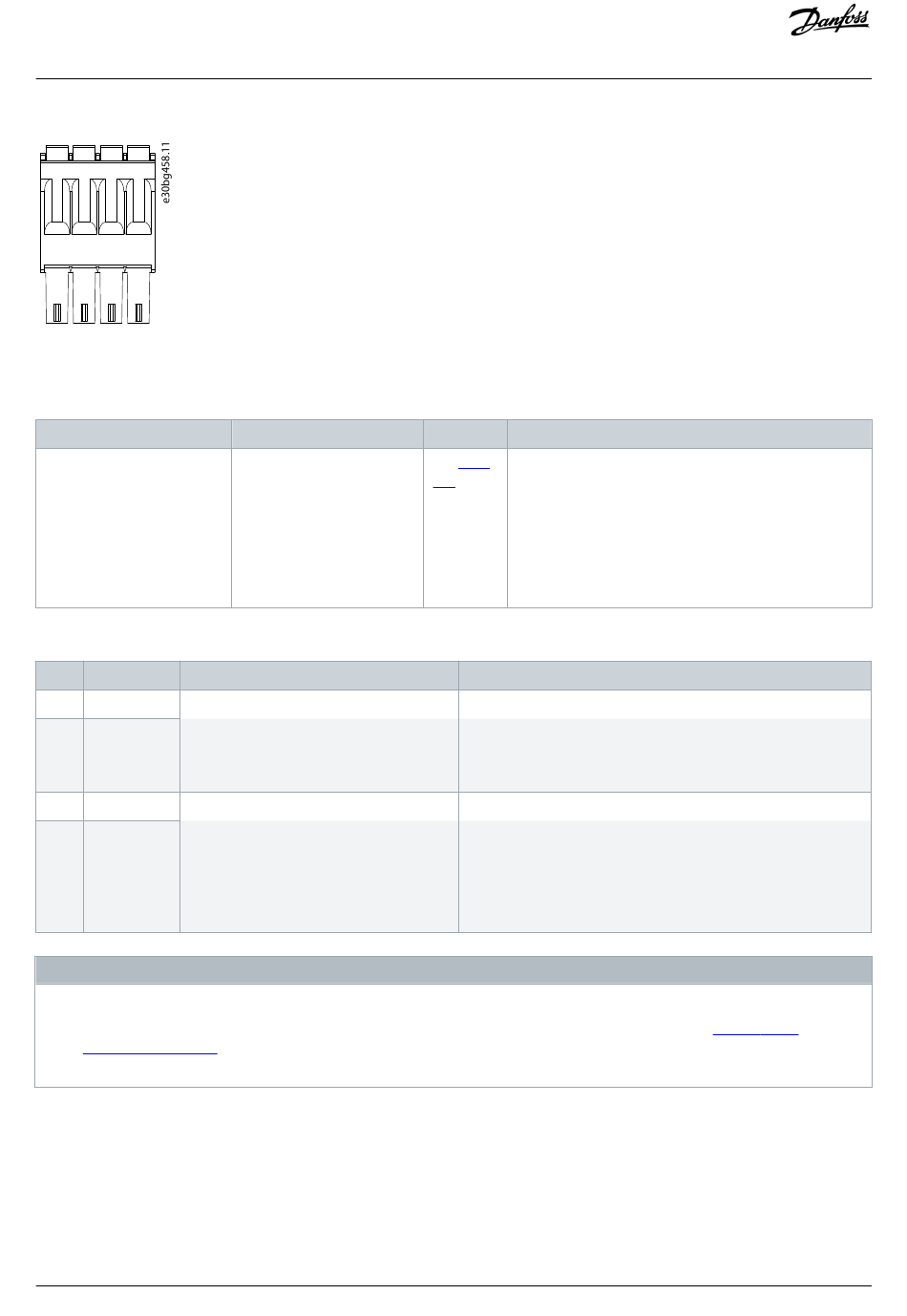

Illustration 133: Brake Connector on SDM 511/SDM 512
Table 130: Brake Connector on SDM 511/SDM 512
Connector name
Mechanical brake and mo-
tor temperature sensor con-
nector
Table 131: Pin Assignment of Mechanical Brake and Motor Temperature Sensor Connector on SDM 511/SDM 512
Pins Description Notes
1 TEMP– Used to connect the motor's temperature
sensor (if present).
2 TEMP+
3 BRAKE– Used to connect the motor's mechanical
brake (if present).
4 BRAKE+
The motor temperature measurement can either be connected to the motor feedback connector (see
-
Feedback Connectors) or the brake and motor temperature sensor connector on the servo drive module SDM 511/
SDM 512. The connectors cannot be connected in parallel.
216 | Danfoss A/S © 2019.10
Description
Used to connect the mo-
tor's mechanical brake (if
present).
N O T I C E
Pins Ratings/Notes
See table Nominal voltage: 24 V
131.
Maximum (peak) voltage: 48 V ±10%
Maximum brake current: 2.5 A
Conductor cross-section range: 0.2–1.5 mm
AWG 16)
Rating/parameter
KTY83–110
KTY84–130
PT1000
Nominal voltage: 24 V
Maximum (peak) voltage: 48 V ±10%
Maximum brake current: 2.5 A
Conductor cross-section range: 0.2–1.5 mm
Specifications
2
(AWG 24–
2
(AWG 24–AWG 16)
11.7.13 Motor
