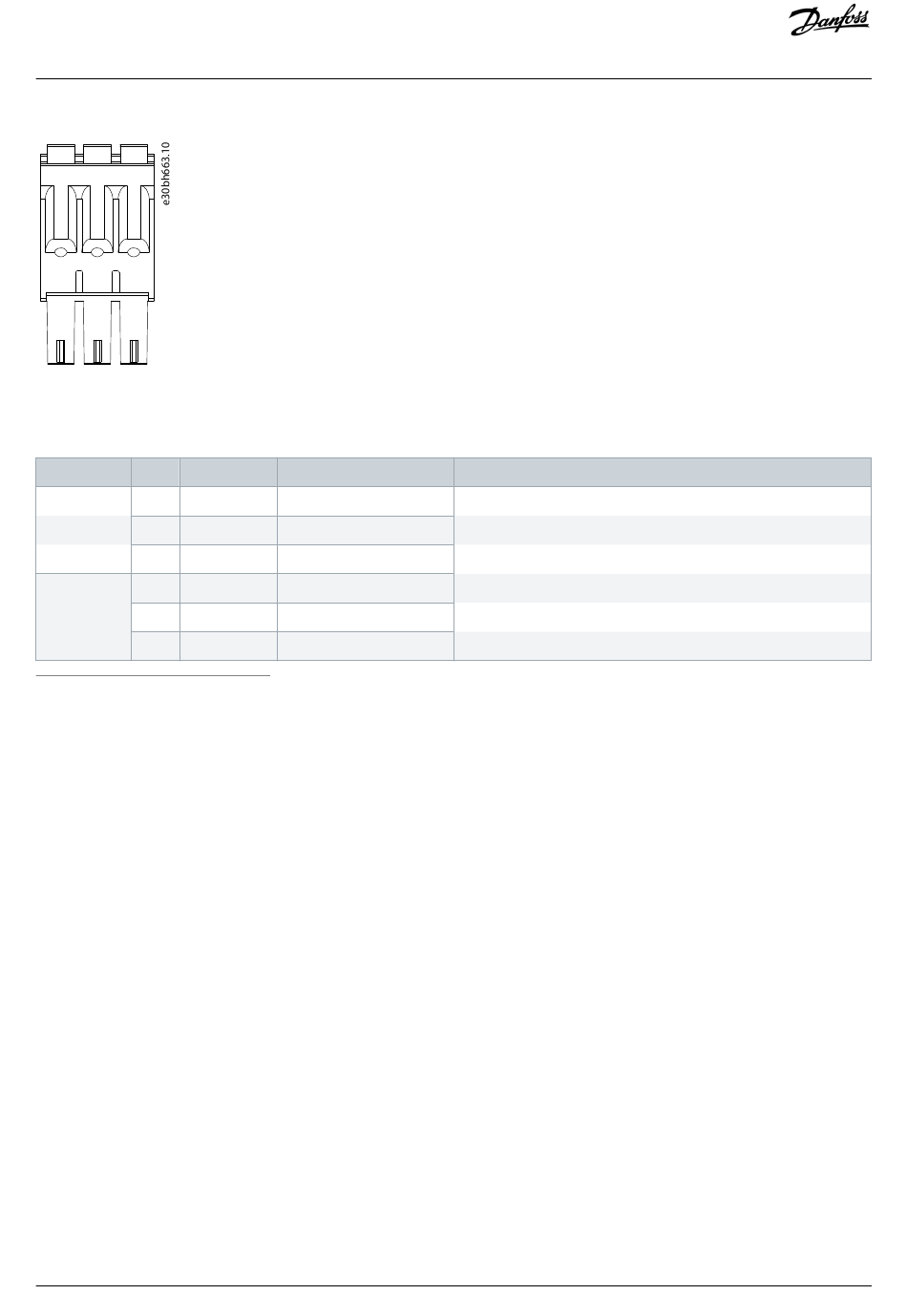

Illustration 143:
Relay Connector for SDM 511 Enclosure Size 2 (FS2)
Table 146: Pin Assignment of Relay Connector on SDM 511/SDM 512
Name
Pins
Description
REL SDM1
11
NC
12
NO
13
COM
21
NC
REL SDM2
(1)
22
NO
23
COM
1
Only on SDM 512.

11.7.10 STO Connectors

11.7.10.1 STO Connectors on SDM 511 and SDM 512

The STO connectors are located on the Servo Drive Modules as follows:
SDM 511: 1 input and 1 output STO connector
SDM 512: 2 input and 2 output STO connectors
Danfoss A/S © 2019.10
Notes
Normally closed, 24 V DC
Normally open, 24 V DC
Common
Normally closed, 24 V DC
Normally open, 24 V DC
Common
Rating/parameter
Nominal current: 2 A
Conductor cross-section range: 0.2–1.5 mm
AQ262450196490en-000101 / 175R1170| 227
Specifications
2
(AWG 24–AWG 16)
