Operating Guide | VLT® Multiaxis Servo Drive MSD 510 System
5.10 Connecting the Decentral Access Module (DAM 510)
5.10.1 Connecting the Cables on the Top of the Decentral Access Module DAM 510
Context:
1
2
5
1 Ethernet connector IN (X1 IN)
3 STO connector IN (STO DAM)
5 External encoder connector (E DAM)

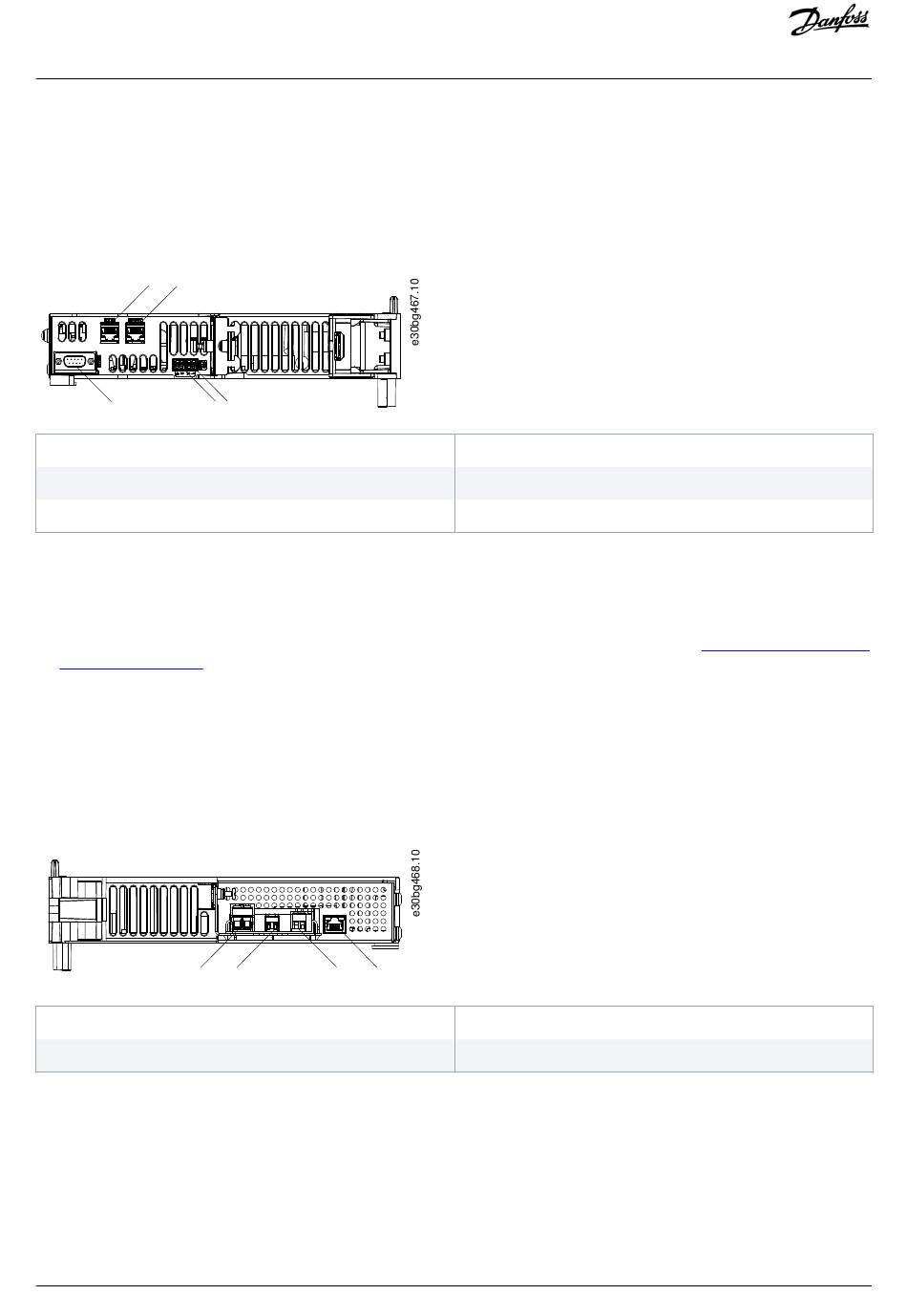

Illustration 52:
Connectors on the Top of DAM 510
Procedure
1. Connect the Ethernet cable from the output of the previous module to the input connector [1].
2. Insert the wires from the STO output of the previous module into the 24 V IN (STO input) connector, see
on the Top of DAM
510.
3. Insert the 24 V IN (STO connector IN) connector [3] into the DAM 510.
4. If required, connect the external encoder connector [5].
5.10.2 Connecting the Feed-In Cable
Context:
4
1 Ethernet connector
3 STO out connector
Illustration 53:
Connectors on the Bottom of DAM 510
Danfoss A/S © 2019.10
4
3
3
2
1
2 Ethernet connector OUT (X3 OUT)
4 STO connector OUT (STO DAM)
2 AUX connector
4 UDC connector
AQ262450196490en-000101 / 175R1170| 73
Electrical Installation
11.7.10.3.1 STO Connectors
