System Management Interrupt Processing

The system interrupts the normal program execution and invokes SMM by generating a
System Management Interrupt (SMI#) to the processor. The processor services the
SMI# by executing the following sequence (see
1. The processor asserts SMIACT#, indicating to the system that it should enable the
SMRAM.
2. The processor saves its state (context) to SMRAM, starting at default address
location 3FFFFH, proceeding downward in a stack-like fashion.
3. The processor switches to the System Management Mode processor environment (a
pseudo-real mode).

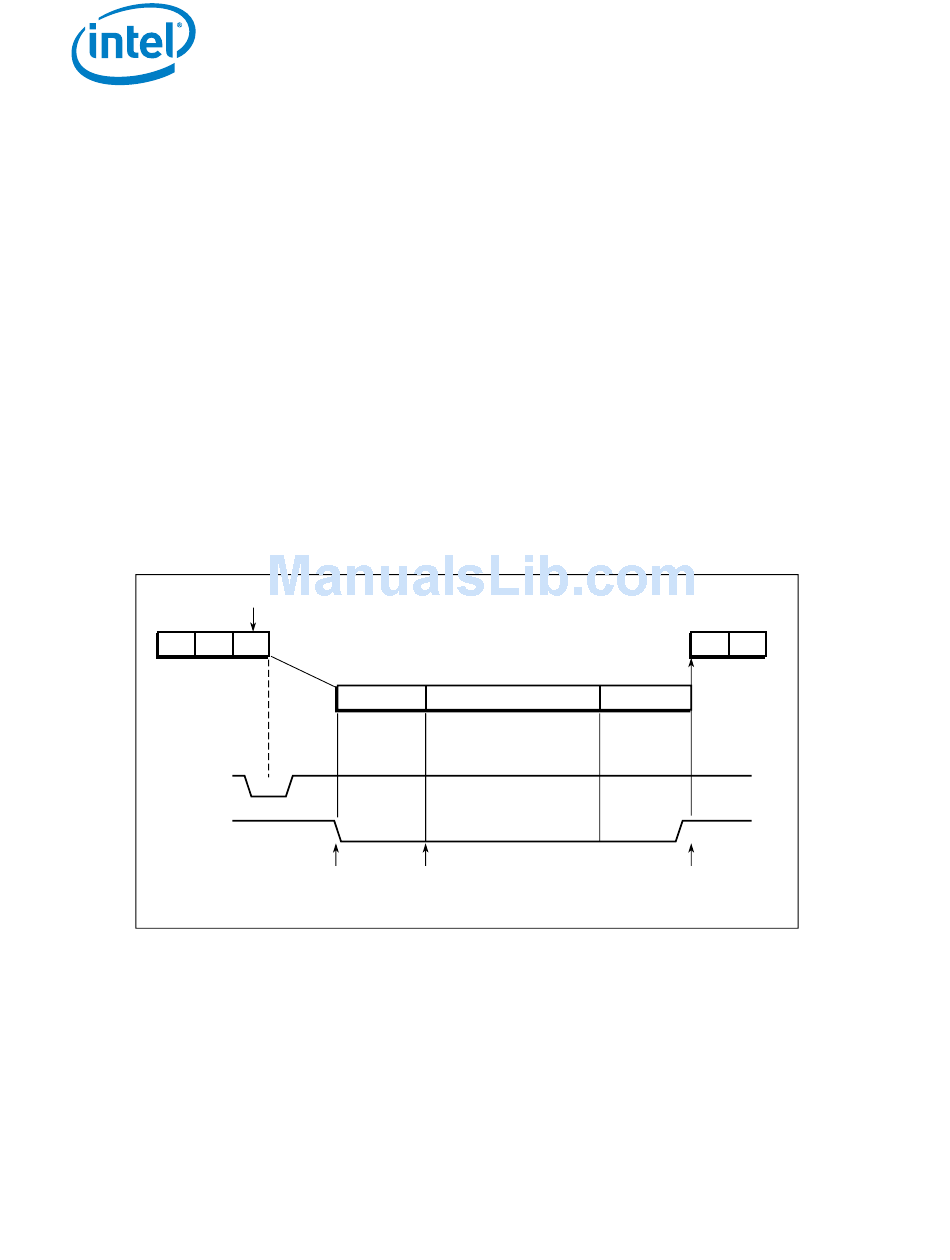

Figure 53.

Basic SMI# Interrupt Service

SMI#
Instr Instr Instr
#1 #2 #3
SMI#
SMIACT#
4. The processor then jumps to the default absolute address of 38000H in SMRAM to
execute the SMI# handler. This SMI# handler performs the system management
activities.
5. The SMI# handler then executes the RSM instruction (which restores the
processors context from SMRAM), de-asserts the SMIACT# signal, and then returns
control to the previously interrupted program execution.
Note: The above sequence is valid for the default SMBASE value only. See the following
sections for a description of the SMBASE register and SMBASE relocation.
®
