A guide for technically qualified persons
SBT2 Server Board
Quick Start Guide
..................................................................... 2
Installation Process Quick Reference ........................................... 4
Remove the Access Cover ............................................................ 5
Install the I/O Shield..................................................................... 6
Rearrange the Standoffs................................................................ 7
Install the Server Board Bumpers................................................. 8
Install the Retention Mechanisms................................................. 9
Install the Server Board ............................................................... 10
Install the Auxiliary Cooling Fan Brackets.................................. 11
Installing Processors.................................................................... 12
Install the Processor Termination Card........................................ 14
Install the Processor Cooling Epac and Auxiliary Fans ............... 17
Memory ....................................................................................... 20
Connect Cables............................................................................ 21
Finish Setting up Your Chassis.................................................... 23
Common Problems ...................................................................... 24
Jumpers ....................................................................................... 25
Server Board Components........................................................... 26
Back Panel Connectors................................................................ 27
................................................................................ 28

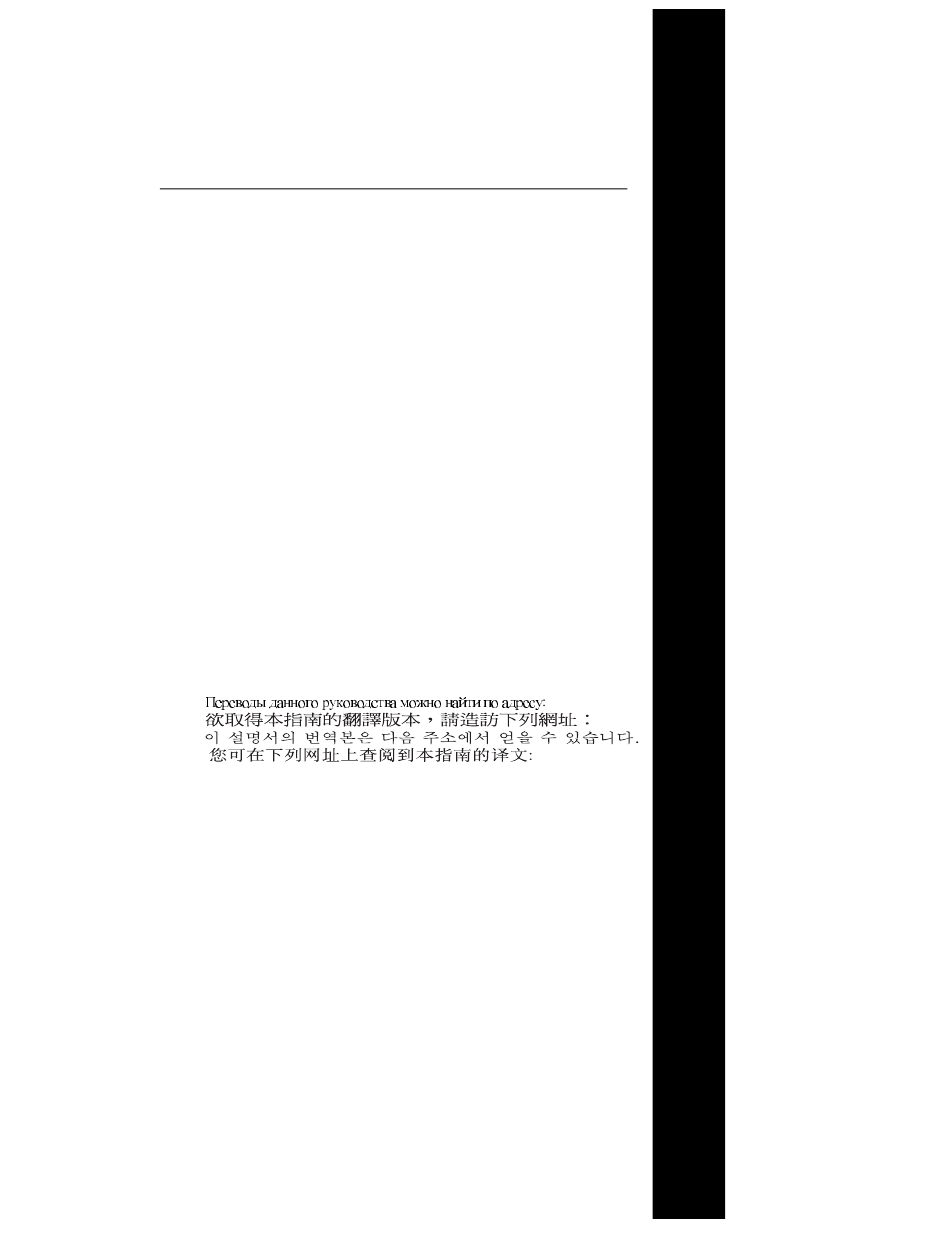

Translations of this guide are available at:
Übersetzungen dieses Handbuchs sind erhältlich bei:
Versiones traducidas de esta guía se encuentran disponibles en:
Des traductions de ce guide sont disponibles à l'adresse:
Le versioni tradotte di questa Guida sono disponibili presso:
As traduções deste guia estão disponíveis em:
http://support.intel.com/support/motherboards/server/sbt2/manual.htm
Copyright © 2000 Intel Corporation. All rights reserved. No part of this document may be
copied, or reproduced in any form, or by any means without prior written consent of Intel.
Intel Corporation (Intel) makes no warranty of any kind with regard to this material, including,
but not limited to, the implied warranties of merchantability and fitness for a particular
purpose. Intel assumes no responsibility for any errors that may appear in this document.
Intel makes no commitment to update nor to keep current the information contained in this
document.
†
Third-party brands and trademarks are the property of their respective owners.
Order Number: A28558-002
Advertisement
Table of Contents
Related Manuals for Intel SBT2
Summary of Contents for Intel SBT2
-
Page 1: Table Of Contents
Copyright © 2000 Intel Corporation. All rights reserved. No part of this document may be copied, or reproduced in any form, or by any means without prior written consent of Intel. Intel Corporation (Intel) makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. -
Page 2: Before You Begin
EMC compliance testing. For more information please contact your local Intel Representative. See the SBT2 Server Board Product Guide for product Safety and EMC regulatory compliance information. This is an FCC Class A device. Integration of it into a Class B chassis does not result in a Class B device. - Page 3 Windows 98/Windows 2000 and use Adobe Acrobat Safety and Regulatory Compliance See the SBT2 Server Board Product Guide for product Safety and EMC regulatory compliance information. Intended uses: This product was evaluated for use in servers that will be installed in offices, computer rooms, and similar locations. Other uses require further evaluation.
-
Page 4: Installation Notes
Before installing the SBT2 server board into your chassis, you must install the processor retention mechanisms. The NIC LED, HD activity LED, and NMI switch on the SC5000 front panel do not function with the SBT2 server board. Installation Process Quick Reference... -
Page 5: Remove The Access Cover
Slide the cover backward a short distance, until it stops. Pull the entire cover outward, straight away from the chassis, to disengage the rows of tabs from the notches in the top and bottom edges of the chassis. Set the cover aside. OM09083 SBT2 Server Board Quick Start Guide... -
Page 6: Install The I/O Shield
Make sure the I/O shield snaps into place all the way around. OM10628 Place the I/O label on the I/O shield. The cut outs on the label are for the top serial port and the parallel port. SBT2 Server Board Quick Start Guide... -
Page 7: Rearrange The Standoffs
Make sure the two positioning standoffs are in holes 17 and 19. Failure to properly rearrange the metal standoffs may cause the server board to malfunction and may permanently damage the server board. OM10429 SBT2 Server Board Quick Start Guide... -
Page 8: Install The Server Board Bumpers
Install the Server Board Bumpers Peel the adhesive backing from three rubber bumpers; stick the bumpers to the chassis wall. 8.375 [212.72] 8.750 [222.25] 4.250 [107.95] 1.625 [41.27] 7.250 [184.15] 7.500 [190.50] OM10422 SBT2 Server Board Quick Start Guide... -
Page 9: Install The Retention Mechanisms
Insert and tighten two screws to hold all the pieces in place. Place the second plastic retention mechanism in place. Insert and tighten four screws to hold it in place. SBT2 Server Board Quick Start Guide... -
Page 10: Install The Server Board
Insert the remaining screws through the mounting holes and into the threaded standoffs. Make sure the board is properly seated, then tighten all the screws firmly, starting with the screws in the center of the board. OM10427 SBT2 Server Board Quick Start Guide... -
Page 11: Install The Auxiliary Cooling Fan Brackets
Insert and tighten four screws to hold the bracket in place. Repeat for the second fan bracket. OM10418 SBT2 Server Board Quick Start Guide... -
Page 12: Installing Processors
Installing Processors NOTE The SBT2 server board only supports processors with the following order numbers: BX80526KB866256, BX80526KB001256, BX80526KB933256. If you are installing only one processor, you must install a termination card in the secondary processor slot. Observe the safety and ESD precautions at the beginning of this document. - Page 13 After you have installed the processor(s), you must configure the speed jumpers. See the CPU Clock Speed table on page 25. Repeat for the second processor. If you are installing two processors, skip the section titled “Install the Processor Termination Card.” SBT2 Server Board Quick Start Guide...
-
Page 14: Install The Processor Termination Card
(A). Fold the top of the air baffle up. Insert the tabs from the outside into the slots (B). Fold the back of the air baffle over (C). SBT2 Server Board Quick Start Guide... - Page 15 Slide the air baffle over the termination card assembly. OM10620 SBT2 Server Board Quick Start Guide...
- Page 16 26 for the location of the secondary processor slot. OM10619 Move the retention wires over the plastic ejectors to hold the processor in place. Make sure the air baffle is inside the retention mechanism and is flush against the termination card. OM10618 SBT2 Server Board Quick Start Guide...
-
Page 17: Install The Processor Cooling Epac And Auxiliary Fans
Install the Processor Cooling Epac and Auxiliary Fans Connect the fan cables to the server board. Do not install the fans in their brackets yet. Let the fans lie on the PCI slots. P9 P10 OM10421 SBT2 Server Board Quick Start Guide... - Page 18 If it isn’t, the cover will not fit properly. NOTE The epac drops straight in. Do not tilt it in; trying to straighten in will break the epac. OM10425 SBT2 Server Board Quick Start Guide...
- Page 19 Clip the fans into place. Make sure that the label on the fan faces the air holes in the chassis (away from the processors). OM10419 SBT2 Server Board Quick Start Guide...
-
Page 20: Memory
DIMMs. Slot 1 is the slot farthest from the processors. Installed DIMMs must be the same speed and must all be registered. For a list of supported memory, call your service representative or visit the Intel Support website: http://support.intel.com/support/motherboards/server/SBT2/compat.htm... -
Page 21: Connect Cables
Connect the front panel cable to the SSI connector on the front panel and the reset (1M7), P26, and P27 connectors on the server board. Remove the chassis intrusion switches from the chassis and install the switches attached to the front panel cable. OM10601 SBT2 Server Board Quick Start Guide... - Page 22 Place the top piece of foam epac into the chassis as shown. OM10420 SBT2 Server Board Quick Start Guide...
-
Page 23: Finish Setting Up Your Chassis
Connect the floppy cable to the server board before you connect the IDE cable. There is only one IDE connector on the SBT2 server board, you must route the cable to either the top drive bays or the bottom drive bays. The cable is not long enough to reach both. -
Page 24: Common Problems
Then close your system and turn it on. The system sometimes works, but is exhibiting erratic behavior. • This is typically the result of using a under-powered power supply. Make sure it’s at least a 350 W power supply. SBT2 Server Board Quick Start Guide... -
Page 25: Jumpers
CMOS clear If these pins are jumpered, the CMOS settings will be cleared on the next reset. These pins should not be jumpered for normal operation. SBT2 Server Board Quick Start Guide... -
Page 26: Server Board Components
BB. 33 MHz/64-bit PCI connector CC. 66 MHz/64-bit PCI connector Power connector Front panel connector P26 DD. 66 MHz/64-bit PCI connector IDE connector EE. Half length 33 MHz/32-bit PCI Speaker connector connector Floppy drive connector FF. I/O ports SBT2 Server Board Quick Start Guide... -
Page 27: Back Panel Connectors
Back Panel Connectors OM10424 USB connectors Serial port 2 connector Serial port 1 connector NMI switch Keyboard connector Mouse connector Parallel port connector Video connector Network connector SBT2 Server Board Quick Start Guide... -
Page 28: Getting Help
Or contact your local dealer or distributor. Technical Training & Support If you are registered in the Intel Product Dealer Program (North America), the Genuine Intel Dealer Program (Asia-Pacific Region), or the Intel Product Integrator Program (Europe/Latin America), you are eligible for technical training and support.
