1D – 14 ENGINE COOLING

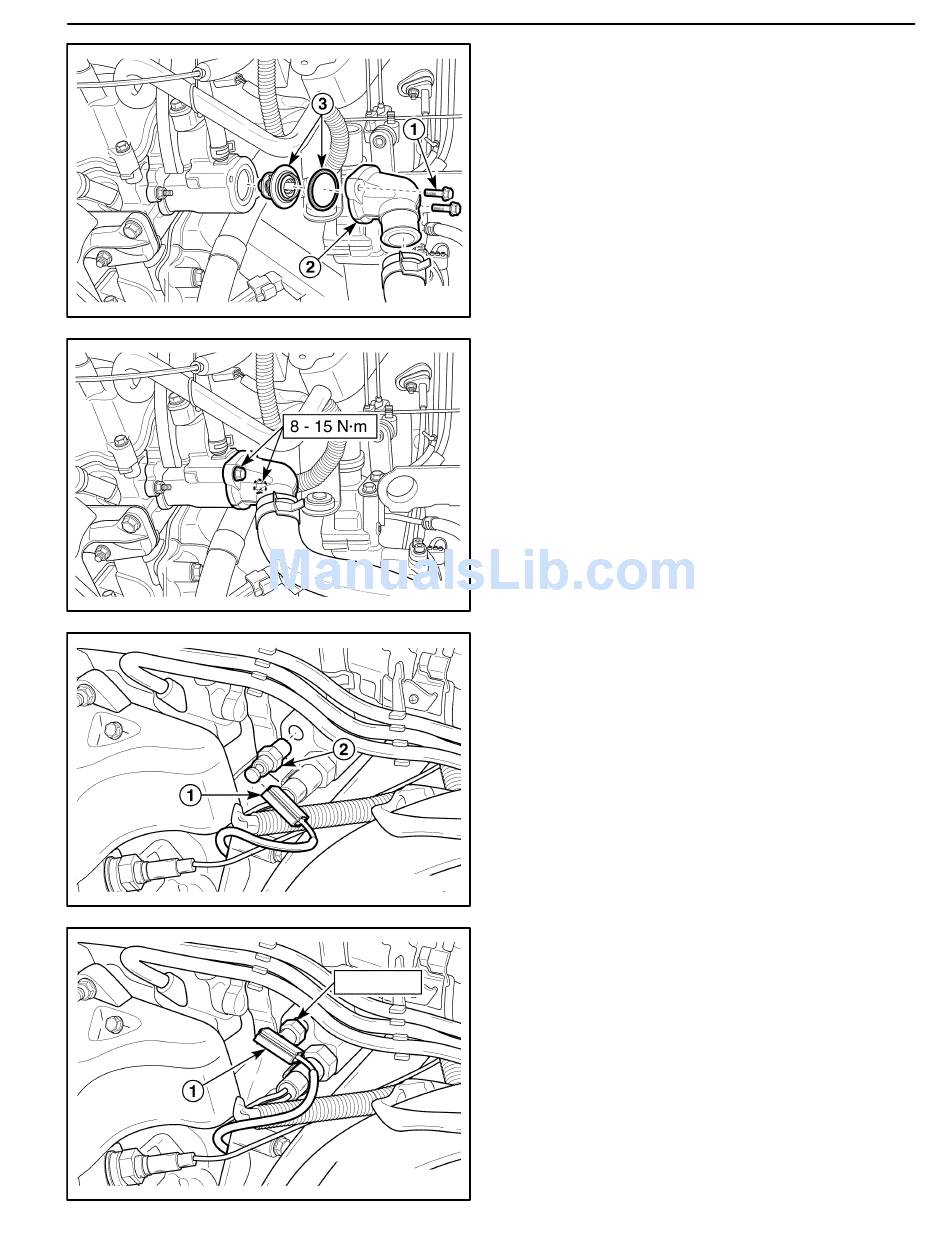

4. Remove the thermostat.
5. Check the gasket for crack or other damage.
6. Inspect the valve seat for foreign matter that could
7. Inspect the thermostat for proper operation. Refer to
MAA1D020
Installation Procedure
1. Install the thermostat with the bolts and the thermo-
2. Secure the upper radiator hose to the thermostat
3. Refill the engine cooling system. Refer to "Draining
4. Install the air filter assembly. Refer to Section 1B,
MAA1D011

COOLANT TEMPERATURE SENSOR

Removal Procedure
1. Disconnect the negative battery cable.
2. Disconnect the lower radiator hose and drain the
3. Remove the coolant temperature sensor.
D102D515
Installation Procedure
1. Install the coolant temperature sensor into the
10 NSm
2. Connect the lower radiator hose and refill the coolant.
3. Connect the negative battery cable.
D12D516A
D Remove the bolts.
D Remove the thermostat housing.
D Remove the thermostat with the gasket.
prevent the valve from seating properly.
"Thermostat Test" in this section.
stat housing.
Tighten
Tighten the mounting bolts to 8–15 NSm (71–130
lb-in).
housing with a hose clamp.
and Refilling the Cooling System" in this section.
SOHC Engine Mechanical.
coolant. Refer to "Draining and Refilling the Cooling
System" in this section.
D Disconnect the electrical connector (1).
D Remove the coolant temperature sensor (2).
threaded hole in the intake manifold.
Tighten
Tighten the coolant temperature sensor to 10 NSm
(89 lb-in).
D Connect the electrical connector to the coolant
temperature sensor (1).
Refer to "Draining and refilling the cooling system" in
this section.
DAEWOO M-150 BL2
