Non-Mobile Groups and AutoTracker VLANs

Spanning Tree and Non-Mobile Groups

Each Group uses one Spanning Tree for bridging. The OmniS/R supports both 802.1d and
Spanning Tree protocols. The Spanning Tree state for the port is Forwarding. Ports that
IBM
are in Blocked state, or in another non-Forwarding state, will not receive frames from the

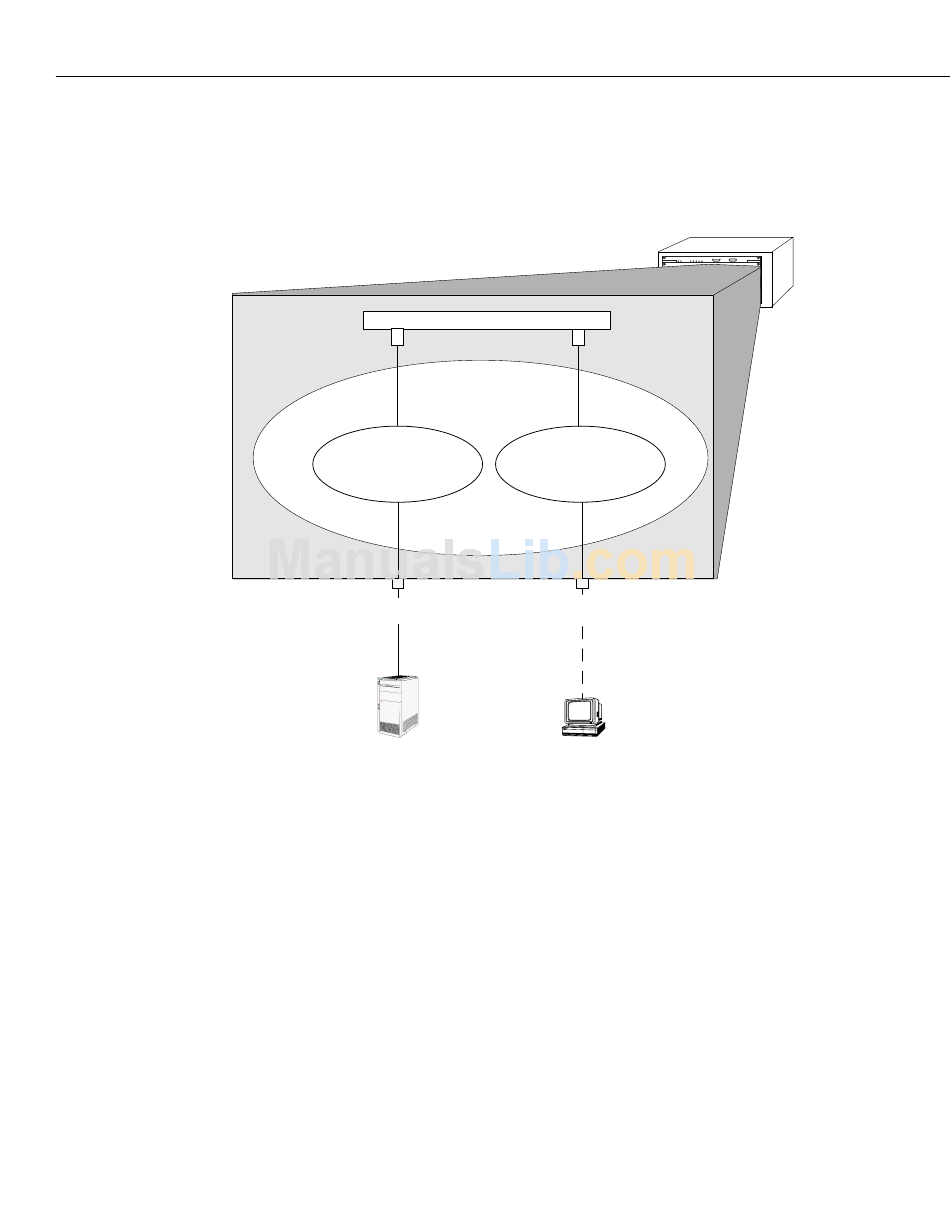

router port. The figure below illustrates this concept.
Routed frames received
because attached port
is in Forwarding state.
Page 19-16
Virtual Router
Group 2
Ports 1 and 2
1
VLAN
(default #1)
VLAN
Port 1: Forwarding
State
Server
Spanning Tree State and Routed Frames
OmniS/R
12345678
123456
2
VLAN
Port 2: Blocked
State
Routed frames not
received because attached
port is in Blocking state.
Workstation
