The WAN Port Software Menu
Universal Serial Port Example

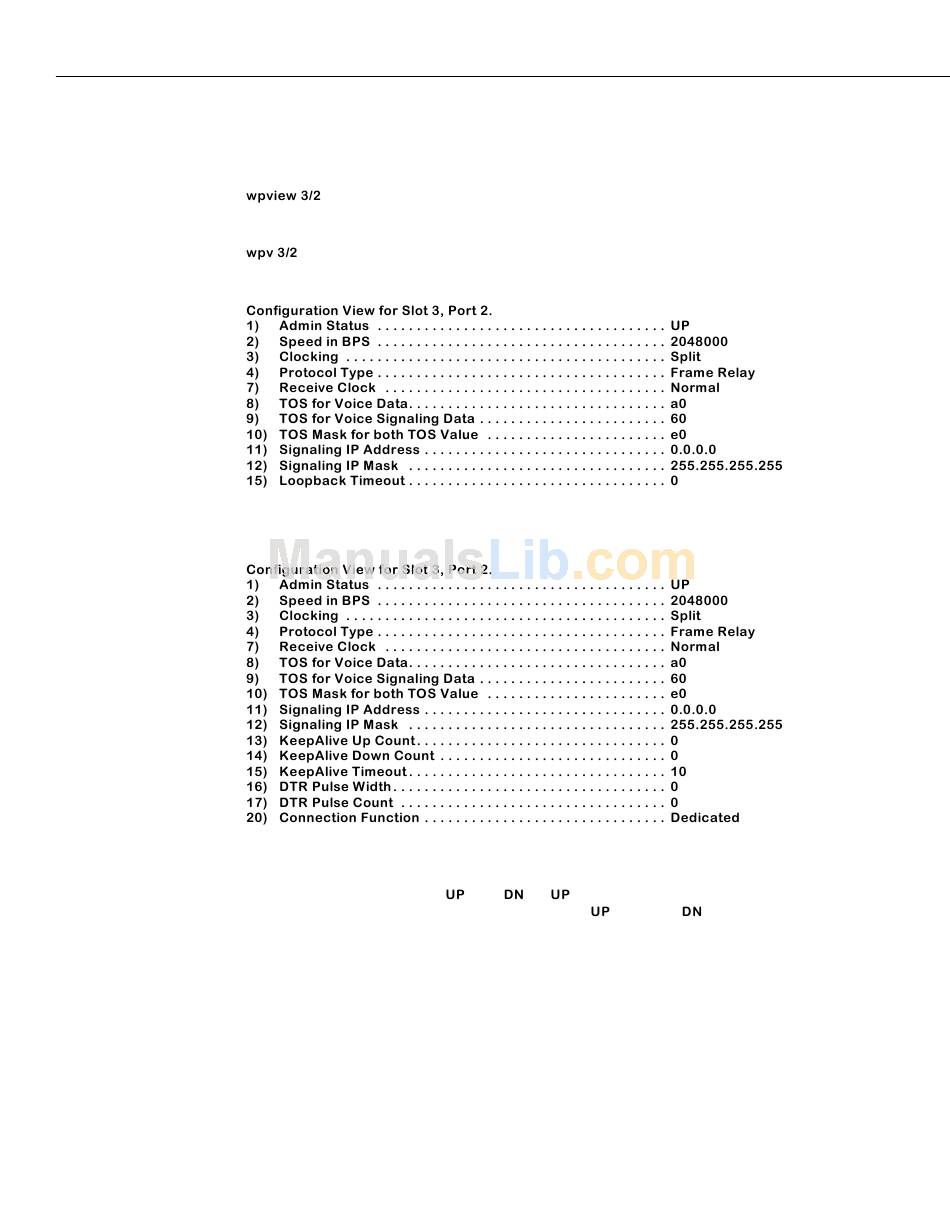

The following example displays the configuration view screen for a universal serial port (port
2). To view 3/2, enter:
or
If the serial port is using Frame-Relay, a screen similar to following displays:
If the serial port is using PPP, a screen similar to following displays:
Admin Status
The options for the Admin Status are
can transmit data as long as its Operational Status is also
pass data even if its physical connection is good.
Speed in BPS
This field displays the access rate for the Frame Relay line to the service provider. This
parameter is the speed of the entire connection, not an individual virtual circuit. For
example, if you have a 56 kbps line to your service provider, this field should be set to
56000. A full T1 line would have an access rate of 1,544,000 bps, and a full E1 line would
have an access rate of 2,048,000 bps. For either T1 or E1, you can also have a fractional
service with an access rate that is a multiple of 64 kbps.
Page 28-32
and . If , the port has been enabled and
. If set to , the port will not
