Alcatel Omni Switch/Router User Manual page 601

˜
Management frames from the
NMS workstation are sent to
the Mirrored Port.

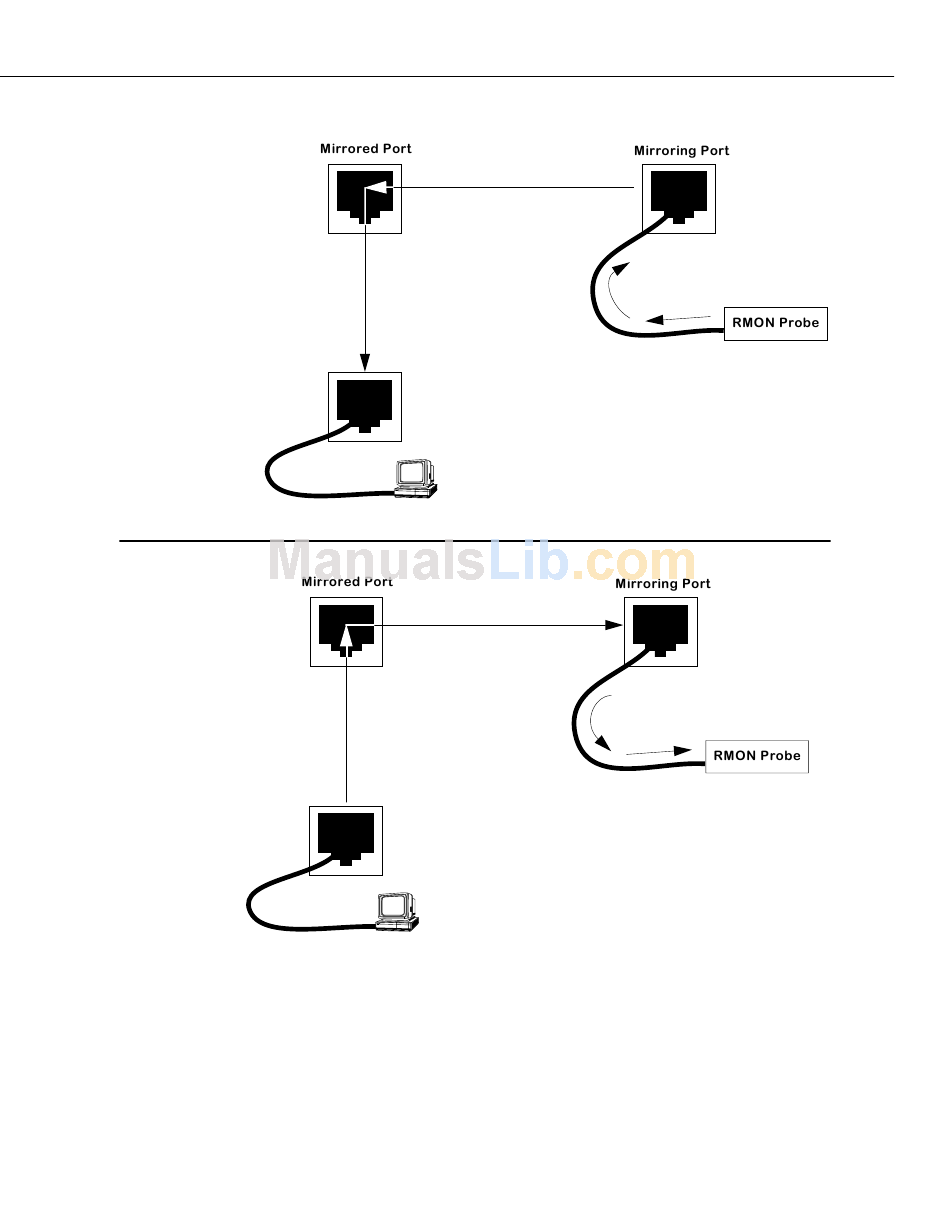

Port Mirroring Using an External RMON Probe
The Mirroring Port is not accessible from the NMS
device. From the NMS station, the Mirroring Port will
appear disabled or down.
–
RMON probe frames sent
from the Mirroring Port.
—
RMON probe frames from
the Mirroring Port appear to
come from the Mirrored Port
when the NMS workstation
receives them.
NMS
Workstation
™
Port mirroring sends cop-
ies of management frames
to the Mirroring Port.
NMS
Workstation
o Important Note o
Port Mirroring
Page 19-59
