Alcatel Omni Switch/Router User Manual page 948

Adding a PPP Entity

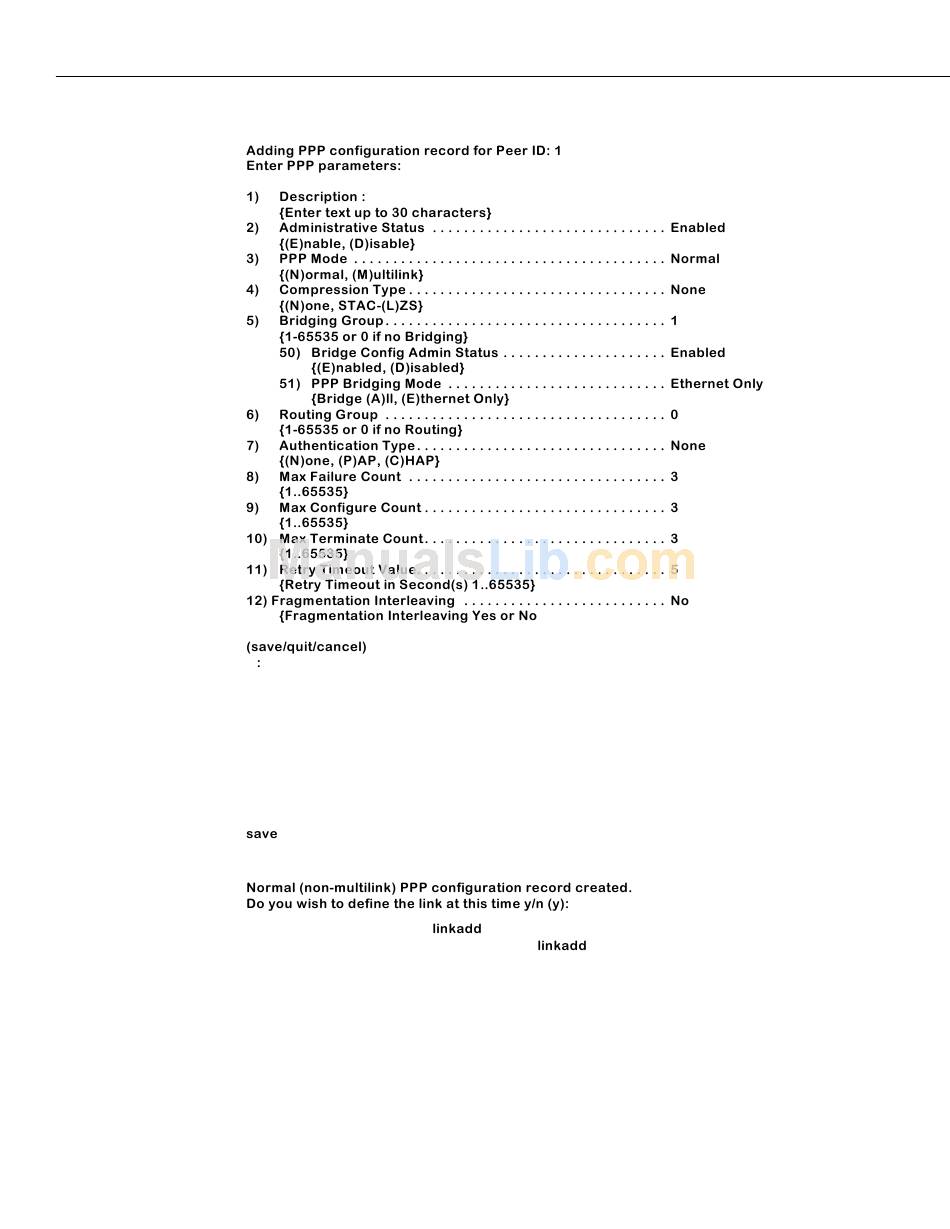

A screen similar to the following will display:
The prompts for Bridging, Routing, Authentication, and Fragmentation Interleaving
(numbered 5, 6, 7, and 12 above), contain suboptions that are displayed only if you have
enabled those features. These expanded menus are shown below in the relevant sections
describing the UI fields.
3. When you have made the changes you need to the prompts on this screen, enter the
following command to save the PPP Entity:
The following prompt will display:
If you answer yes to this prompt, a command will be automatically executed for
this PPP Entity. For complete details on using the command, see the relevant
section in Chapter 31, entitled "WAN Links."
If you answer No to this prompt, a message will appear indicating that the link was not
added, but the PPP Entity itself was added.
Page 30-10
