WAN Modules

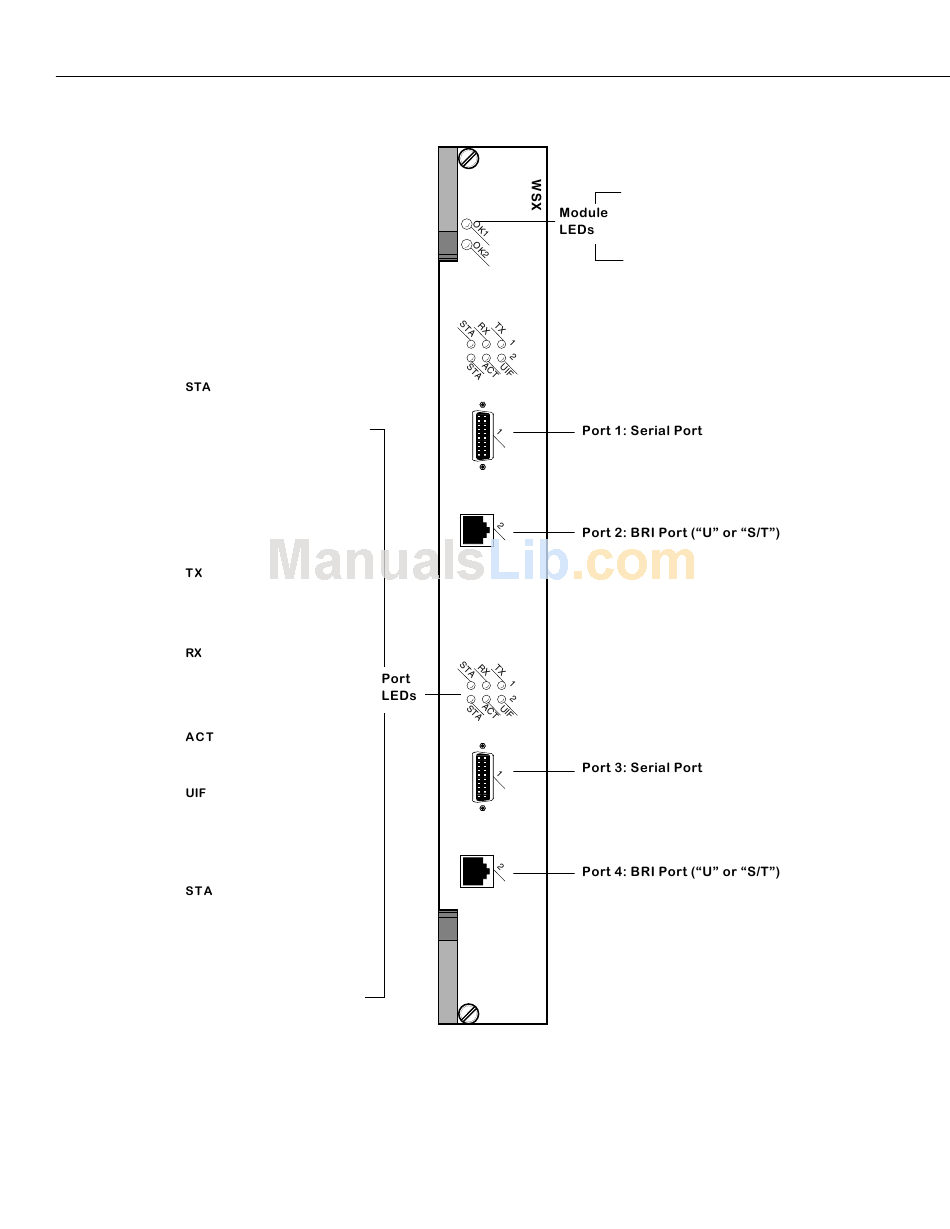

The WSX-BRI module includes one
set of LEDs for each port. The LEDs
for a given port are located in the
set labeled with the port number. If
the HSX module contains two WSX-
BRI daughter cards, the second set
of ports (one Serial and one BRI)
are numbered as Ports 3 and 4
respectively, and include their own
separate set of LEDs that function
exactly like those related to Ports 1
and 2.
(Status). On Green con-
tinuously when the port con-
nection is operational. Off
when the port is disabled or
the cable is detached. Blink-
ing On/Off if cable is attached
but receive control data is
detected as down.
This LED also blinks during
initialization, diagnostics, or
when invalid data is being
exchanged on the port.
( T r a n s m i t ) . O n " h a l f -
bright" Green when idle and
Green with occasional flickers
when the port is transmitting
data.
(Receive). On "half-bright"
Green when idle and Green
with occasional flickers when
the corresponding port is
receiving data.
(Activity). On Green
when the ISDN-BRI port is
sending or receiving data.
("U" Interface). On Green
when the ISDN-BRI port is
configured as a "U" type of
interface. Off when the port is
configured as an "S/T" type of
interface.
(Port 2/4 Status). On
Green continuously when the
port connection is operation-
al. Off when the BRI port is
d i s a b l e d o r t h e c a b l e i s
detached. This LED blinks
during initialization.
Page 3-38
WAN 2-Port Serial and 2-Port BRI-ISDN Switching Module
Please refer to 2-Port WAN
Frame Relay Switching Mod-
ule on page 3-28 for further
information on these LEDs.
