Viewing Frame Relay Services

Viewing Frame Relay Services
You can view all Frame Relay services for an entire switch, a single
port. Use the
WSX
The <slot>, <port> and <service number> parameters are not required but may be specified
to narrow the range of the information displayed.

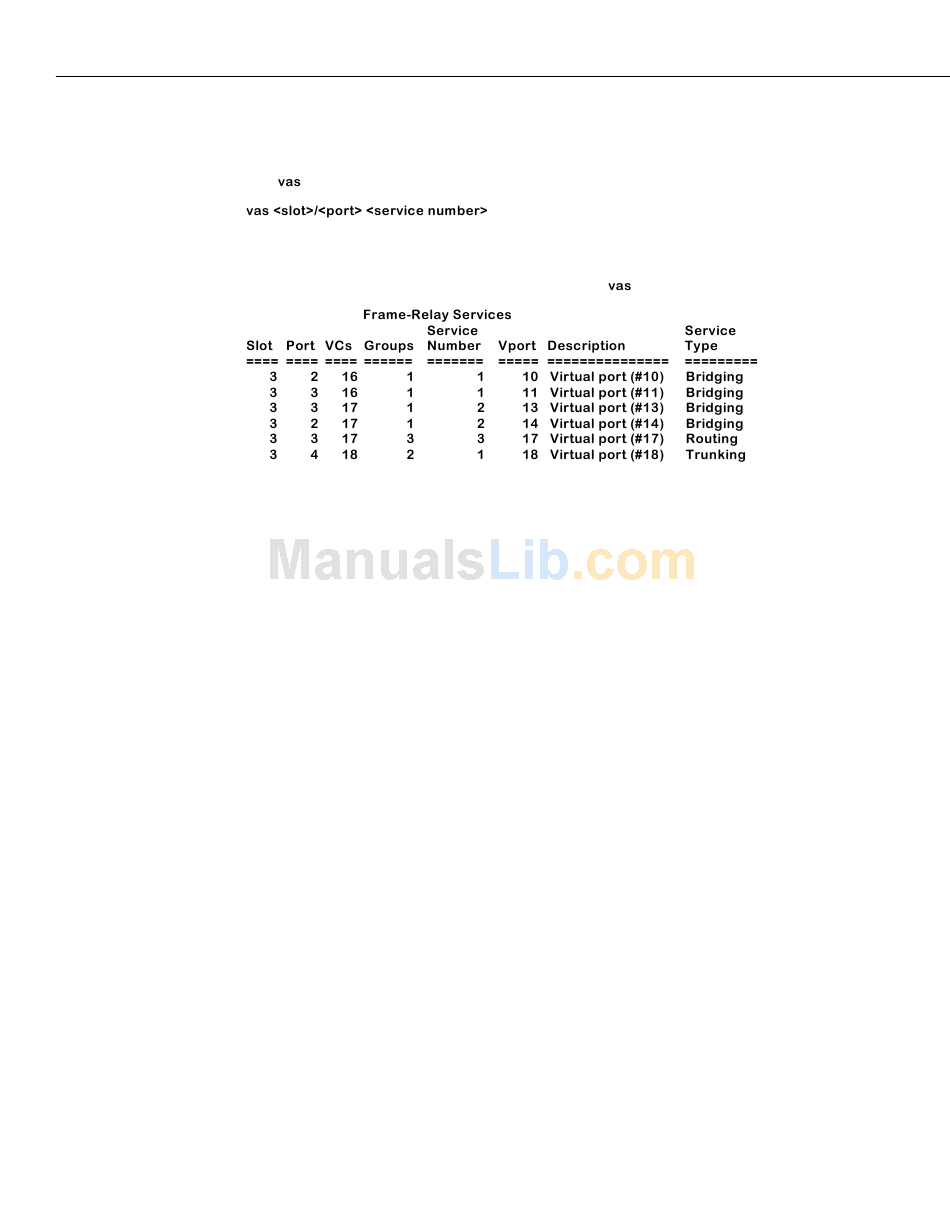

The following is an example of the Frame Relay portion of the
The following sections describe the columns in this table.
Slot
The slot number where this
Port
The port number to which this service maps. A port may be listed more than once if multiple
virtual circuits or multiple services are configured for it. The port is listed for each virtual
circuit and for each service. For example, in the sample screen above Port 3 is listed three
times—twice as a bridging service for virtual circuits 16 and 17 and again as a routing service
for virtual circuit 17.
VCs
The of the virtual circuit supported by this service. A virtual circuit can be attached to
DLCI
more than one port and be supported by more than one service type.
Groups
The Group or Groups associated with this service. Only one Group is supported by a bridg-
ing or routing service. Trunking services may support multiple Groups.
Service Number
Each service for a port is assigned a number. This column lists the number for this service on
this particular port. Note that in the sample screen, Port 2 has two services associated with it
(Bridging for VC 16 and 17) and Port 3 has three services associated with it (Bridging for VC
16 and 17 and Routing for VC 17).
Page 29-64
command with the following parameters:
module is installed.
WSX
board, or a single
WSX
command display:
