Alcatel LINKHUB HH71VM User Manual

Lte cat7 home station
Hide thumbs
Table of Contents

Advertisement

Quick Links

User Manual

Advertisement

Table of Contents
loading

Related Manuals for Alcatel LINKHUB HH71VM

Summary of Contents for Alcatel LINKHUB HH71VM

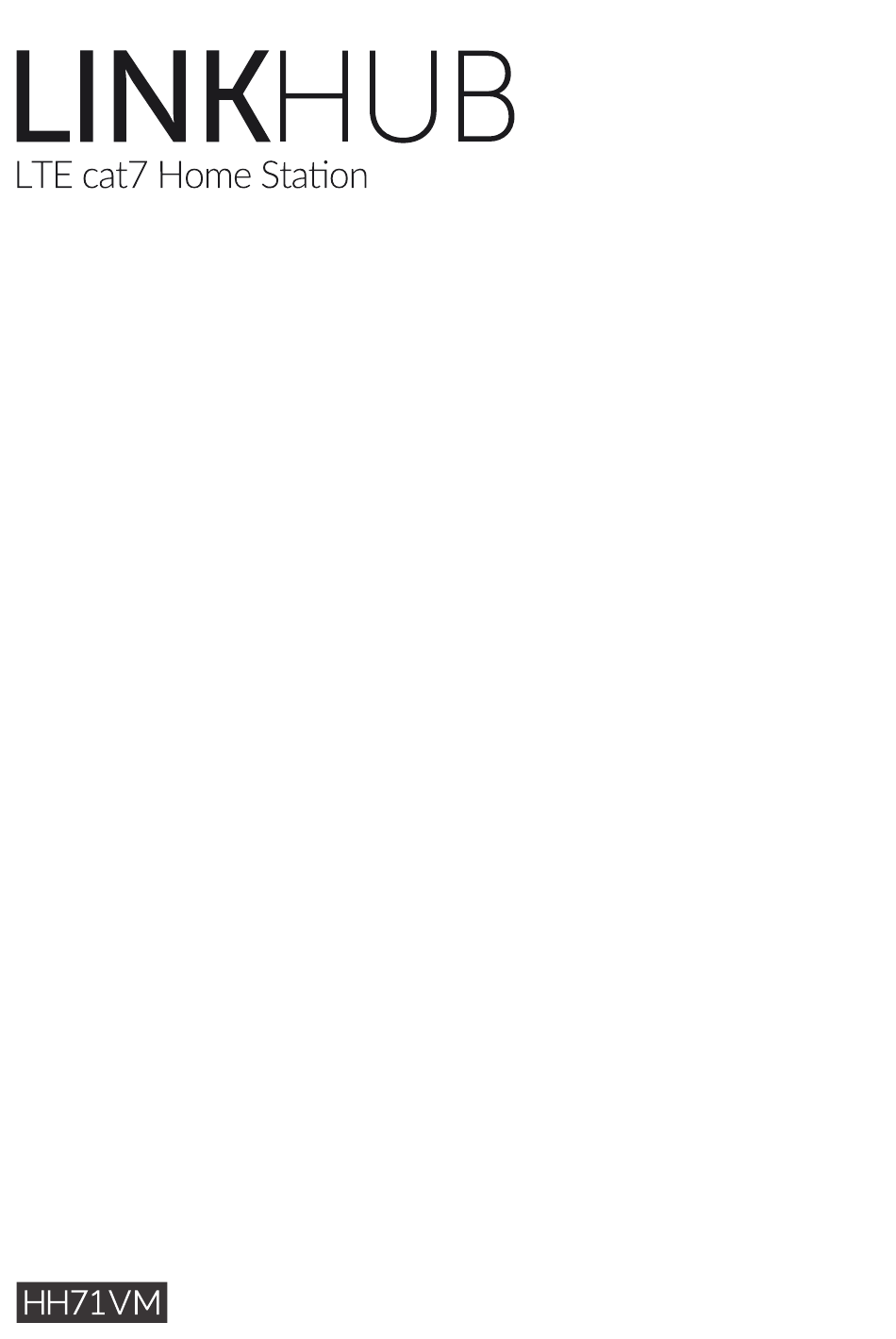

  • Page 1 User Manual...

  • Page 2: Table Of Contents

    Table of contents Safety and use ........................1 1. Overview ........................5 System requirements ..................5 Device description ...................5 2.. Getting.started.with.your.device ................7 Insert Micro SIM ....................7 Connect the power adapter ................8 Optional: Installing the external antennae ..........9 How to connect in Wi-Fi mode ..............9 3..

  • Page 3: Safety And Use

    Safety and use We recommend that you read this chapter carefully before using your device. The manufacturer disclaims any liability for damage, which may result as a consequence of improper use or use contrary to the instructions contained herein. CONDITIONS OF USE: Switch the device off before boarding an aircraft.
  • Page 4 This symbol on your device and the accessories means that these products must be taken to collection points at the end of their life: - Municipal waste disposal centres with specific bins for these items of equipment; - Collection bins at points of sale. They will then be recycled, preventing substances being disposed of in the environment, so that their components can be reused.
  • Page 5 The World Health Organization has stated that present scientific information does not indicate the need for any special precautions for the use of mobile devices. They recommend that if you are interested in further reducing your exposure then you can easily do so by limiting your usage or keep the device away from the head and body.
  • Page 6 802.11 g/n ≤ 18 dBm 802.11 a/ac ≤ 18 dBm Regulatory.information Hereby, TCL Communication Ltd. declares that the radio equipment type Alcatel HH71VM is in compliance with Directive 2014/53/EU. Additional information The full text of the EU declaration of conformity is available at the following internet address: http:/ /www.alcatelmobile.com/EU_doc...

  • Page 7: Overview

    to paid updates and upgrades in the future; TCL Communication Ltd. waives any responsibility regarding such additional costs, which shall be borne exclusively by the purchaser. TCL Communication Ltd. shall not be held responsible for the lack of availability of any application, as its availability depends on the country and the operator of the purchaser.
  • Page 8 WPS button Antenna port LAN / WAN port Power connector Power button • Once connected to a power outlet, your Cat7 Router will automatically power on. • To power off your device, press and hold the power button for 3 seconds. •...

  • Page 9: Getting.started.with.your.device

    Icon Description • Solid yellow: Connected to 2G. • Solid green: Connected to 3G. • Solid blue: Connected to 4G. • Solid Purple: Connected to a Ethernet network. • Solid red: No Micro SIM available or the device is not registered to the network.

  • Page 10: Connect The Power Adapter

    Micro 2.2 Connect.the.power.adapter Follow the illustration below to plug in the power adapter. Once connected to a power outlet, your Cat7 Router will automatically power on.

  • Page 11: Optional: Installing The External Antennae

    To prevent interference caused by radio signals, place the Cat7 Router at least one metre away from phones and other electrical devices. 2.3 Optional:.Installing.the.external.antennae In areas with poor signal reception, connect external antennae to the two ports labelled 'MAIN and DIV' to improve signal reception. Warning:.
  • Page 12 URL:XXX.XXX.X.X SSID:yyy WiFi Key:zzz XXX.XXX.X.X URL:XXX.XXX.X.X SSID: SSID:yyy yy y XXX.XXX.X.X WiFi Key: WiFi Key:zzz SSID: yy y WiFi Key: Step 3: Setting up a Wi-Fi connection Setting.up.a.Wi-Fi.connection.manually: From your Wi-Fi enabled client, perform a scan for wireless networks. Connect to the network name that matches the SSID found on the device label.

  • Page 13: Configuring.your.cat7.Router

    Scan the QR code. Alternatively, you can also search for “Alcatel WiFi Link” in the App Store or Google Play Store. Download the Alcatel Wi-Fi Link app from App Store or Google Play store. Click on Alcatel Wi-Fi Link app icon to log in to the management page. You.can.find.the.default.password.on.the.label.on.the.bottom.of.the.device. IOS | Android 3.2 Configure.your.Cat7.Router.via.Web.page...
  • Page 14 • Mozilla Firefox • Safari • Internet Explorer 9.0 or later. • Microsoft Edge • Opera • Google Chrome 3.2.1 How.to.log.in.to.the.Home.page Open your web browser. Input http:/ /192.168.1.1 into the address bar and press enter. The Home page will then load, as shown in the image below. Log in to change your Cat7 Wi-Fi device SSID and password, or change other basic settings.

  • Page 15: Status

    3.3 Status Status allows you to view your device connection information including Internet (SIM) and Ethernet (WAN). 3.4 Home 3.4.1 Status Status allows you to view your device information including internet, LAN, WAN and Wi-Fi. You can connect, disconnect or change the SSID of the device here. 3.4.2 Statistics The internet statistics can be seen here, both for your current session and your total traffic for the month.
  • Page 16 Drafts: Unsent messages are saved here. New.message:.Write a new message. SMS.Settings:.Configure settings for messaging. How to read an SMS: Left-click the content of the message you wish to read. How to send an SMS: Click on SMS. Left-click on New.message. Input the recipient's number and message content.

  • Page 17: Settings

    How to enable SMS delivery reports: Click SMS.Settings. Click Enable. How to disable SMS delivery reports: Click SMS.Settings. Click Disable. SMS.Settings: SMS delivery reports: You can enable or disable delivery reports here. SMS centre: This is preset and is non-editable. 5.

  • Page 18: Mobile Data

    5.2 Mobile Data 5.2.1 Network connection Network connection allows you to configure connection mode, data roaming and IP mode. 5.2.2 Profile.management Profile management allows you to set up a new APN profile or edit/delete existing profiles. Add a new profile 1) Click New.

  • Page 19: Wan

    5.2.3 Network.settings You can set the network search mode to either Auto or Manual, and change the network mode to Auto, 2G only, 3G only or 4G only. Make sure that you click Apply after making any changes. 5.3 WAN 5.3.1 WAN status Here you can view detailed information on the wide area network (WAN), including IP address, subnet mask, gateway, DNS server, etc.

  • Page 20: Wi-Fi

    DHCP Server will automatically assign IP addresses to devices in the network. DHCP Server is disabled by default. Enabling.the.DHCP.Server DHCP: If DHCP server is enabled, the Linkhub allocates IP addresses to clients connected to it. Disabling.the.DHCP.Server If DHCP server is disabled, the Linkhub does not allocate IP addresses to clients connected to it and IP addresses must be entered from each client.

  • Page 21: Security

    5.5.3 WPS The Wi-Fi Protected Setup (WPS) is a standard used to set up wireless connections in an easy way. Connecting.a.Client.to.LinkHub.Through.PIN. In Personal Information Number (PIN) mode, you can connect a client to LinkHub WiFi by simply entering the client’s PIN on the LinkHub ‘s web management page.
  • Page 22 5.6.2 WAN.ping For improved security, your device will not respond to ping commands when this function is disabled. 5.6.3 LAN IP filter By default, any device connected to your Cat7 Router is allowed to access the internet. You can use the IP filter to block specific devices from accessing the internet.

  • Page 23: Qos

    5.6.7 DMZ If external users cannot access certain network services provided by the LAN, you can enable DMZ and set a new Host IP address. Click to enable it. Enter an appropriate Host IP address and then click Apply. 5.6.8 UPnP Universal Plug and Play (UPnP) is a set of networking protocols that allows devices connected to your Cat7 Router to discover each other and establish functional network services for data sharing, communications, and entertainment.

  • Page 24: Device Management

    Click Check. for. updates. Your Cat7 Router will check if there is an update available. If one is found, you may click Download. Once the file has been downloaded successfully, you can click Update. Note: Do not power off your router during the update process as this may damage the device.

  • Page 25: Warranty

    7. Warranty Your device is warranted against any defect or malfunctioning which may occur in conditions of normal use during the warranty period of twenty-four (24) months from the date of purchase as shown on your original invoice. Accessories sold with your device are also warranted against any defect which may occur during the first twelve (12) months from the date of purchase as shown on your original invoice.

  • Page 26: Q&A

    but not limited to commercial or financial loss or damage, loss of data or loss of image to the full extent those damages can be disclaimed by law. Some countries/states do not allow the exclusion or limitation of indirect, incidental or consequential damages, or limitation of the duration of implied warranties, so the preceding limitations or exclusions may not apply to you.
  • Page 27 If MAC address filtering is enabled, make sure your device MAC address is on the approved list. If Parental Control is enabled, make sure your device name and MAC address is not under parental control. What.should.I.do.if.I.experience.any.issue.with.the.device? Restart the device. Reset the device to its factory settings. Contact your service provider.
  • Page 28 What.should.I.do.if.I.see.the.SSID.but.the.device.fails.to.connect? Make sure you have entered the correct Wi-Fi key. What.should.I.do.if.the.network.indicator.is.solid.red? When there is no Micro SIM, no service, or the device is not registered to the network, the network indicator on Cat7 Router is solid red. If using a Micro SIM: - Make sure the Micro SIM is valid and inserted correctly.
  • Page 29 What. should. I. do. if. it. says. "No. SIM". or. "Invalid. SIM". on. the. Cat7. Router. configuration.page?. Possible reasons for this may be that there is no Micro SIM inserted in the device, it is inserted incorrectly, or the Micro SIM is disabled. Try removing your Micro SIM and reinserting it.
  • Page 30 How.can.I.check.usage.data?. Log in to the Home page (refer to "How can I access the Home page?"). Go to Statistics > Mobile Data. How.can.I.manually.search.for.the.network?. Log in to the Home page (refer to "How can I access the Home page?"). Go to.Settings > Mobile Data > Network connection. Select Manual from the network connection mode.
