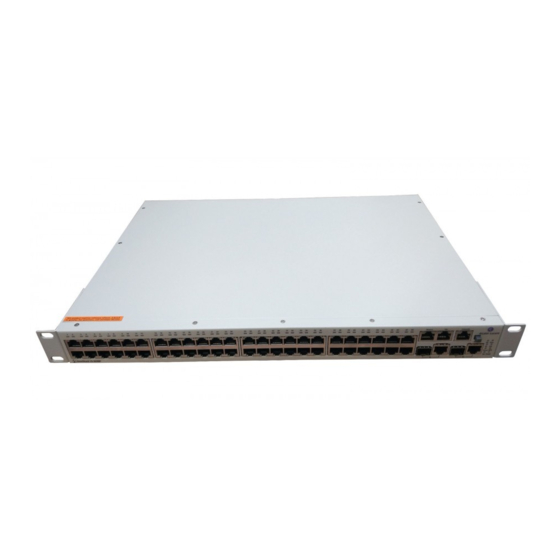

Alcatel OS-LS-6248 Getting Started Manual

Alcatel OS-LS-6248 Getting Started Manual

Omnistack ls 6200 series
Hide thumbs Also See for OS-LS-6248:
Table of Contents

Advertisement

Part No. 060203-10, Rev. C
January 2007
OmniStack® LS 6200 Series
Getting Started Guide
Installationsanleitung
www.alcatel.com
Downloaded from
www.Manualslib.com
manuals search engine

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OS-LS-6248 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Alcatel OS-LS-6248

  • Page 1 Part No. 060203-10, Rev. C January 2007 OmniStack® LS 6200 Series Getting Started Guide Installationsanleitung www.alcatel.com Downloaded from www.Manualslib.com manuals search engine...
  • Page 2 Additionally, with 24-hour-a-day access to Alcatel’s Service and Support web page, you’ll be able to view and update any case (open or closed) that you have reported to Alcatel’s technical support, open a new case or access helpful release notes, technical bulletins, and manuals.
  • Page 3 This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions in this guide, may cause interference to radio communications. Operation of this equipment in a residential area is likely to cause interference, in which case the user will be required to correct the interference at his own expense.
  • Page 4 Downloaded from www.Manualslib.com manuals search engine...
  • Page 5 It has been tested and found to comply with the limits for a Class A computing device pursuant to Subpart A of Part 15 of FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment.
  • Page 6 30% Reduction @500 ms, >95% Reduction @5000 ms) LVD: • EN60950-1 Caution: Do not plug a phone jack connector in the RJ-45 port. This may damage this device. Attention: Les raccordeurs ne sont pas utilisé pour le système téléphonique! Downloaded from www.Manualslib.com...
  • Page 7: Safety Compliance

    Safety Compliance Warning: Fiber Optic Port Safety When using a fiber optic port, never look at the transmit laser while it is CLASS I powered on. Also, never look directly at the fiber TX port and fiber cable LASER DEVICE ends when they are powered on.
  • Page 8 • Do not connect the unit to an A.C. outlet (power supply) without an earth (ground) connection. • The appliance coupler (the connector to the unit and not the wall plug) must have a configuration for mating with an EN 60320/IEC 320 appliance inlet.
  • Page 9 • Ne branchez pas votre appareil sur une prise secteur (alimentation électrique) lorsqu'il n'y a pas de connexion de mise à la terre (mise à la masse). • Vous devez raccorder ce groupe à une sortie mise à la terre (mise à la masse) afin de respecter les normes internationales de sécurité.
  • Page 10 • Der Gerätestecker (der Anschluß an das Gerät, nicht der Wandsteckdosenstecker) muß einen gemäß EN 60320/IEC 320 konfigurierten Geräteeingang haben. • Die Netzsteckdose muß in der Nähe des Geräts und leicht zugänglich sein. Die Stromversorgung des Geräts kann nur durch Herausziehen des Gerätenetzkabels aus der Netzsteckdose unterbrochen werden.
  • Page 11: Warnings And Cautionary Messages

    However, you should never look directly at a transmit port when it is powered on. Caution: Do not plug a phone jack connector in the RJ-45 port. This may damage this device. Les raccordeurs ne sont pas utilisé pour le système téléphonique! Caution: Use only twisted-pair cables with RJ-45 connectors that conform to FCC standards.
  • Page 12 Die Netzanschlu ßsteckdose soll nahe dem Gerät angebracht und leicht zugänglich sein. Das Gerät ist vor Feuchtigkeit zu schützen. Bei der Aufstellung des Gerätes ist auf sicheren Stand zu achten. Ein Kippen oder Fallen könnte Beschädigungen hervorrufen. Die Belüftungsöffnungen dienen der Luftzirkulation, die das Gerät vor Überhitzung schützt.
  • Page 13: Related Publications

    • Continual monitoring of safety standards. End of Product Life Span This product is manufactured in such a way as to allow for the recovery and disposal of all included electrical components once the product has reached the end of its life.
  • Page 14 Downloaded from www.Manualslib.com manuals search engine...
  • Page 15: Table Of Contents

    Optional Rack-Mounting Equipment 2-14 Mounting 2-15 Rack Mounting 2-15 Desktop or Shelf Mounting 2-16 Installing an Optional SFP Transceiver into the Switch 2-17 Connecting to a Power Source 2-17 Connecting the BPS to the Switch 2-18 Installation Instructions in German 2-18 Eine Site Auswählen...
  • Page 16 Contents 1000 Mbps Gigabit Ethernet Collision Domain 3-24 100 Mbps Fast Ethernet Collision Domain 3-25 10 Mbps Ethernet Collision Domain 3-25 Cable Labeling and Connection Records 3-26 Appendix A: Troubleshooting 4-27 Diagnosing Switch Indicators 4-27 Power and Cooling Problems 4-27...
  • Page 17 RJ-45 Connections ....................2-14 Attaching the Brackets ..................2-15 Installing the Switch in a Rack ................2-16 Attaching the Adhesive Feet ................2-16 Inserting an SFP Transceiver into a Slot .............2-17 Power Receptacle ....................2-18 Making Twisted-Pair Connections ...............3-21 Network Wiring Connections ................3-22 Making LC Port Connections ................3-23 RJ-45 Connector Pin Numbers ................5-29...
  • Page 18 Figures Downloaded from www.Manualslib.com manuals search engine...
  • Page 19 Tables Port Status LEDs ....................1-8 System Status LEDs ....................1-9 Maximum 1000BASE-T Gigabit Ethernet Cable Length ........3-24 Maximum 1000BASE-SX Gigabit Ethernet Cable Length ........3-24 Maximum 1000BASE-LX Gigabit Ethernet Cable Length ........3-24 Maximum Fast Ethernet Cable Distance .............3-25 Maximum Ethernet Cable Distance ..............3-25 Troubleshooting Chart ..................4-27...
  • Page 20 Tables Downloaded from www.Manualslib.com manuals search engine...
  • Page 21: Chapter 1: Introduction

    • OS-LS-6224-DC – 24 RJ-45 10/100Base-TX ports, two Gigabit combo uplink ports (with SFP or 10/100/1000Base-TX interfaces) and two ports full-duplex Gigabit stacking. In addition, the OS-LS-6224 -DC is powered by a DC power source rather than an AC. • OS-LS-6248-DC – 48 RJ-45 10/100Base-TX ports, two Gigabit combo uplink ports (with SFP or 10/100/1000Base-TX interfaces) and two ports full-duplex Gigabit stacking.
  • Page 22: Switch Architecture

    10/100/1000BASE-T Ports There are two types of RJ-45 ports, Ethernet ports that operate at 10 Mbps, 100 Mbps or 1000 Mbps, half or full duplex, and Fiber ports that operate at 1000 Mbps, full duplex. Because all ports on this switch support automatic MDI/MDI-X operation, you can use straight-through cables for all network connections to PCs or servers, or to other switches or hubs.
  • Page 23: Sfp Slots

    SFP transceiver (purchased separately) is installed in a slot and has a valid link on its port, the associated RJ-45 port is disabled and cannot be used. The switch can also be configured to force the use of an RJ-45 port or SFP slot, as required.
  • Page 24: Status Leds

    Introduction Status LEDs The LEDs, which are located on the front panel for easy viewing, are shown below and described in the following table. Figure 1-2. Port LEDs Figure 1-3. Combo Port LEDs Table 1-1. Port Status LEDs Port Status LEDs...
  • Page 25: System Leds

    Stack in normal operating state (Master Unit) Green Blinking Master Unit is initiating stack (Master Unit) Amber Stack in normal operating state (Stack Member Unit) Amber Flashing Master Unit is initiating stack (Stack Member Unit) Figure 1-4. System LEDs Table 1-2. System Status LEDs...
  • Page 26 10 seconds stets the mode automatically. Note: When the OS6200 is in stand-alone mode, the "stack" LED is off.If the switch is in stacking mode, the LED flashes green or amber (green for master, and amber for backup or slave).
  • Page 27: Optional Backup Power Supply

    Optional Backup Power Supply The switch supports an optional Backup Power Supply (BPS), that can supply power to the switch in the event of failure of the internal power supply. The U24 device support three kind of BPS: • 100W — OS-LS-62BP-DC —OS LS-6200 modular DC backup power supply.
  • Page 28: Features And Benefits

    • Independent RJ-45 10/100BASE-T and RJ-45 10/100/1000BASE-T ports with auto MDI/MDI-X pinout selection. • Unshielded (UTP) cable supported on all RJ-45 ports: Category 3, 4 or 5 for 10 Mbps connections, Category 5 or 5e for 100 Mbps connections, and Category 5 or better for 1000 Mbps connections.
  • Page 29: Chapter 2: Installing The Switch

    • Make sure that the unit is connected to a separate grounded power outlet that provides 100 to 240 VAC, 50 to 60 Hz, is within 2.44 m (8 feet) of each device and is powered from an independent circuit breaker. As with any equipment, using a filter or surge suppressor is recommended.
  • Page 30: Equipment Checklist

    RJ-45 Connector Figure 2-1. RJ-45 Connections Equipment Checklist After unpacking the switch, check the contents to be sure you have received all the components. Then, before beginning the installation, be sure you have all other necessary installation equipment. Package Contents •...
  • Page 31: Mounting

    Mounting Mounting A switch unit can be mounted in a standard 19-inch equipment rack or on a desktop or shelf. Mounting instructions for each type of site follow. Rack Mounting Before rack mounting the switch, pay particular attention to the following factors: •...
  • Page 32: Desktop Or Shelf Mounting

    Mount the device in the rack, using rack-mounting screws (not provided). Figure 2-3. Installing the Switch in a Rack If installing a single switch only, turn to “Connecting to a Power Source” at the end of this chapter. If installing multiple switches, mount them in the rack, one below the other, in any order.
  • Page 33: Installing An Optional Sfp Transceiver Into The Switch

    Connecting to a Power Source are at least two inches of space on all sides for proper air flow. If installing a single switch only, go to “Connecting to a Power Source” at the end of this chapter. If installing multiple switches, attach four adhesive feet to each one. Place each device squarely on top of the one below, in any order.
  • Page 34: Connecting The Bps To The Switch

    Plug the other end of the cable into a grounded, 3-pin socket. Note: For International use, you may need to change the AC line cord. You must use a line cord set that has been approved for the receptacle type in your country.
  • Page 35: Montage

    Installation Instructions in German • Imstande sein, eine Temperatur zwischen 0 und 45 °C (32 und 113 °FF) und eine Feuchtigkeit innerhalb von 5% bis 95% (nichtkondensierend) beizubehalten; • In einem genügend weiten Abstand (ungefähr 5 cm oder zwei Zoll) von allen Seiten fur eine ausreichende Beluftung aufgestellt werden;...
  • Page 36 Installing the Switch Wenn Sie mehrere Switches installieren möchten, dann montieren Sie sie untereinander in einer beliebigen Reihenfolge. 2-20 Downloaded from www.Manualslib.com manuals search engine...
  • Page 37: Chapter 3: Making Network Connections

    This switch is designed to interconnect multiple segments (or collision domains). It can be connected to network cards in PCs and servers, as well as to hubs, switches or routers. It may also be connected to devices using optional SFP transceivers.
  • Page 38: Network Wiring Connections

    Making Network Connections If the device is a PC card and the switch is in the wiring closet, attach the other end of the cable segment to a modular wall outlet that is connected to the wiring closet. (See “Wiring Closet Connections” on the next page.) Otherwise, attach the other end to an available port on the switch.
  • Page 39: Fiber Optic Sfp Devices

    Connect one end of the cable to the LC port on the switch and the other end to the LC port on the other device. Since LC connectors are keyed, the cable can be attached in only one orientation.
  • Page 40: Connectivity Rules

    Category 5e specification includes test parameters that are only recommendations for Category 5. Therefore, the first step in preparing existing Category 5 cabling for running 1000BASE-T is a simple test of the cable installation to be sure that it complies with the IEEE 802.3ab standards.
  • Page 41: 100 Mbps Fast Ethernet Collision Domain

    Table 3-4. Maximum Fast Ethernet Cable Distance Type Cable Type Max. Cable Length Connector 100BASE-TX Category 5 or better 100-ohm UTP or STP 100 m (328 ft) RJ-45 10 Mbps Ethernet Collision Domain Table 3-5. Maximum Ethernet Cable Distance Cable Type...
  • Page 42: Cable Labeling And Connection Records

    Cable Labeling and Connection Records When planning a network installation, it is essential to label the opposing ends of cables and to record where each cable is connected. Doing so will enable you to easily locate inter-connected devices, isolate faults and change your topology without need for unnecessary time consumption.
  • Page 43: Appendix A: Troubleshooting

    • If the condition does not clear, contact your dealer for assistance. Power and Cooling Problems If the power indicator does not turn on when the power cord is plugged in, you may have a problem with the power outlet, power cord, or internal power supply.
  • Page 44 IP address. Also, be sure the port through which you are connecting to the switch has not been disabled. If it has not been disabled, then check the network cabling that runs between your remote location and the switch.
  • Page 45: Appendix B: Cables

    PCs or servers, or to other switches or hubs. In straight-through cable, pins 1, 2, 3, and 6, at one end of the cable, are connected straight through to pins 1, 2, 3, and 6 at the other end of the cable.
  • Page 46: 1000Base-T Pin Assignments

    Receive Data minus (RD-) Not used Not used 4,5,7,8 Note: The “+” and “-” signs represent the polarity of the wires that make up each wire pair. 1000BASE-T Pin Assignments All 1000BASE-T ports support automatic MDI/MDI-X operation, so you can use straight-through cables for all network connections to PCs or servers, or to other switches or hubs.
  • Page 47: Fiber Standards

    Adjusting Existing Category 5 Cabling to Run 1000BASE-T If your existing Category 5 installation does not meet one of the test parameters for 1000BASE-T, there are basically three measures that can be applied to try and...
  • Page 48 Cables B-32 Downloaded from www.Manualslib.com manuals search engine...
  • Page 49: Appendix C: Specifications

    Maximum Cable Length - 100 m (328 ft) 100BASE-TX: RJ-45 (100-ohm, UTP cable; Category 5) Maximum Cable Length - 100 m (328 ft) 1000BASE-T: RJ-45 (100-ohm, UTP or STP cable; Category 5, 5e, or 6) Maximum Cable Length - 100 m (328 ft) Buffer Architecture...
  • Page 50 Size Non PoE Devices OS-LS-6212 – 440mm x 230mm x 44mm (17.37" x 9.06" x 1.73") OS-LS-6224 – 440mm x 230mm x 44mm (17.37" x 9.06" x 1.73") OS-LS-6224U – 440mm x 230mm x 44mm (17.37" x 9.06" x 1.73") OS-LS-6248 –...
  • Page 51: Compliances

    OS-LS-62BP — 126W, 100-240VAC 2-1A. OS-LS-62BP-P — 510W, 100-240VAC 10 - 5A. OS-LS-62BP-DC — 100W, 40-72V 3.2-1.8A (Powered by DC only). Physical Dimensions — 160mm x 320mm x 40mm (6.2” x 12.6”x 1.6”) Power Consumption OS-LS-6212 – 26.19 Watts at 85% efficiency OS-LS-6224 –...
  • Page 52 Specifications C-36 Downloaded from www.Manualslib.com manuals search engine...
  • Page 53: Glossary

    Glossary 10BASE-T IEEE 802.3 specification for 10 Mbps Ethernet over two pairs of Category 3, 4, or 5 UTP cable. 1000BASE-LX IEEE 802.3z specification for Gigabit Ethernet over two strands of 50/125, 62.5/125 or 9/125 micron core fiber cable. 1000BASE-SX IEEE 802.3z specification for Gigabit Ethernet over two strands of 50/125 or 62.5/125...
  • Page 54 A network communication system developed and standardized by DEC, Intel, and Xerox, using baseband transmission, CSMA/CD access, logical bus topology, and coaxial cable. The successor IEEE 802.3 standard provides for integration into the OSI model and extends the physical layer and media with repeaters and implementations that operate on fiber, thin coax and twisted-pair cable.
  • Page 55 Unshielded twisted-pair cable. Virtual LAN (VLAN) A Virtual LAN is a collection of network nodes that share the same collision domain regardless of their physical location or connection point in the network. A VLAN serves as a logical workgroup with no physical barriers, allowing users to share information and resources as though located on the same LAN.
  • Page 56 Glossary Glossary-40 Downloaded from www.Manualslib.com manuals search engine...
  • Page 57 2-16 labeling and connection records 3-26 port connections 3-21 cleaning fiber terminators 3-23 power requirements 2-13 Connecting the BPS to the Switch 2-18 problems 4-27 connectivity rules rack mounting 2-15 10 Mbps 3-25 site requirements 2-13...
  • Page 58 2-14 Web-based 1-6 site selelction 2-13 mounting the switch SNMP agent 1-6 in a rack 2-15 specifications on a desktop or shelf 2-16 compliances 6-36 multimode fiber optic cables 3-23 environmental 6-35 physical 6-33 power 6-35 standards, compliance 6-36...
