Alcatel Omni Switch/Router User Manual page 98

WAN Modules
(Status). On Green con-
tinuously when the port con-
nection is operational. Off
when the port is disabled or
the cable is detached. Blink-
ing On/Off if cable is attached
but receive control data is
detected as down.
This LED also blinks during
initialization, diagnostics, or
when invalid data is being
exchanged on the port.
( T r a n s m i t ) . O n " h a l f -
bright" Green when idle and
Green with occasional flickers
when the port is transmitting
data.
(Receive). On "half-bright"
Green when idle and Green
with occasional flickers when
the corresponding port is
receiving data.
Page 3-28

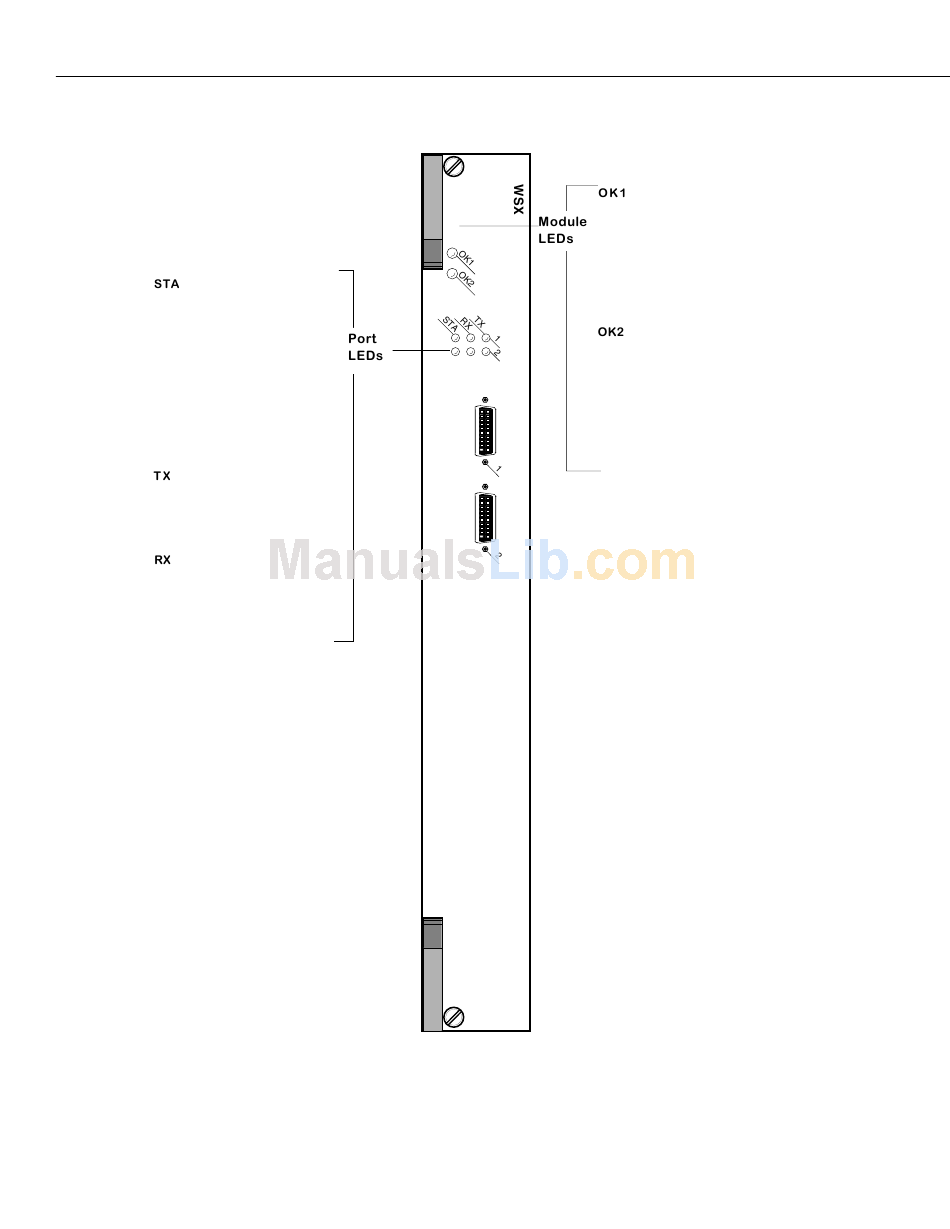

2-Port WAN Frame Relay Switching Module
(Hardware Status). On
Green when the module has
passed diagnostic tests success-
fully. On Amber when the
hardware has failed diagnos-
tics or if the corresponding
image file for the module is not
in flash memory.
(Software Status). Blinking
Green when the module soft-
ware was downloaded success-
f u l l y a n d t h e m o d u l e i s
communicating with the
MPX
Blinking Amber when the mod-
ule is in a transitional state. On
solid Amber if the module
failed to download software
from the .
MPX
.
