Application Examples

Combined Frame Relay with ISDN Backup

In a typical configuration, the

occupies either a slot in a switch chassis or a submodule

on an OmniAccess 512. Because it is compatible with Omni Switch/Router any-to-any

switching and

architecture, you can switch other topologies in the

to Frame Relay

connects to a

or T1 multiplexer through a serial cable. The

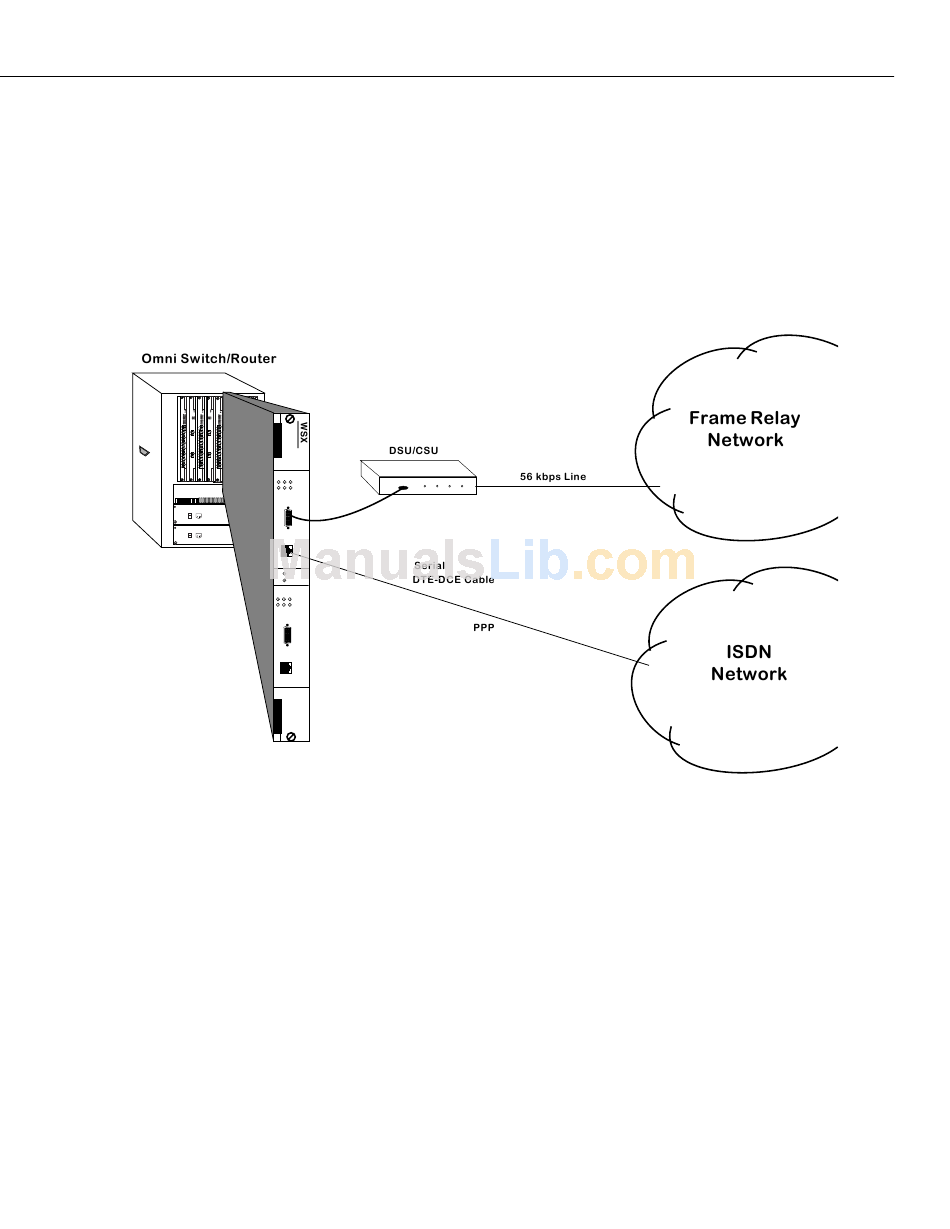

following diagram shows a typical

setup using a 56 kbps Frame Relay line (up to 2 Mbps

access rates are supported)

Refer to the Chapter 29, "Managing Frame Relay," and Chapter 56, "Backup Services," for

details on how to implement this configuration.34
