ADV8003 Hardware Manual

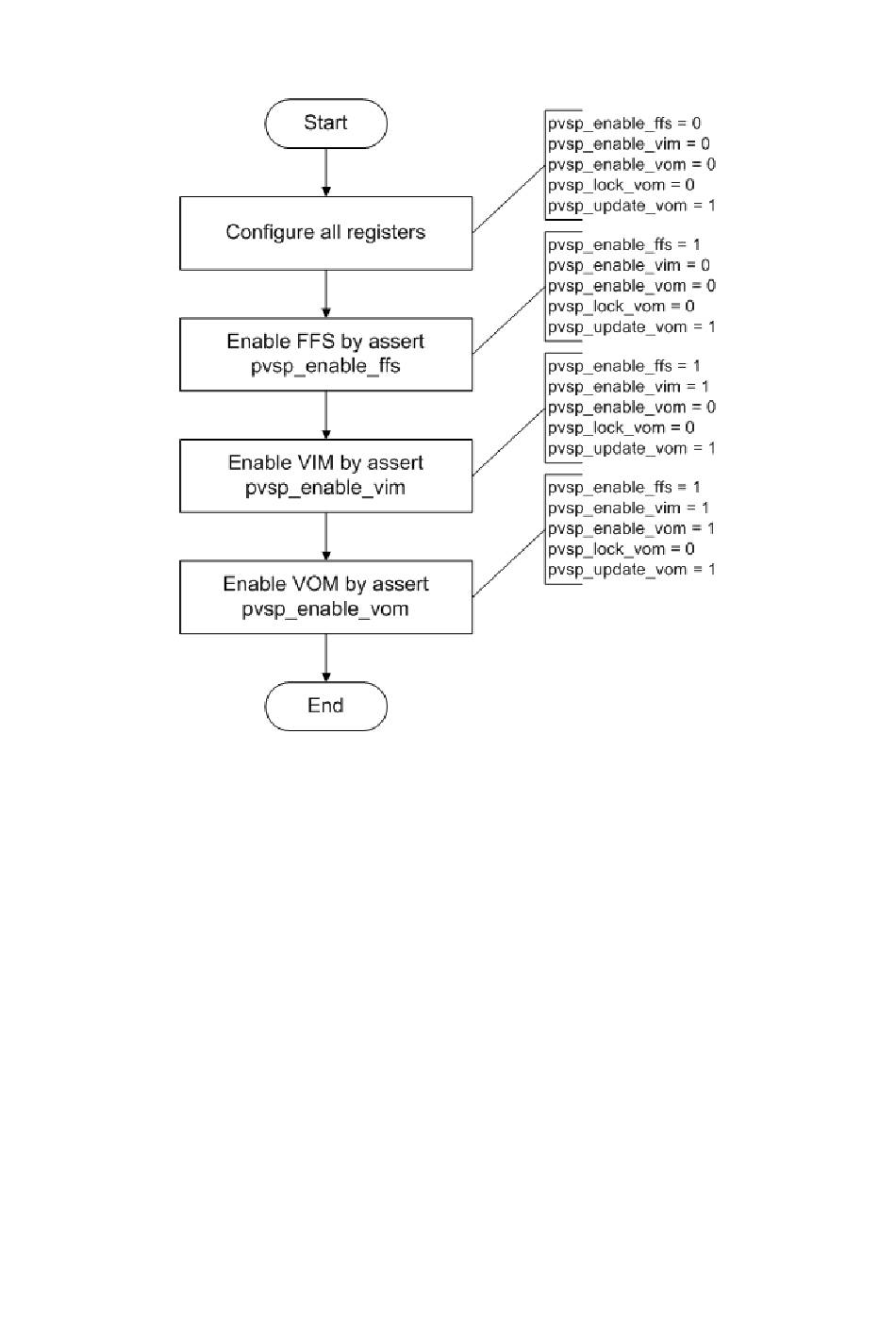

Figure 67: Bootup Protocol Flowchart

Figure 67
shows the process for the bootup protocol for the PVSP. This is exactly the same for the SVSP with the appropriate registers
replaced.
3.4.2.

Reboot Protocol

The reboot protocol is used to reset the PVSP and configure it again using different settings, especially different input timing or output
timing. All registers can be accessed using this protocol. It should be noted that the output video will be interrupted using this protocol.
Rev. B, August 2013
203
