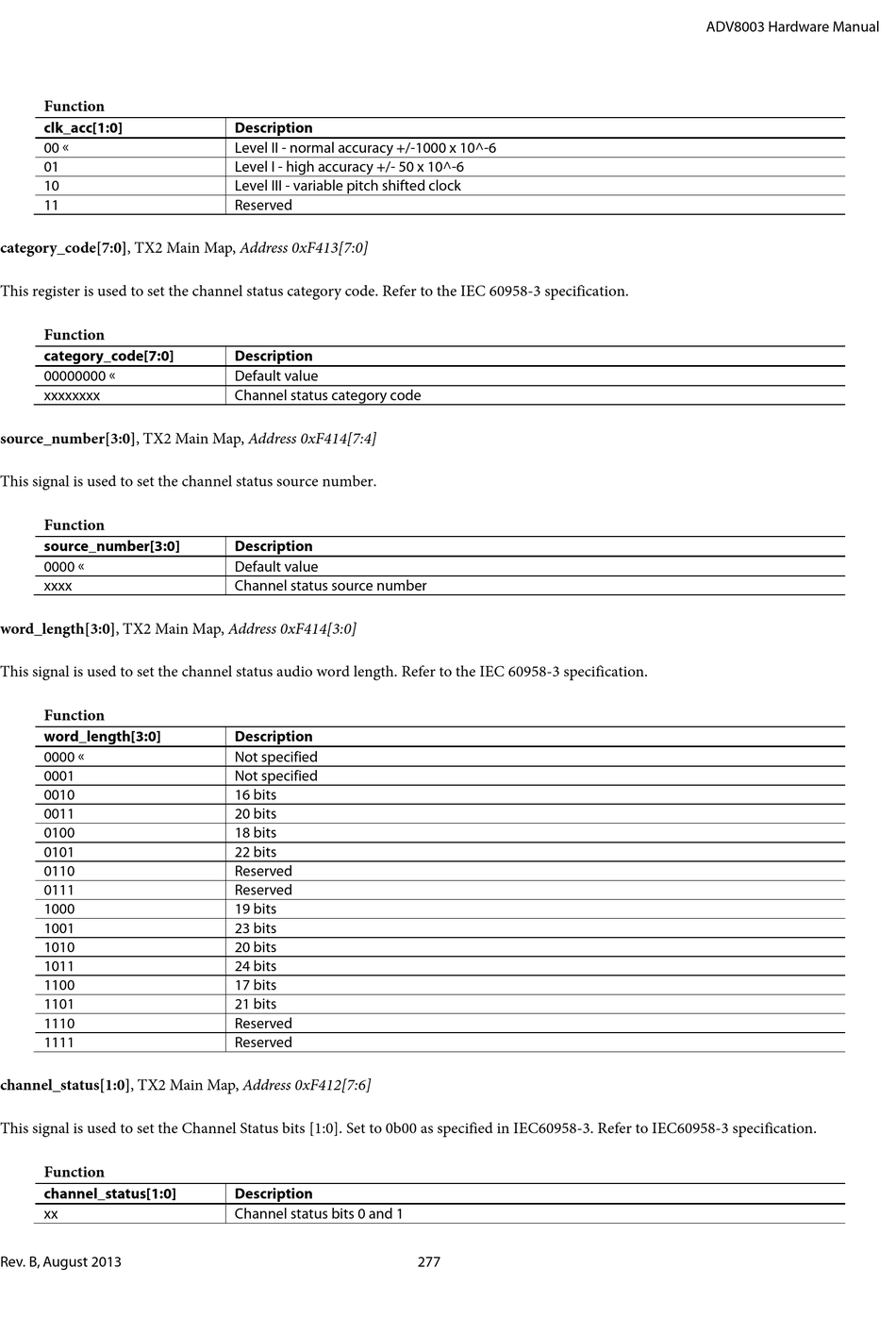

Analog Devices ADV8003 Hardware Manual page 277

Function
clk_acc[1:0]
00 
01
10
11
category_code[7:0], TX2 Main Map, Address 0xF413[7:0]
This register is used to set the channel status category code. Refer to the IEC 60958-3 specification.
Function
category_code[7:0]
00000000 
xxxxxxxx
source_number[3:0], TX2 Main Map, Address 0xF414[7:4]
This signal is used to set the channel status source number.
Function
source_number[3:0]
0000 
xxxx
word_length[3:0], TX2 Main Map, Address 0xF414[3:0]
This signal is used to set the channel status audio word length. Refer to the IEC 60958-3 specification.
Function
word_length[3:0]
0000 
0001
0010
0011
0100
0101
0110
0111
1000
1001
1010
1011
1100
1101
1110
1111
channel_status[1:0], TX2 Main Map, Address 0xF412[7:6]
This signal is used to set the Channel Status bits [1:0]. Set to 0b00 as specified in IEC60958-3. Refer to IEC60958-3 specification.
Function
channel_status[1:0]
xx
Rev. B, August 2013
Description
Level II - normal accuracy +/-1000 x 10^-6
Level I - high accuracy +/- 50 x 10^-6
Level III - variable pitch shifted clock
Reserved
Description
Default value
Channel status category code
Description
Default value
Channel status source number
Description
Not specified
Not specified
16 bits
20 bits
18 bits
22 bits
Reserved
Reserved
19 bits
23 bits
20 bits
24 bits
17 bits
21 bits
Reserved
Reserved
Description
Channel status bits 0 and 1
