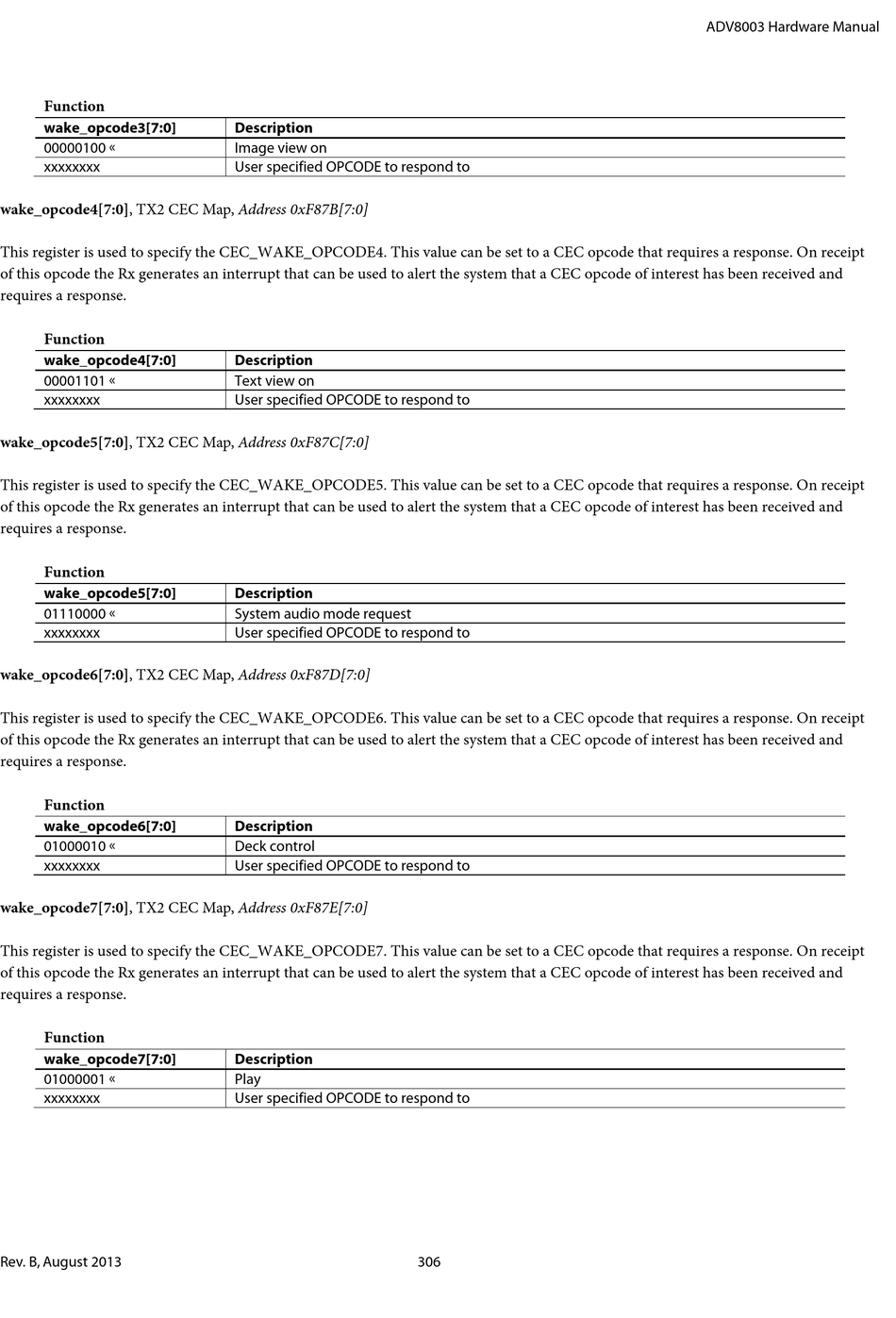

Analog Devices ADV8003 Hardware Manual page 306

Function
wake_opcode3[7:0]
00000100 
xxxxxxxx
wake_opcode4[7:0], TX2 CEC Map, Address 0xF87B[7:0]
This register is used to specify the CEC_WAKE_OPCODE4. This value can be set to a CEC opcode that requires a response. On receipt
of this opcode the Rx generates an interrupt that can be used to alert the system that a CEC opcode of interest has been received and
requires a response.
Function
wake_opcode4[7:0]
00001101 
xxxxxxxx
wake_opcode5[7:0], TX2 CEC Map, Address 0xF87C[7:0]
This register is used to specify the CEC_WAKE_OPCODE5. This value can be set to a CEC opcode that requires a response. On receipt
of this opcode the Rx generates an interrupt that can be used to alert the system that a CEC opcode of interest has been received and
requires a response.
Function
wake_opcode5[7:0]
01110000 
xxxxxxxx
wake_opcode6[7:0], TX2 CEC Map, Address 0xF87D[7:0]
This register is used to specify the CEC_WAKE_OPCODE6. This value can be set to a CEC opcode that requires a response. On receipt
of this opcode the Rx generates an interrupt that can be used to alert the system that a CEC opcode of interest has been received and
requires a response.
Function
wake_opcode6[7:0]
01000010 
xxxxxxxx
wake_opcode7[7:0], TX2 CEC Map, Address 0xF87E[7:0]
This register is used to specify the CEC_WAKE_OPCODE7. This value can be set to a CEC opcode that requires a response. On receipt
of this opcode the Rx generates an interrupt that can be used to alert the system that a CEC opcode of interest has been received and
requires a response.
Function
wake_opcode7[7:0]
01000001 
xxxxxxxx
Rev. B, August 2013
Description
Image view on
User specified OPCODE to respond to
Description
Text view on
User specified OPCODE to respond to
Description
System audio mode request
User specified OPCODE to respond to
Description
Deck control
User specified OPCODE to respond to
Description
Play
User specified OPCODE to respond to
306
ADV8003 Hardware Manual
