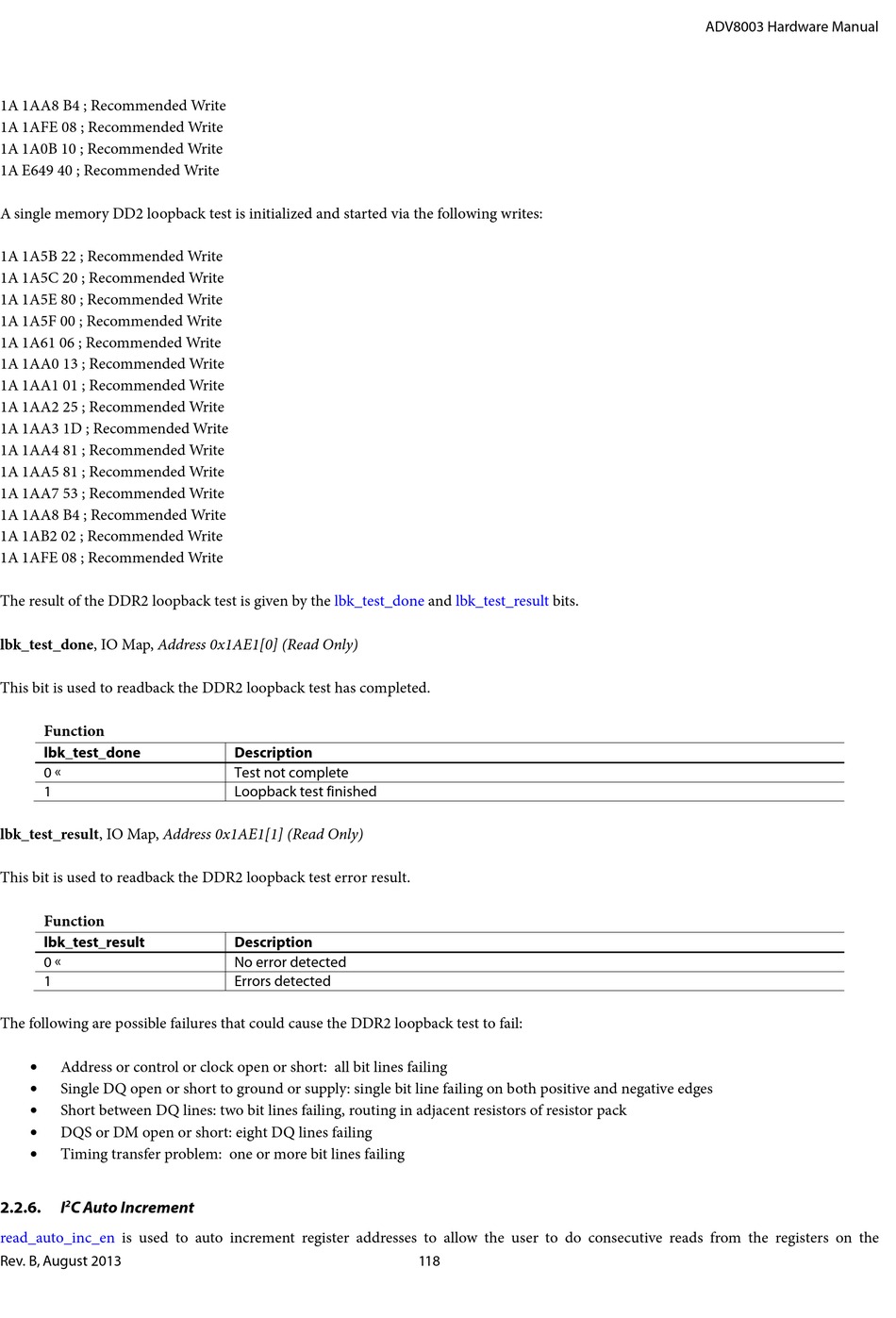

1A 1AA8 B4 ; Recommended Write
1A 1AFE 08 ; Recommended Write
1A 1A0B 10 ; Recommended Write
1A E649 40 ; Recommended Write
A single memory DD2 loopback test is initialized and started via the following writes:
1A 1A5B 22 ; Recommended Write
1A 1A5C 20 ; Recommended Write
1A 1A5E 80 ; Recommended Write
1A 1A5F 00 ; Recommended Write
1A 1A61 06 ; Recommended Write
1A 1AA0 13 ; Recommended Write
1A 1AA1 01 ; Recommended Write
1A 1AA2 25 ; Recommended Write
1A 1AA3 1D ; Recommended Write
1A 1AA4 81 ; Recommended Write
1A 1AA5 81 ; Recommended Write
1A 1AA7 53 ; Recommended Write
1A 1AA8 B4 ; Recommended Write
1A 1AB2 02 ; Recommended Write
1A 1AFE 08 ; Recommended Write
The result of the DDR2 loopback test is given by the
lbk_test_done, IO Map, Address 0x1AE1[0] (Read Only)
This bit is used to readback the DDR2 loopback test has completed.
Function
lbk_test_done
0 
1
lbk_test_result, IO Map, Address 0x1AE1[1] (Read Only)
This bit is used to readback the DDR2 loopback test error result.
Function
lbk_test_result
0 
1
The following are possible failures that could cause the DDR2 loopback test to fail:
• Address or control or clock open or short: all bit lines failing
• Single DQ open or short to ground or supply: single bit line failing on both positive and negative edges
• Short between DQ lines: two bit lines failing, routing in adjacent resistors of resistor pack
• DQS or DM open or short: eight DQ lines failing
• Timing transfer problem: one or more bit lines failing
2.2.6. I C Auto Increment
2
read_auto_inc_en is used to auto increment register addresses to allow the user to do consecutive reads from the registers on the
Rev. B, August 2013
lbk_test_done
Description
Test not complete
Loopback test finished
Description
No error detected
Errors detected
and lbk_test_result bits.
