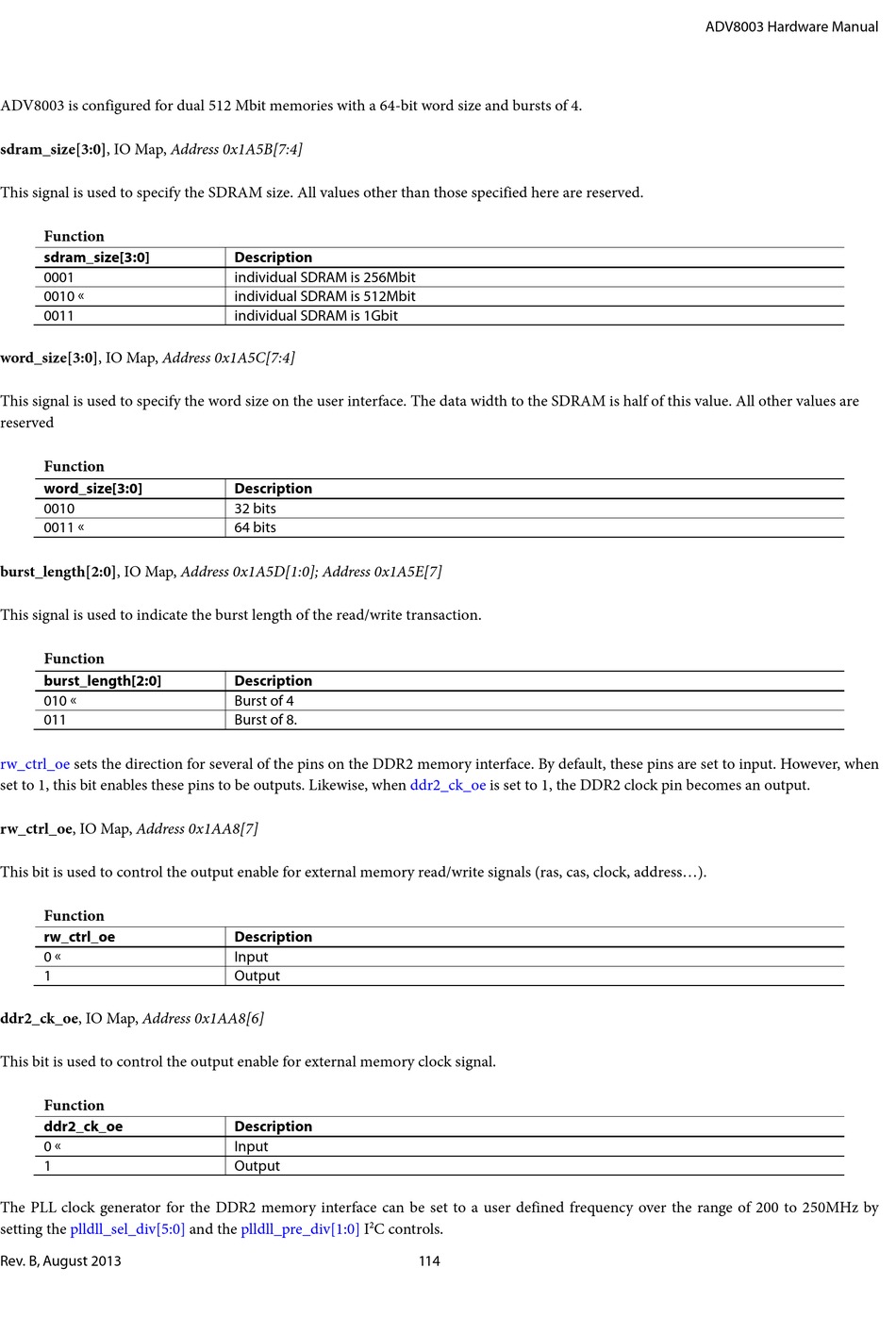

Analog Devices ADV8003 Hardware Manual page 114

ADV8003 is configured for dual 512 Mbit memories with a 64-bit word size and bursts of 4.
sdram_size[3:0], IO Map, Address 0x1A5B[7:4]
This signal is used to specify the SDRAM size. All values other than those specified here are reserved.
Function
sdram_size[3:0]
0001
0010 
0011
word_size[3:0], IO Map, Address 0x1A5C[7:4]
This signal is used to specify the word size on the user interface. The data width to the SDRAM is half of this value. All other values are
reserved
Function
word_size[3:0]
0010
0011 
burst_length[2:0], IO Map, Address 0x1A5D[1:0]; Address 0x1A5E[7]
This signal is used to indicate the burst length of the read/write transaction.
Function
burst_length[2:0]
010 
011
rw_ctrl_oe sets the direction for several of the pins on the DDR2 memory interface. By default, these pins are set to input. However, when
set to 1, this bit enables these pins to be outputs. Likewise, when
rw_ctrl_oe, IO Map, Address 0x1AA8[7]
This bit is used to control the output enable for external memory read/write signals (ras, cas, clock, address...).
Function
rw_ctrl_oe
0 
1
ddr2_ck_oe, IO Map, Address 0x1AA8[6]
This bit is used to control the output enable for external memory clock signal.
Function
ddr2_ck_oe
0 
1
The PLL clock generator for the DDR2 memory interface can be set to a user defined frequency over the range of 200 to 250MHz by
setting the plldll_sel_div[5:0]
Rev. B, August 2013
Description
individual SDRAM is 256Mbit
individual SDRAM is 512Mbit
individual SDRAM is 1Gbit
Description
32 bits
64 bits
Description
Burst of 4
Burst of 8.
Description
Input
Output
Description
Input
Output
and the plldll_pre_div[1:0]
ddr2_ck_oe is set to 1, the DDR2 clock pin becomes an output.
I 2 C controls.
