3.4.4.

VOM Set Protocol

The VOM set protocol is used to configure the VOM. The registers in the VOM can be accessed without affecting the output video timing.
Figure 70 shows the process for the VOM set protocol for the PVSP. This is exactly the same for the SVSP with the appropriate registers
replaced.
3.4.5.

Free Access Protocol

The free access protocol allows the user to configure all VSP registers regardless of the current configuration of the device. This can be
seen in Figure 71.
Rev. B, August 2013

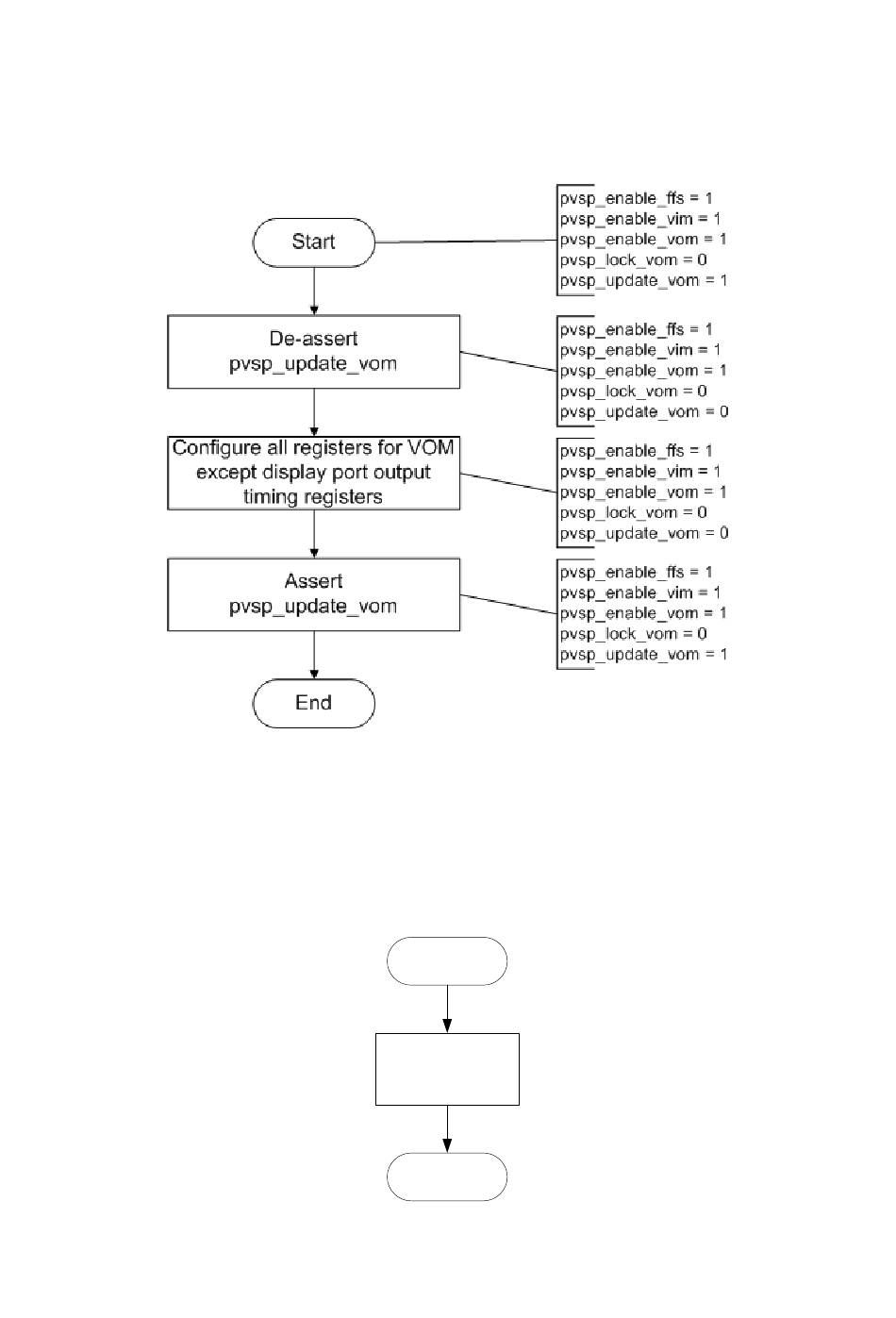

Figure 70: VOM Set Protocol Flowchart

Start
Configure
register
End

Figure 71: Free Access Protocol
