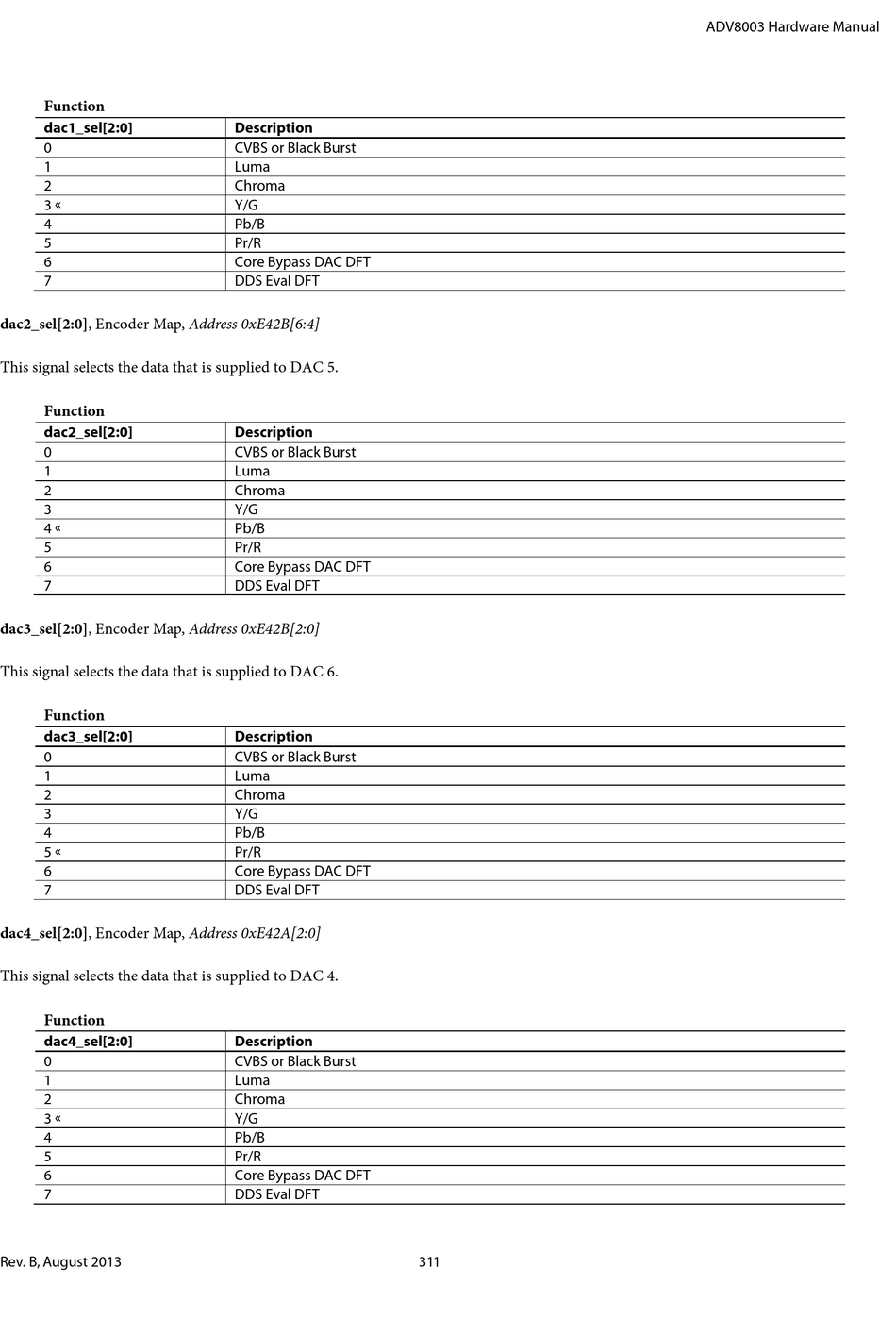

Analog Devices ADV8003 Hardware Manual page 311

Function
dac1_sel[2:0]
0
1
2
3 
4
5
6
7
dac2_sel[2:0], Encoder Map, Address 0xE42B[6:4]
This signal selects the data that is supplied to DAC 5.
Function
dac2_sel[2:0]
0
1
2
3
4 
5
6
7
dac3_sel[2:0], Encoder Map, Address 0xE42B[2:0]
This signal selects the data that is supplied to DAC 6.
Function
dac3_sel[2:0]
0
1
2
3
4
5 
6
7
dac4_sel[2:0], Encoder Map, Address 0xE42A[2:0]
This signal selects the data that is supplied to DAC 4.
Function
dac4_sel[2:0]
0
1
2
3 
4
5
6
7
Rev. B, August 2013
Description
CVBS or Black Burst
Luma
Chroma
Y/G
Pb/B
Pr/R
Core Bypass DAC DFT
DDS Eval DFT
Description
CVBS or Black Burst
Luma
Chroma
Y/G
Pb/B
Pr/R
Core Bypass DAC DFT
DDS Eval DFT
Description
CVBS or Black Burst
Luma
Chroma
Y/G
Pb/B
Pr/R
Core Bypass DAC DFT
DDS Eval DFT
Description
CVBS or Black Burst
Luma
Chroma
Y/G
Pb/B
Pr/R
Core Bypass DAC DFT
DDS Eval DFT
311
ADV8003 Hardware Manual
