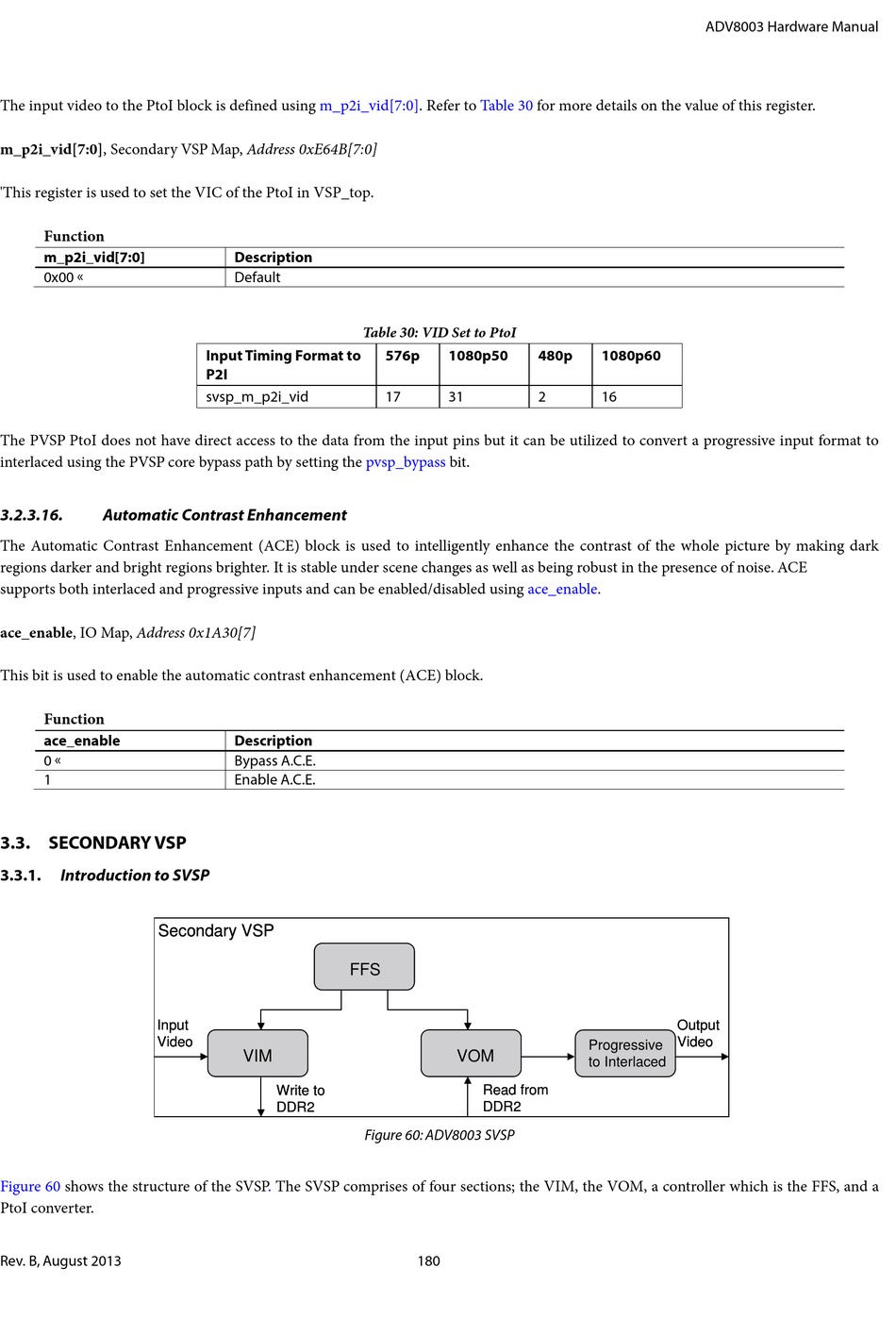

The input video to the PtoI block is defined using m_p2i_vid[7:0]. Refer to
m_p2i_vid[7:0], Secondary VSP Map, Address 0xE64B[7:0]
'This register is used to set the VIC of the PtoI in VSP_top.
Function
m_p2i_vid[7:0]
0x00
The PVSP PtoI does not have direct access to the data from the input pins but it can be utilized to convert a progressive input format to
interlaced using the PVSP core bypass path by setting the
3.2.3.16.
Automatic Contrast Enhancement
The Automatic Contrast Enhancement (ACE) block is used to intelligently enhance the contrast of the whole picture by making dark
regions darker and bright regions brighter. It is stable under scene changes as well as being robust in the presence of noise. ACE
supports both interlaced and progressive inputs and can be enabled/disabled using ace_enable.
ace_enable, IO Map, Address 0x1A30[7]
This bit is used to enable the automatic contrast enhancement (ACE) block.
Function
ace_enable
0
1
3.3. SECONDARY VSP
3.3.1.
Introduction to SVSP
Secondary VSP
Secondary VSP
Input
Input
Video
Video
Figure 60
shows the structure of the
PtoI converter.
Rev. B, August 2013
Description
Default
Table 30: VID Set to PtoI
Input Timing Format to
P2I
svsp_m_p2i_vid
pvsp_bypass
Description
Bypass A.C.E.
Enable A.C.E.
FFS
FFS
VIM
VIM
Write to
Write to
DDR2
DDR2
Figure 60: ADV8003 SVSP
SVSP.
The SVSP comprises of four sections; the VIM, the VOM, a controller which is the FFS, and a
Table 30
for more details on the value of this register.
576p
1080p50
480p
17
31
2
bit.
VOM
VOM
Read from
Read from
DDR2
DDR2
180
ADV8003 Hardware Manual
1080p60
16
Output
Output
Video
Video
Progressive
Progressive
to Interlaced
to Interlaced
